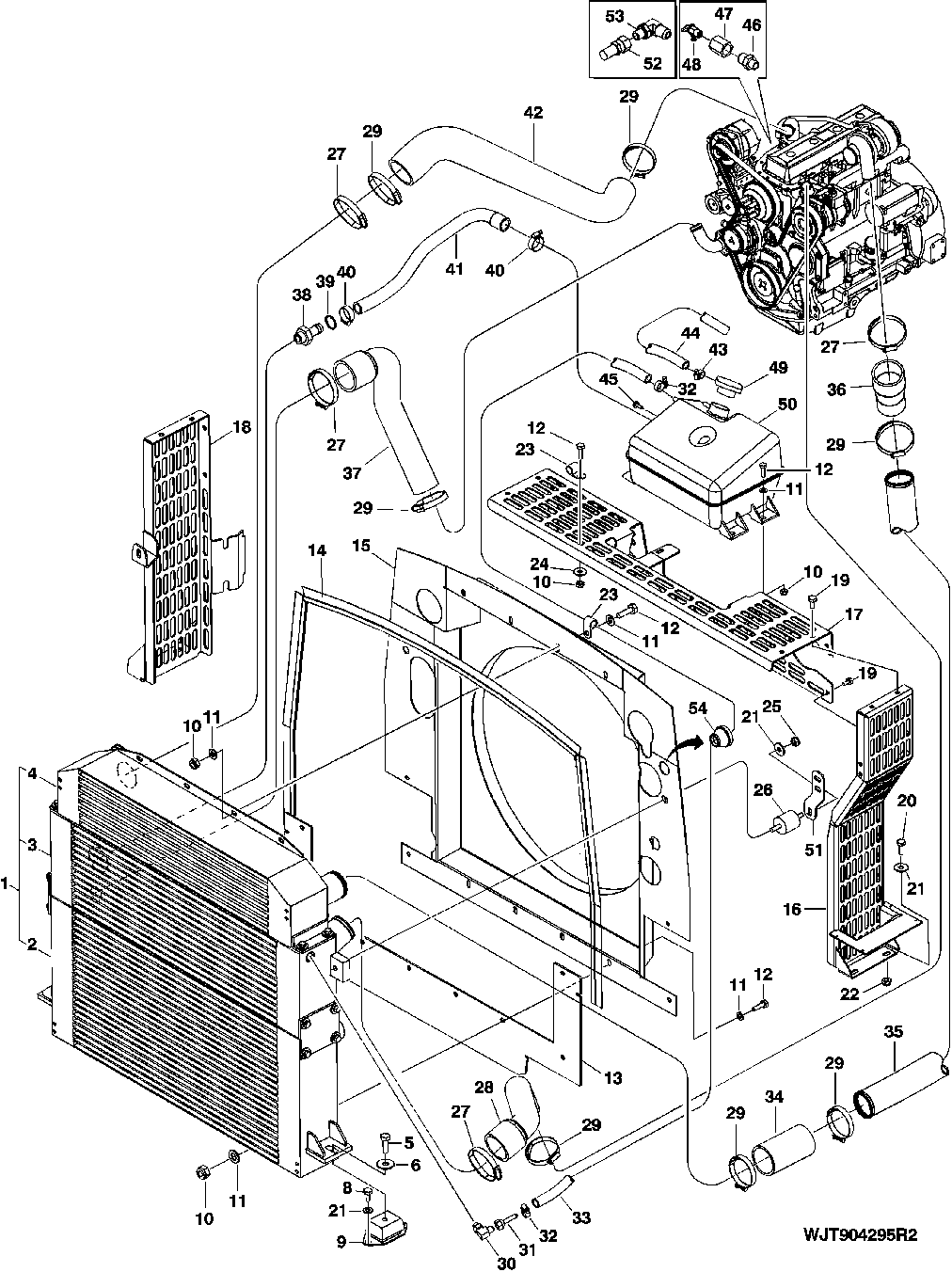

COOLING SYSTEM HOSES, FITTINGS, AND COMPONENTS [01H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F640391	1	Seal	L= 1100, MOUNTING BETWEEN COOLER ELEMENTS
1	F625211	1	RADIATOR	-
2	F063957	1	OIL COOLER	-
3	F063956	1	RADIATOR	-
4	F063955	1	AFTERCOOLER	-
5	19M9649	2	Cap Screw	M12 X 35
6	24M7493	2	Washer	13 X 37 X 3 MM
8	19M9698	4	Screw	M10 X 25
9	F048323	2	Torsional Damper	-
10	F003587	17	LOCK NUT	-
11	24M7509	13	Washer	8.400 X 16 X 1.600 MM
12	19M9569	17	Screw	M8 X 25
13	F626189	1	SEAL	-
14	-	1	Part 14	F043143 X LENGTH
15	F624734	1	SHROUD	-
16	F626092	1	SHROUD	-
17	F626090	1	SHROUD	-
18	F626091	1	SHROUD	-
19	19M9567	12	Screw	M8 X 16
20	19M9639	4	Cap Screw	M10 X 25
21	24M7489	10	Washer	10.500 X 30 X 2.500 MM
22	F003588	8	LOCK NUT	M10
23	F046452	4	Hose Support	-
24	24M7508	6	Washer	8.400 X 24 X 2 MM
25	14M7614	6	Nut	M10
26	F040593	2	Torsional Damper	-
27	F062673	4	Hose Clamp	-
28	F623260	1	HOSE	-
29	F062672	4	Hose Clamp	-
30	F024599	1	Elbow Fitting	-
31	F063402	1	Fitting	-
32	F003668	2	Hose Clamp	-
33	F625541	1	HOSE	-
34	F625338	1	Hose	-
35	F626103	1	PIPE	-
36	F619954	1	Hose	-
37	F623259	1	RADIATOR HOSE	-
38	F036438	1	Fitting	-
39	F018108	1	Washer	-
40	F003671	2	HOSE CLAMP	-
41	F626347	1	HOSE	-
42	F624800	1	HOSE	-
43	F003667	1	HOSE CLAMP	-
44	F030381	1	HOSE	-
45	37M7424	1	Screw	-
46	PMH1613	1	Adapter Fitting	-
47	F041348	1	Fitting	-
48	F057660	1	Drain Valve	-
49	F062646	1	FILLER CAP	-
50	F026697	1	EXPANSION TANK	-
51	F625444	2	BRACKET	-
52	X30682-10-10	2	HOSE FITTING	-
53	F062639	2	Elbow Fitting	-
54	F014883	1	Grommet	-
55	-	1	Part 55	F640391 X LENGHT
