Mountings, Hydrostatic Transmission Hoses

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

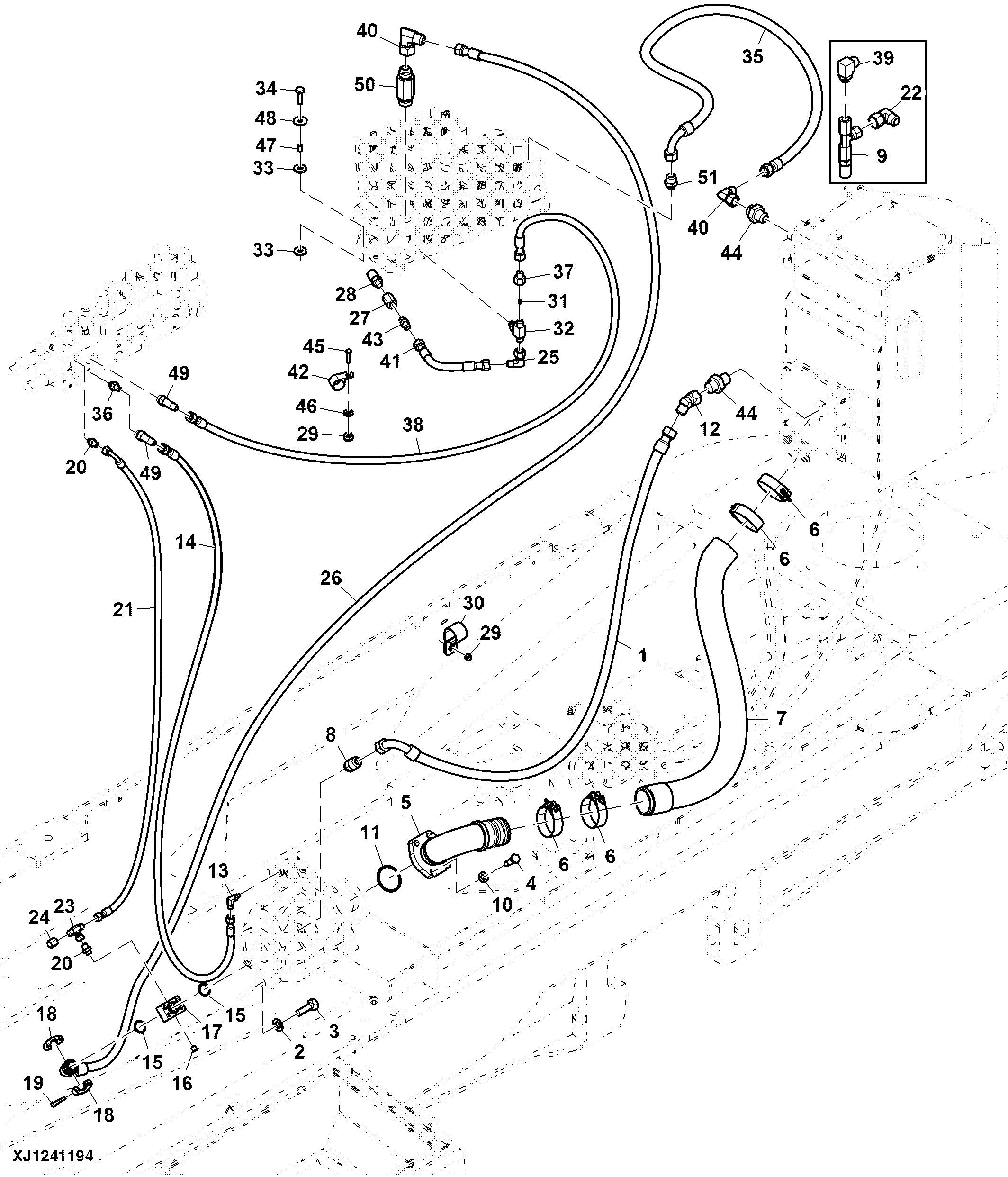

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F070662	1	Hydraulic Hose	LGTH = 1250 mm, Fabricate
2	24M7497	2	Washer	17 X 30 X 3 mm, SUB FOR F003341
3	F057111	2	SCREW	SUB FOR 19H3952
4	F003776	4	SCREW	SUB FOR 19H3942
5	F618169	1	PIPE	-
6	F012759	4	HOSE CLAMP	-
7	F020067	1	Hose	SUB FOR F059985
8	F002726	1	NIPPLE	-
9	-	1	Part 9	-
10	24M7491	4	Washer	13 X 24 X 2.500 mm, SUB FOR F003340
11	51M7066	1	O-Ring	56.744 X 3.531 mm, SUB FOR F003763
12	F005089	1	ELBOW NIPPLE	-
13	F056738	1	Elbow Fitting	-
14	F070422	1	Hydraulic Hose	LGTH = 600 mm, Fabricate, SUB FOR F046807
15	T78313	2	O-Ring	SUB FOR F003761
16	F003383	1	PLUG	-
17	F022012	1	FLANGE	-
18	F003758	2	Flange	-
19	F023648	4	SCREW	-
20	F005060	4	Fitting	-
21	F057583	1	Hydraulic Hose	LGTH = 750 mm, Fabricate
22	F005047	1	Elbow Fitting	-
23	F031738	1	Tee Fitting	-
24	F013269	1	Nut	-
25	F022417	1	Elbow Fitting	-
26	F056160	1	HYDRAULIC HOSE	LGTH = 1950 mm
27	F024364	1	Fitting	-
28	F023426	1	Fitting	-
29	14M7520	2	Lock Nut	M10, SUB FOR F003588
30	R46667	1	Clamp	SUB FOR F004423
31	TT224400	1	Orifice	-
32	F026606	1	TEE FITTING	-
33	F602701	6	Isolator	-
34	19M9683	3	Cap Screw	M8 X 25
35	F062820	1	HYDRAULIC HOSE - FABRICATE	LGTH = 600 mm, Fabricate
36	F005057	1	Fitting	-
37	F040264	2	Fitting	-
38	F029309	1	HOSE-ASSY	LGTH = 2000 mm
39	F025800	1	Elbow Fitting	-
40	F011482	2	Fitting	-
41	F060430	1	HYDRAULIC HOSE - FABRICATE	LGTH = 215 mm, Fabricate
42	AT124557	1	Hose Clamp	SUB FOR F004420
43	F023014	1	Fitting	-
44	F005063	2	NIPPLE	-
45	19M9638	1	Cap Screw	M10 X 20
46	24M7488	1	Washer	10.500 X 20 X 2 mm
47	F627910	3	Sleeve	-
48	24M7508	3	Washer	8.400 X 24 X 2 mm
49	F024599	2	Elbow Fitting	-
50	F027427	1	Fitting	-
51	F005065	1	NIPPLE	-

Mountings, Hydrostatic Transmission Hoses
