Hydraulic Hoses, Proportional Dozer Blade

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F051516	4	HOSE-ASSY	LGTH = 1450 mm
2	F053262	1	HYDRAULIC HOSE	LGTH = 900 mm
3	F005060	5	Fitting	-
4	F061144	1	HYDRAULIC HOSE - FABRICATE	LGTH = 1000 mm
5	F013533	1	Hydraulic Hose	LGTH = 1400 mm
6	F012592	6	Elbow Fitting	-
7	F008262	4	Lock Washer	-
8	F064799	1	VALVE STACK	-
9	F630188	1	Plate	-
10	19M9682	2	Cap Screw	M8 X 20
11	F050828	2	Hydraulic Cylinder	Bulldozer Blade Cylinder, COMPONENTS ON SEPARATE PAGE
12	F005077	2	Fitting	-
13	F058654	2	Hydraulic Hose	LGTH = 2100 mm
14	F022417	2	Elbow Fitting	-
15	F624505	1	PLATE	-
16	F005045	2	Elbow Fitting	-
17	F005059	3	Fitting	-
18	F010919	1	NIPPLE	-
19	F013586	1	Hydraulic Hose	LGTH = 750 mm
20	F024599	1	Elbow Fitting	-
21	F005057	5	Fitting	-
22	F062778	1	Hydraulic Restrictor	-
23	F062777	1	Mounting Parts	-
24	F062985	1	Valve Stack	Proportional Dozer Valve, COMPONENTS ON SEPARATE PAGE
25	F624506	1	PLATE	-
26	24M7509	6	Washer	8.400 X 16 X 1.600 mm
27	19M9681	8	Cap Screw	M8 X 16
28	F012521	1	Elbow Fitting	-
29	19M9476	1	Screw	M5 X 8
30	F003696	1	COPPER WASHER	-
31	F051785	2	Elbow Fitting	-
32	F023024	1	Hydraulic Hose	LGTH = 910 mm
33	F617321	1	CABLE	NLA
34	F053706	1	Electrical Connector Assy	X47
34	F045798	1	Pin	-
34	F053707	1	Socket Outlet	-
35	F024301	2	CONNECTOR	X195U; X195D
36	F005333	1	Tie Band	-
37	19M9634	2	Cap Screw	M8 X 80, Not Illustrated
38	F066255	1	Self-Operating Valve	INCLUDES F066257
38	F066257	1	Seat Kit	ORDER F716359
38	F716359	1	Seal Kit	-
39	F066254	1	Self-Operating Valve	INCLUDES F066256
39	F066256	1	Seal Kit	Not Illustrated

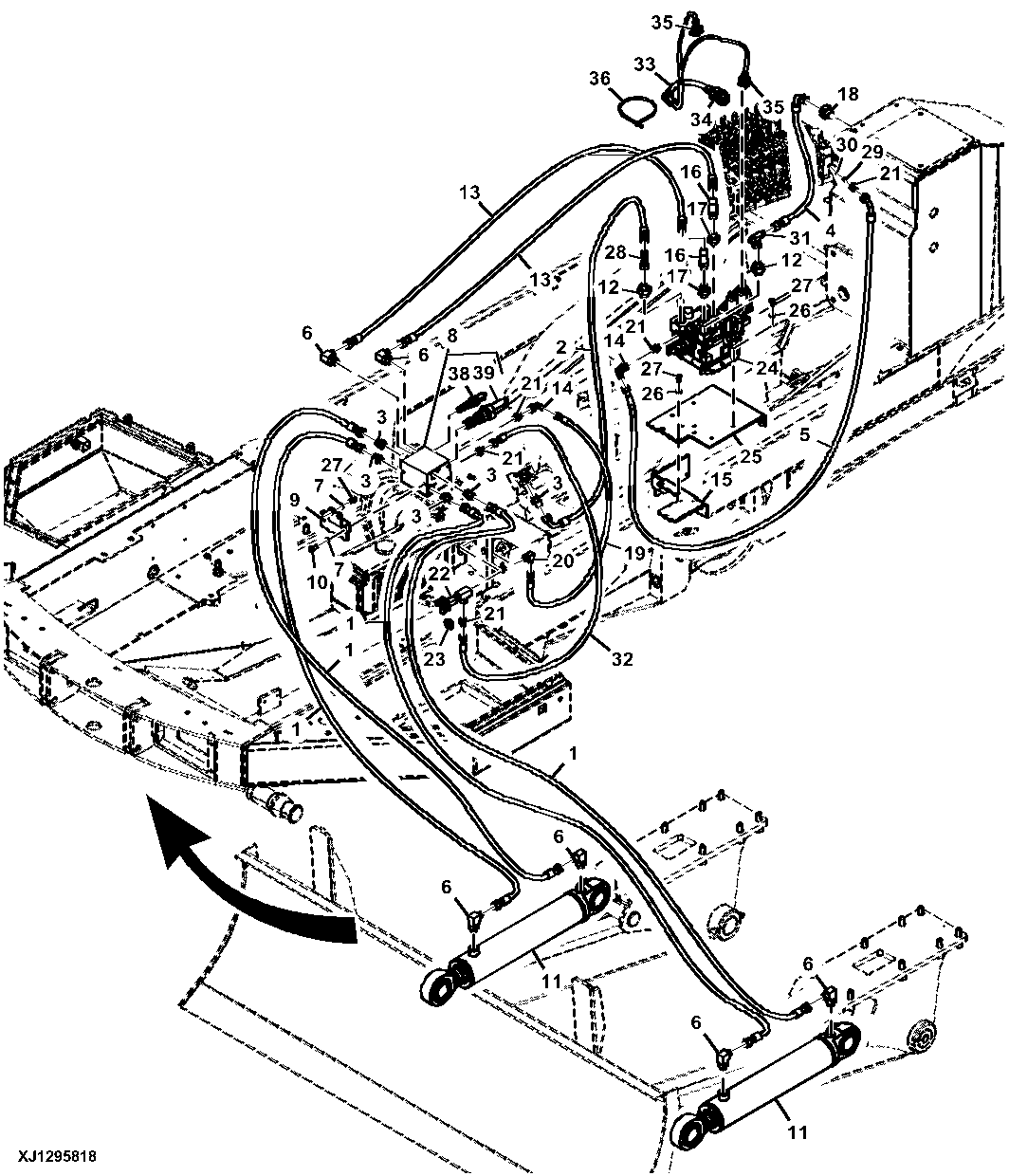

Hydraulic Hoses, Proportional Dozer Blade
