Hydraulic Hoses, Proportional Dozer Blade (002119 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F051516	4	HOSE-ASSY	LGTH = 1450 mm
2	F061144	2	HYDRAULIC HOSE - FABRICATE	LGTH = 1000 mm
3	F005060	5	Fitting	-
4	F062287	2	Fitting	-
5	F013533	1	Hydraulic Hose	LGTH = 1400 mm
6	F012592	6	Elbow Fitting	-
7	F008262	4	Lock Washer	-
8	F070226	1	Valve Stack	Counter Balance Valve, COMPONENTS ON SEPARATE PAGE
9	F630188	1	Plate	-
10	19M9682	2	Cap Screw	M8 X 20
11	F050828	2	Hydraulic Cylinder	Bulldozer Blade Cylinder, COMPONENTS ON SEPARATE PAGE
12	F013594	2	Elbow Fitting	-
13	F058654	2	Hydraulic Hose	LGTH = 2100 mm
14	F022417	2	Elbow Fitting	-
15	F624505	1	PLATE	-
16	F024312	1	HOSE-ASSY	LGTH = 1600 mm
17	F005059	2	Fitting	-
18	F010919	1	NIPPLE	-
19	F013738	2	Pin Fastener	-
20	F010079	2	COUPLING NUT	-
21	F025424	2	Fitting	-
22	F023024	1	Hydraulic Hose	LGTH = 910 mm
23	F024599	1	Elbow Fitting	-
24	F005057	7	Fitting	-
25	F062777	1	Mounting Parts	-
26	F062778	1	Hydraulic Restrictor	-
27	F062985	1	Valve Stack	Proportional Dozer Valve, COMPONENTS ON SEPARATE PAGE
28	F624506	1	PLATE	-
29	24M7509	6	Washer	8.400 X 16 X 1.600 mm
30	F013586	1	Hydraulic Hose	LGTH = 750 mm
31	19M9681	8	Cap Screw	M8 X 16
32	F003696	1	COPPER WASHER	-
33	19M9476	1	Screw	M5 X 8
34	F617321	1	CABLE	NLA
35	F053706	1	Electrical Connector Assy	X47
35	F053707	1	Socket Outlet	-
35	F045798	1	Pin	-
36	F024301	2	CONNECTOR	X195U; X195D
37	F005333	1	Tie Band	-

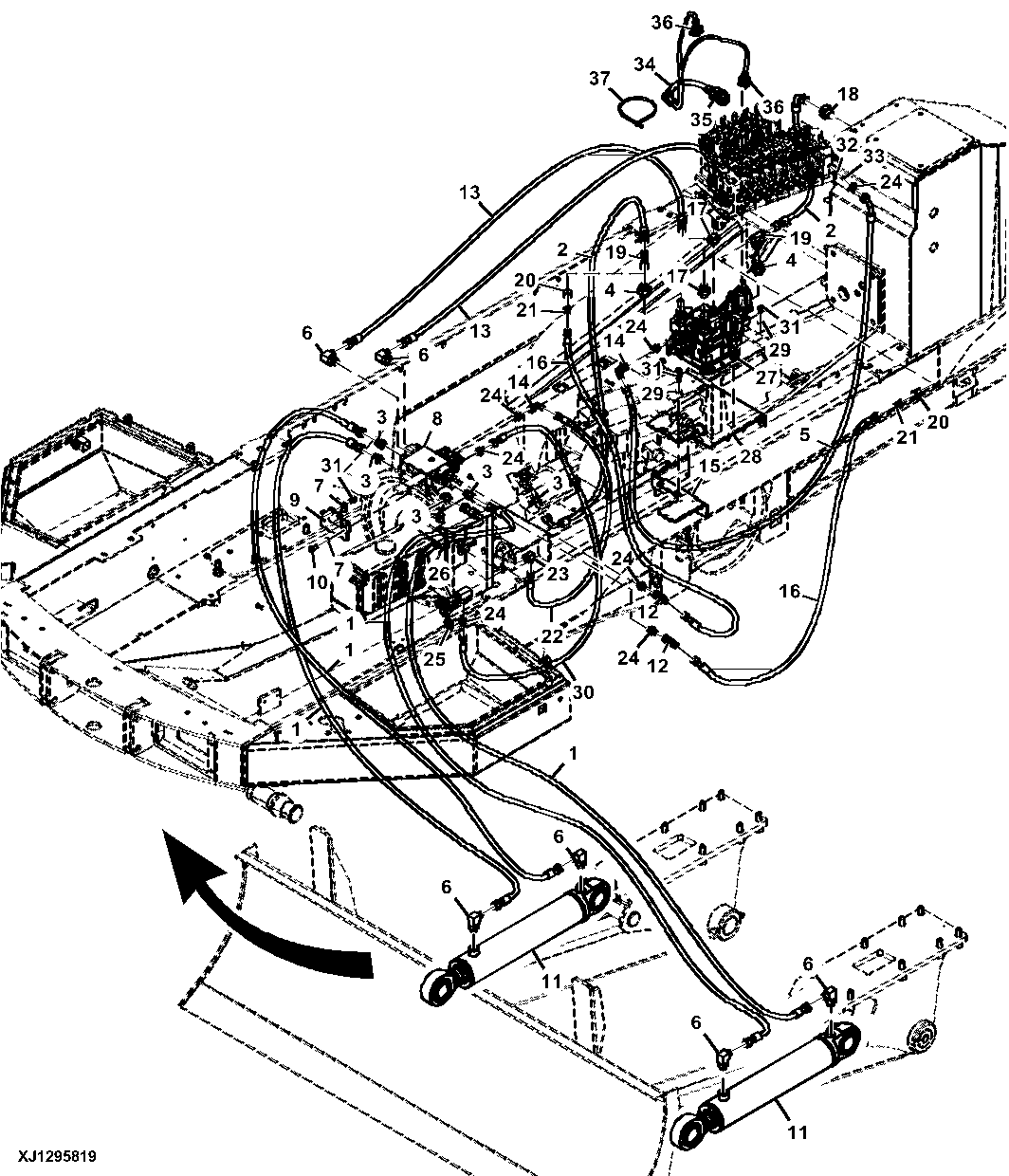

Hydraulic Hoses, Proportional Dozer Blade (002119 - )
