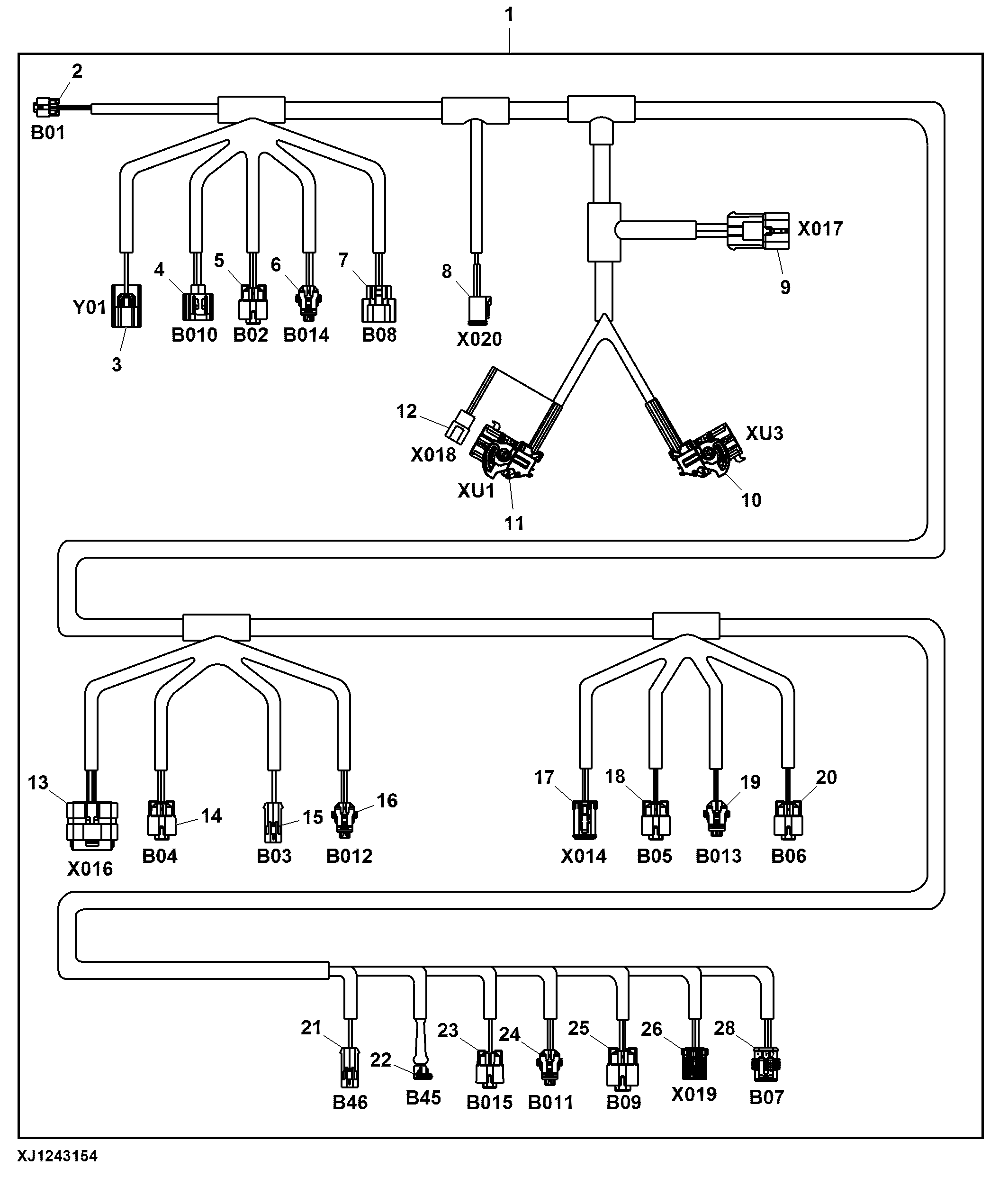

ECU XU1 and XU3 Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F636214	1	Wiring Harness	-
2	57M8601	1	Elec. Connector Housing	Crank Sensor
2	57M8633	1	Elec. Connector Accessory	-
2	57M8560	1	Elec. Connector Terminal	-
2	57M8566	1	Elec. Connector Seal	-
3	57M8403	1	Elec. Connector Housing	Pump Control Valve
3	57M8404	1	Elec. Connector Terminal	-
3	57M8406	16	Elec. Connector Terminal	-
4	57M8400	1	Electrical Connector Assy	Fuel Temperature Sensor
4	57M8559	1	Elec. Connector Terminal	-
4	57M8568	1	Elec. Connector Seal	-
5	57M8601	1	Elec. Connector Housing	Cam Sensor
5	57M8603	1	Elec. Connector Seal	-
5	57M8602	1	Elec. Connector Terminal	-
5	57M8633	1	Elec. Connector Accessory	-
6	57M8625	1	Elec. Connector Housing	Oil Pressure Sensor
6	57M8624	1	Elec.Connect Locking Device	-
6	57M8560	1	Elec. Connector Terminal	-
6	57M8566	1	Elec. Connector Seal	-
7	57M8135	16	Elec. Connector Terminal	-
7	57M8420	1	Elec. Connector Seal	-
7	57M7833	16	Elec. Connector Seal	-
7	57M8568	20	Elec. Connector Seal	-
7	57M8558	20	Elec. Connector Terminal	-
7	57M13604	1	Elec. Connector Housing	-
7	57M8407	1	Elec. Connector Housing	Rail Pressure Sensor
8	F052686	1	Electrical Connector Assy	Glow Plug Connector
8	57M7620	1	Electrical Connector Assy	SUB FOR F052688
8	R78065	1	Elec. Connector Terminal	SUB FOR F055139
9	R78059	1	Elec. Connector Seal	-
9	R78064	1	Elec. Connector Cavity Plug	-
9	57M7285	16	Elec. Connector Terminal	-
9	R78062	1	Elec. Connector Seal	-
9	57M7286	12	Elec. Connector Terminal	-
9	57M7307	1	Electrical Connector Assy	-
9	57M7305	1	Elec. Connector Housing	Auxiliary Power
10	57M10610	1	Elec. Connector Housing	XU3 ECU Connector
10	57M10604	1	Elec. Connector Housing	-
10	57M10330	1	Elec. Connector Terminal	-
10	57M10331	1	Elec. Connector Terminal	-
10	57M10333	1	Elec. Connector Cavity Plug	-
10	57M10334	1	Elec. Connector Cavity Plug	-
11	57M10604	1	Elec. Connector Housing	-
11	57M10334	1	Elec. Connector Cavity Plug	-
11	57M10333	1	Elec. Connector Cavity Plug	-
11	57M10330	1	Elec. Connector Terminal	-
11	57M10605	1	Elec. Connector Housing	XU1 ECU Connector
11	57M10331	1	Elec. Connector Terminal	-
12	F052694	1	Electrical Connector Assy	Coolant and Air Filter Sensors
12	57M7621	1	Elec.Connect Locking Device	SUB FOR F052695
12	R78066	1	Elec. Connector Terminal	SUB FOR F045798
13	57M13011	1	Elec. Connector Housing	Torque Motor
13	57M8598	1	Elec. Connector Terminal	-
13	57M8555	1	Elec. Connector Seal	-
14	57M8612	1	Elec. Connector Housing	EGR Exhaust Temperature Sensor
14	57M8566	1	Elec. Connector Seal	-
14	57M8618	1	Elec. Connector Terminal	-
14	57M8633	1	Elec. Connector Accessory	-
15	57M7254	1	Elec. Connector Housing	Water in Fuel Sensor
15	57M7289	1	Elec.Connect Locking Device	-
15	57M7494	1	Elec. Connector Terminal	-
15	57M7493	1	Elec. Connector Seal	-
16	57M8566	1	Elec. Connector Seal	-
16	57M8618	1	Elec. Connector Terminal	-
16	57M8625	1	Elec. Connector Housing	Fuel Pressure Sensor
16	57M8624	1	Elec.Connect Locking Device	-
17	57M8634	1	Elec. Connector Housing	Fuel Injection Connector
17	57M8013	1	Elec.Connect Locking Device	-
17	57M7546	18	Elec. Connector Terminal	-
17	57M8165	20	Elec. Connector Terminal	-
18	57M8601	1	Elec. Connector Housing	EGR Fresh Air Temperature Sensor
18	57M8633	1	Elec. Connector Accessory	-
18	57M8618	1	Elec. Connector Terminal	-
18	57M8603	1	Elec. Connector Seal	-
19	57M8624	1	Elec.Connect Locking Device	-
19	57M8566	1	Elec. Connector Seal	-
19	57M8618	1	Elec. Connector Terminal	-
19	57M8625	1	Elec. Connector Housing	-
20	57M8601	1	Elec. Connector Housing	EGR Mixed Air Sensor
20	57M8633	1	Elec. Connector Accessory	-
20	57M8618	1	Elec. Connector Terminal	-
20	57M8566	20	Elec. Connector Seal	-
21	57M7254	1	Elec. Connector Housing	Cooler Water Level
21	57M8633	1	Elec. Connector Accessory	-
21	57M7494	1	Elec. Connector Terminal	-
21	57M7493	1	Elec. Connector Seal	-

ECU XU1 and XU3 Harness

Нет текстового описания
