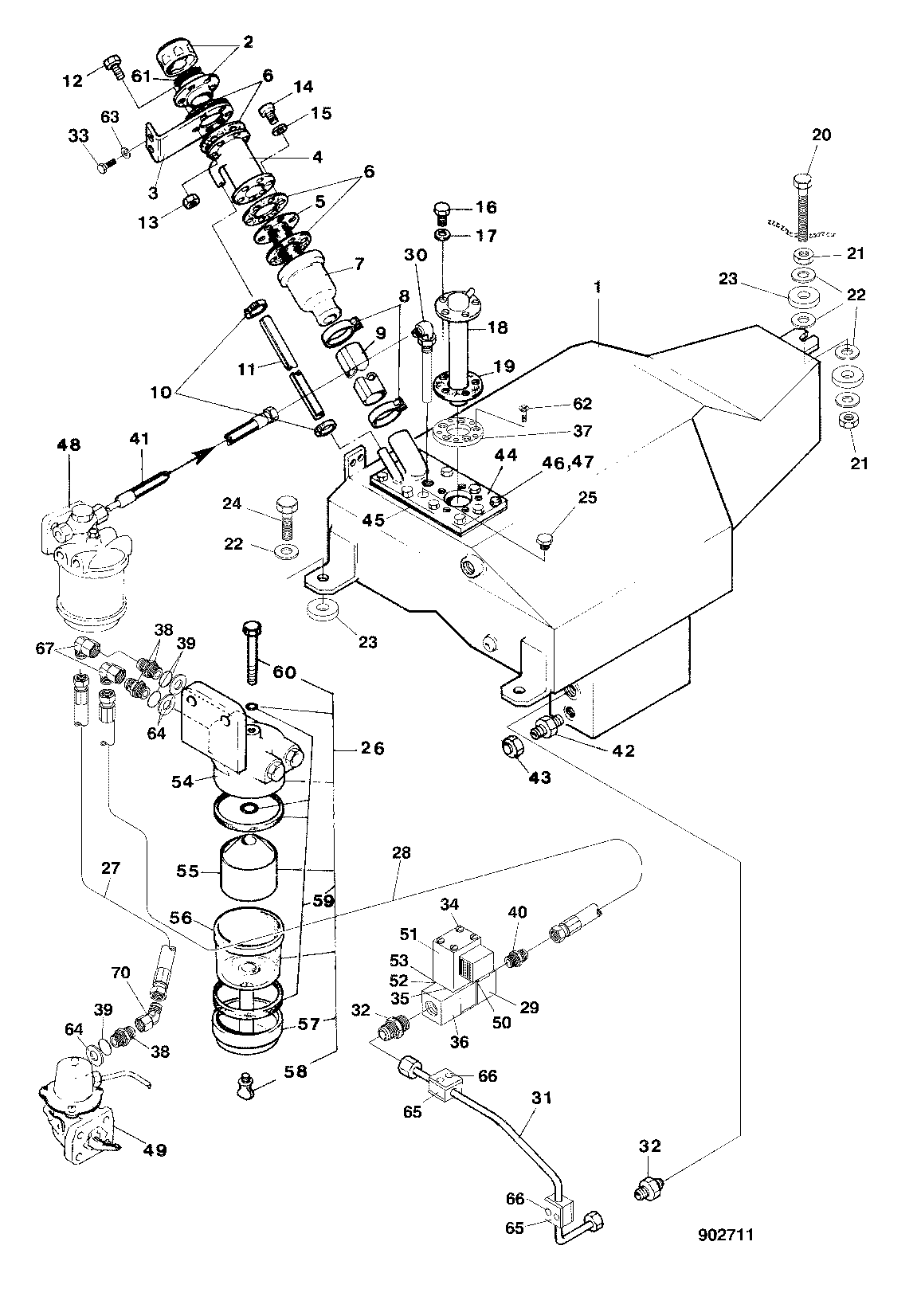

ENGINE FUEL SYSTEMS F047037 11 8 ( 8100746 - ) 902711 [902711]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F053051	1	FUEL TANK	-
2	F026681	1	CAP KIT	-
3	F023329	1	FLANGE	-
4	F023346	1	CONNECTION	-
5	F040557	1	STRAINER	-
6	F026622	4	SEAL	-
7	F020323	1	PIPE CONNECTION	-
8	F005013	2	HOSE CLAMP	-
9	F024918	1	HOSE	-
10	F003668	2	Hose Clamp	-
11	F024919	1	Hose	-
12	F003515	6	SCREW	-
13	F003585	6	LOCK NUT	-
14	F003391	6	SCREW	-
15	F010721	6	WASHER	-
16	F003515	5	SCREW	-
17	F003696	5	COPPER WASHER	-
18	F005404	1	SENSOR	-
19	F001443	1	GASKET	-
20	F056718	1	SCREW	-
21	F003590	2	LOCK NUT	-
22	F003170	6	WASHER	-
23	F044704	4	WASHER	-
24	F003539	2	SCREW	-
25	F003382	1	PLUG	-
26	F001921	1	WATER SEPARATOR	-
27	F044654	1	FUEL HOSE	-
28	F044653	1	FUEL HOSE	-
29	F045007	1	Solenoid Valve	-
30	F044689	1	RETURN PIPE	-
31	F044646	1	FUEL HOSE	-
32	F012534	2	Fitting	-
33	F003518	2	SCREW	-
34	F046411	4	SCREW	-
35	F004623	1	O-RING	-
36	F046415	1	FRAME	-
37	F051310	1	INSULATING	-
38	F045607	3	CONNECTION	-
39	F031449	3	O-RING	-
40	F005060	1	Fitting	-
41	F044655	1	FUEL HOSE	-
42	F005057	1	Fitting	-
43	F025469	1	Nut	-
44	F023338	1	COVER	-
45	F024090	1	SEAL	-
46	F003519	12	SCREW	-
47	F031782	12	SEAL	-
48	-------	1	O-RING	-
49	-------	1	O-RING	-
50	F033834	1	CONNECTOR	-
51	F046412	1	COIL	-
52	F046414	1	SPOOL	-
53	F046413	1	SPRING	-
54	F033803	1	COVER	-
55	F033802	1	WATER SEPARATOR	-
56	F013099	1	FILTER CUP	-
57	F033799	1	BASE	-
58	F007785	1	PLUG	-
59	F033801	1	SEAL KIT	-
60	F033804	1	SCREW	-
61	F039944	1	SEAL	-
62	F051477	5	SCREW	-
63	F003345	2	Spring Washer	-
64	F008223	3	COPPER WASHER	-
65	F013815	2	CLIP	-
66	F003403	4	SCREW	-
67	F005045	2	Elbow Fitting	-
68	F003382	1	PLUG	-
69	F003518	2	SCREW	-
70	F012521	1	Elbow Fitting	-
-	F042823	1	CAP	-
