Открытый узел

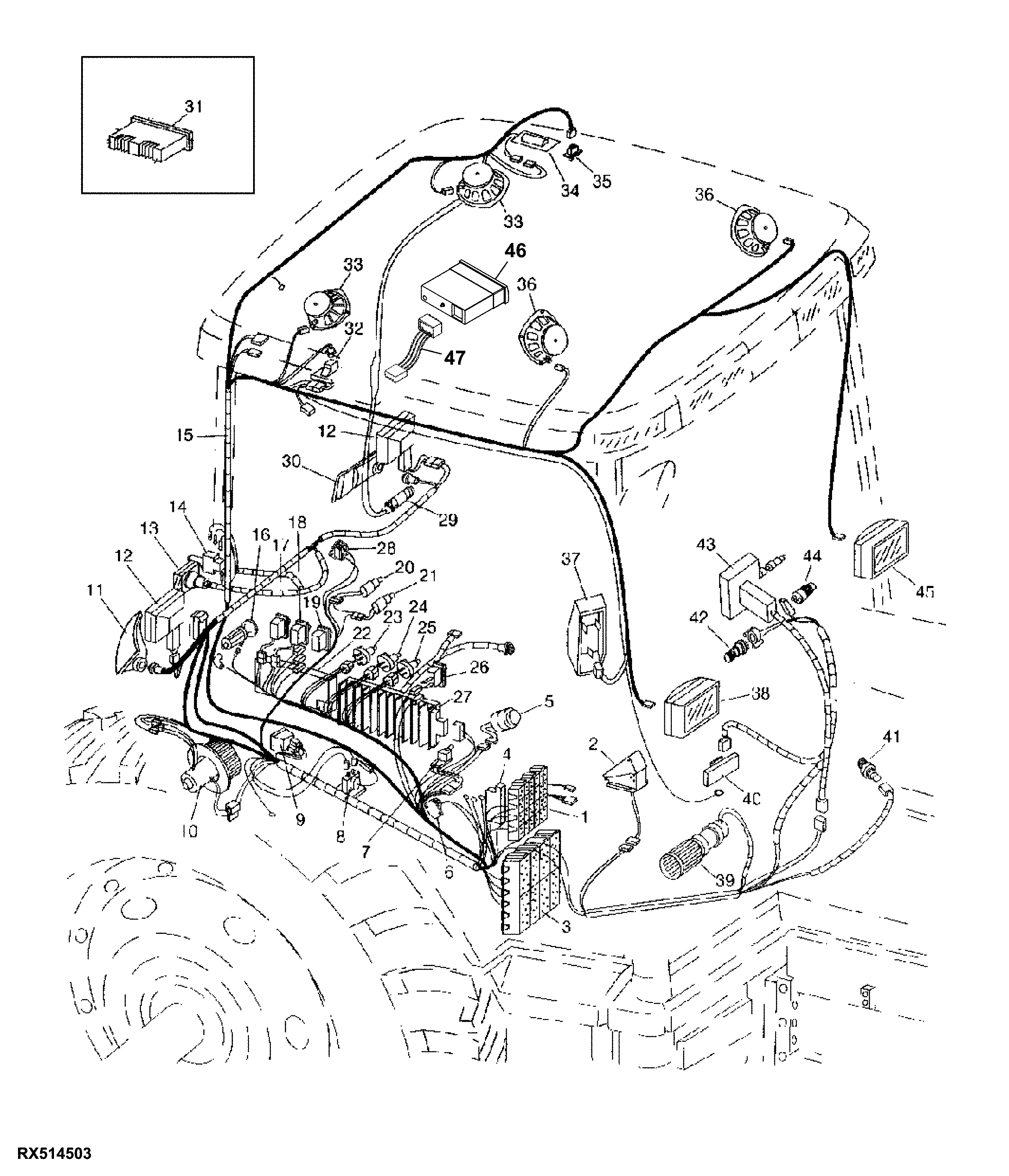

Wiring Harness (Cab) (Ukrainian Version) (011969 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE43737	4	Elec. Connector Accessory	-
2	RE155987	1	Accelerator	(SUB RE232548)
3	RE49724	6	Elec. Connector Accessory	-
4	RE48875	1	Junction Block	-
5	RE49727	1	Horn	-
6	RE186986	1	Junction Block	(SUB FOR R111931)
7	RE62163	1	Switch	-
8	RE198074	1	Temperature Switch	(AIR CONDITIONING DEICING SWITCH) (SUB FOR AH144020)
9	RE49636	1	Resistor	-
10	RE67645	1	Motor	-
11	RE48954	1	Lens	RH
12	RE154908	2	Floodlamp	RE71421, RE150421 OR RE151346
12	RE330060	1	Floodlamp	(LED PEDESTAL)
13	AR75695	1	Socket Outlet	-
14	RE161844	1	Hitch Kit	(SUB FOR RE32042)
14	RE32042	1	Hitch Switch	(SUB RE161844)
15	RE150544	1	Cab Wiring Harness	(ALSO ORDER R76477) (SUB RE163725)
15	RE165908	1	Cab Wiring Harness	(ALSO ORDER R76477) (SUB FOR RE150544 OR RE163725)
16	AR60937	1	Electrical Lighter	-
17	RE55476	1	Toggle/Rocker Switch	-
18	RE55477	1	Toggle/Rocker Switch	(MFWD)
19	RE55036	1	Toggle/Rocker Switch	-
20	RE60888	1	Pressure Switch	-
21	RE155938	1	Pressure Switch	(SUB FOR RE60887)
22	RE64583	1	Digital Display	(SUP)
23	AL36529	1	Switch	-
24	RE46634	1	Switch	-
25	RE43497	1	Switch	-
26	RE165815	1	Toggle/Rocker Switch	(SUB FOR RE55478)
27	RE185776	1	Vehicle Monitor	-
27	RE185778	1	Vehicle Monitor	(SUB FOR RE62652) W/RE61185, (ICU)
28	RE186986	1	Junction Block	(SUB FOR R111931)
29	RE51234	1	Push Switch	-
30	RE48955	1	Lens	LH
31	RE171947	1	Radio	(AM/FM STEREO) (ORDER RE575067; ALSO ORDER RE165739; SUB FOR RE64377) (FI)
31	RE169417	1	Radio	(AM/FM STEREO/CASSETTE/WEATHERBAND) (ORDER RE575068; ALSO ORDER RE165739; SUB FOR RE64376) (FI)
32	RE57892	1	Lamp	-
33	RE254829	2	Speaker	(6") (4 OHM), (SUB FOR RE61546) (REAR)
34	RE44590	1	Lamp	-
35	RE48838	1	Toggle/Rocker Switch	-
36	RE254829	2	Speaker	(6") (4 OHM), (SUB FOR RE61545) (FRONT)
37	R107890	1	Bulb	-
37	RE229325	1	Tachometer	(SUB FOR RE208300 OR RE63458)
38	RE154902	1	Floodlamp	RH, (SUB FOR RE51239, RE71420 OR RE150425)
38	RE330061	1	Floodlamp	(LED BELTLINE)
39	RE61419	1	Blower	-
40	RE66277	1	Push Switch	-
41	RE46534	1	Switch	(DIFFERENTIAL LOCK)
42	RE61717	1	Rotary Switch	-
43	RE209891	1	Module	(SUB FOR RE63512)
44	R39554	1	Switch	(ETHER AID)
45	RE154901	1	Floodlamp	LH, (SUB FOR RE51239, RE71420 OR RE150425)
45	RE330061	1	Floodlamp	(LED BELTLINE)
46	RE575067	1	Radio	(AM/FM STEREO)
46	RE575068	1	Radio	(AM/FM STEREO/CASSETTE/WEATHERBAND)
47	RE165739	1	Radio Speaker WRG Harness	-

Wiring Harness (Cab) (Ukrainian Version) (011969 - )

Нет текстового описания
