Wiring Harness (Cab) (North American Version) ( - 009999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE43737	4	Elec. Connector Accessory	-
2	RE61183	1	Accelerator	(SUB RE232548)
3	RE49724	6	Elec. Connector Accessory	-
4	RE48875	1	Junction Block	-
5	RE49727	1	Horn	-
6	RE186986	1	Junction Block	(SUB FOR R111931)
7	RE62163	1	Switch	-
8	RE198074	1	Temperature Switch	(AIR CONDITIONING DEICING SWITCH) (SUB FOR AH144020)
9	RE49636	1	Resistor	-
10	RE67645	1	Motor	(SUB FOR RE62653)
11	RE48954	1	Lens	RH
12	RE48989	2	Floodlamp	(( -XXXXXX) 8100-002801;8200-002215;8300-003900;8400-002531)
12	RE154908	2	Floodlamp	((XXXXXX- ) 8100-002802;8200-002216;8300-003901;8400-002532) (SUB FOR RE51240, RE71421, RE150421 OR RE151346)
12	RE330060	1	Floodlamp	(LED PEDESTAL)
13	AR75695	1	Socket Outlet	-
14	RE32042	1	Hitch Switch	(SUB RE161844)
14	RE161844	1	Hitch Kit	(SUB FOR RE32042)
15	RE60537	1	Cab Wiring Harness	(( -XXXXXX) 8100-002801;8200-002215;8300-003900;8400-002531) (ALSO ORDER R76477) (SUB RE64626, (2) 57M7254, (2) 57M7289, (4) R104846 AND (4) 57M7258)
15	RE64626	1	Cab Wiring Harness	((XXXXXX- ) 8100-002802;8200-002216;8300-003901;8400-002532)
16	AR60937	1	Electrical Lighter	-
17	RE55476	1	Toggle/Rocker Switch	-
18	RE55477	1	Toggle/Rocker Switch	(MFWD)
19	RE55036	1	Toggle/Rocker Switch	-
20	RE60888	1	Pressure Switch	-
21	RE155938	1	Pressure Switch	(SUB FOR RE60887)
22	RE64583	1	Digital Display	(SUB FOR RE60928 AND RE63440) (SUP)
23	AL36529	1	Switch	-
24	RE46634	1	Switch	-
25	RE43497	1	Switch	-
26	RE165815	1	Toggle/Rocker Switch	(SUB FOR RE55478)

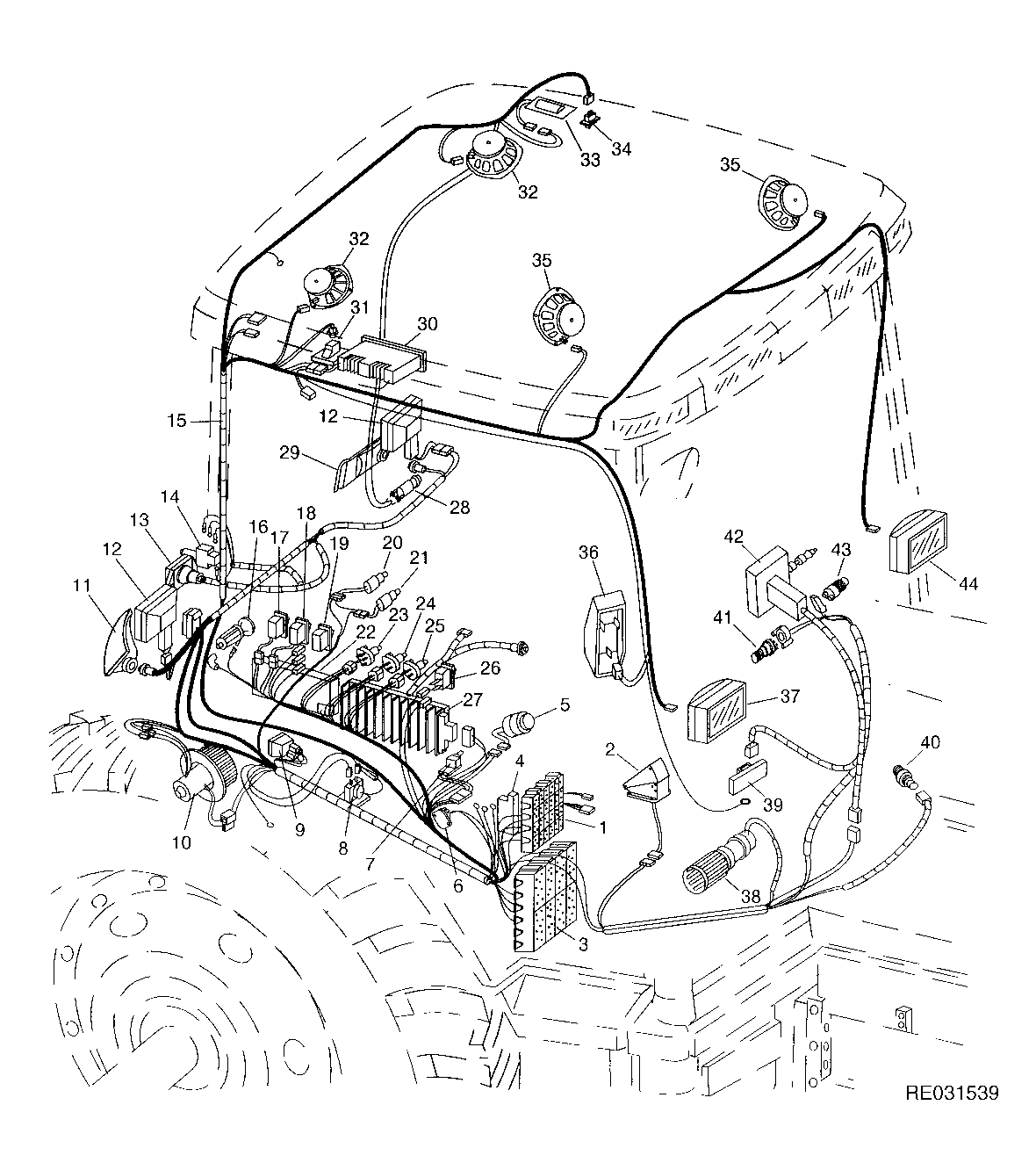

Wiring Harness (Cab) (North American Version) ( - 009999)

Нет текстового описания
