Открытый узел

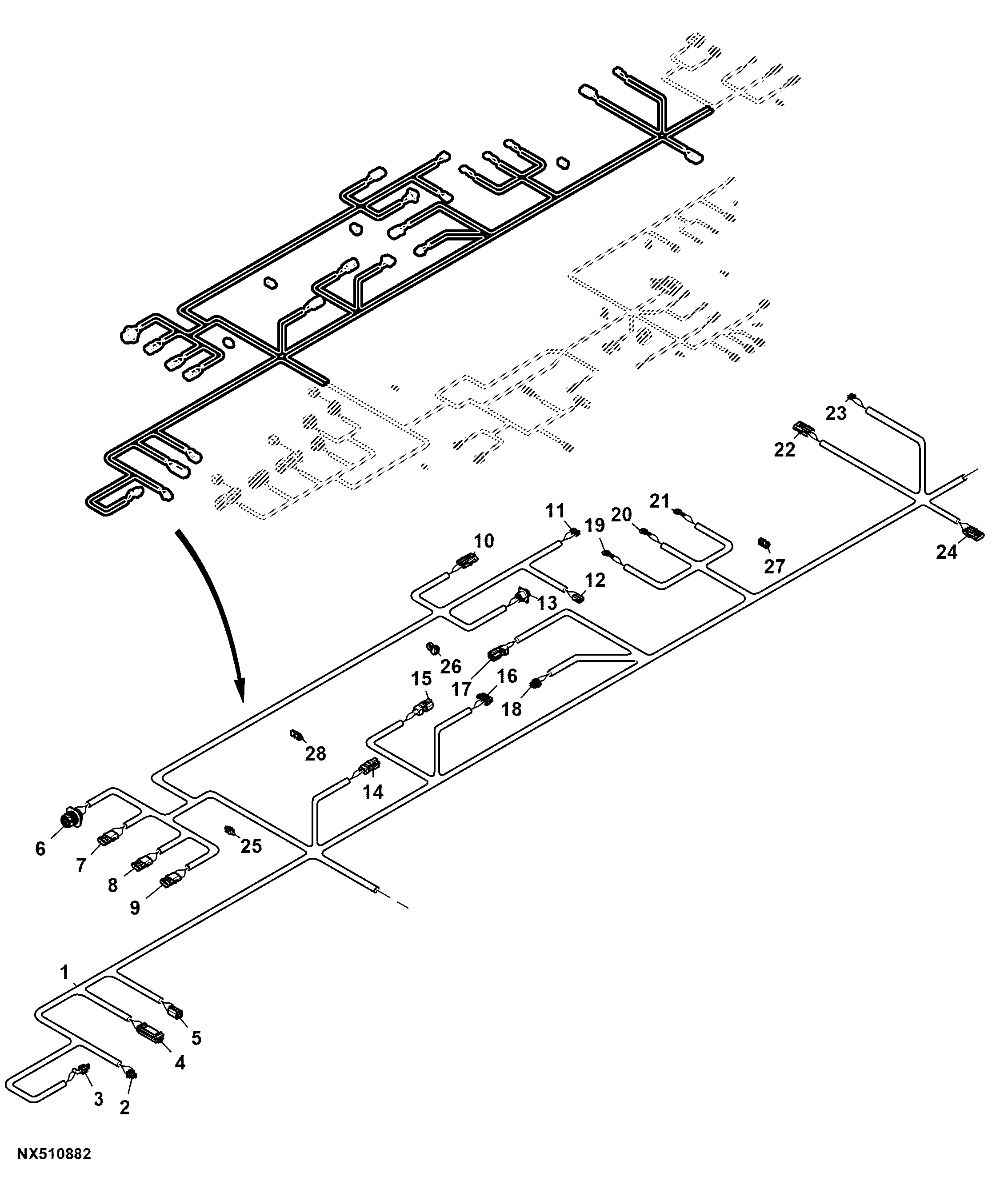

Wiring Harness, Cab ( 1 of 4 )

Wiring Harness, Cab ( 1 of 4 )

Wiring Harness, Cab ( 1 of 4 )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness, Cab ( 1 of 4 )

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AKK44174	1	Cab Wiring Harness	Cab
2	57M7714	1	Electrical Connector Assy	Primary Display Unit, XA120
2	57M7719	1	Electrical Connector Assy	-
2	57M11552	6	Elec. Connector Terminal	Cavity 1-6
3	RE588054	1	Electrical Conductor	Secondary Display A Post, XX116
4	57M11346	1	Elec. Connector Housing	Front Control Support Interconnect, XX141-1
4	57M12066	4	Elec. Connector Terminal	Cavity A7, A8, A9, B7
5	57M8012	1	Electrical Connector Assy	ISO Relay, XK06
5	57M8165	6	Elec. Connector Terminal	Cavity 1-6
5	57M8013	1	Elec.Connect Locking Device	-
6	57M9183	1	Elec. Connector Housing	Service Advisor Port, XX120
6	N282069	2	Elec. Connector Terminal	Cavity A, B
6	57M8164	4	Elec. Connector Terminal	Cavity C, D, H, J
6	57M9181	3	Elec. Connector Cable Seal	Cavity E, F, G
6	57M9182	1	Nut	-
7	R78061	3	Elec. Connector Terminal	Cavity A, B, C
7	R571053	1	Clip	-
7	57M9218	3	Elec. Connector Seal	Cavity A, B, C
7	R78054	1	Electrical Connector Assy	Convenience Outlet 2, XX104
8	R78054	1	Electrical Connector Assy	Convenience Outlet 3, XX105
8	R78061	3	Elec. Connector Terminal	Cavity A, B, C
8	57M9218	3	Elec. Connector Seal	Cavity A, B, C
8	57M9555	1	Clip	-
9	R78054	1	Electrical Connector Assy	Convenience Outlet 1, XX103
9	R78061	3	Elec. Connector Terminal	Cavity A, B, C
9	57M9218	3	Elec. Connector Seal	Cavity A, B, C
9	R571053	1	Clip	-
10	57M9555	1	Clip	-
10	57M9218	3	Elec. Connector Seal	Cavity A, B, C
10	R78054	1	Electrical Connector Assy	Convenience Outlet 6, XX108
10	R78061	3	Elec. Connector Terminal	Cavity A, B, C
11	57M14172	1	Elec. Connector Housing	Car Play Module, XA114
12	57M7065	1	Elec. Connector Housing	Upholstery Auxiliary Power Outlet, XX110, RH
12	57M10980	2	Elec. Connector Terminal	Cavity 1, 2
13	R76873	1	Elec. Connector Terminal	ISO Connector, XX119
13	57M12061	5	Elec. Connector Terminal	Cavity 1, 6, 7, 8, 9
14	RE588053	1	Electrical Conductor	Server J4, XA121-4
15	RE597015	1	Electrical Conductor	Server J6, XA121-6
16	57M7717	1	Electrical Connector Assy	Server J1, XA121-1
16	57M7551	11	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 8, 9, 10, 13, 14, 16
16	57M7722	1	Electrical Connector Assy	-
17	RE588054	1	Electrical Conductor	Server J5, XA121-5
18	57M8783	1	Elec. Connector Housing	-
18	57M7551	6	Elec. Connector Terminal	Cavity 1, 2, 3, 5, 6, 7
18	57M8802	1	Elec. Connector Housing	Server J2, XA121-2
19	57M13603	1	Elec. Connector Terminal	Ground Cab 3, XGND101-3
20	57M13603	1	Elec. Connector Terminal	Ground Cab 1, XGND101-1
21	57M13603	1	Elec. Connector Terminal	Ground Cab 2, XGND101-2
22	R78054	1	Electrical Connector Assy	Convenience Outlet 5, XX107
22	R78061	3	Elec. Connector Terminal	Cavity A, B, C
22	57M9218	3	Elec. Connector Seal	Cavity A, B, C
23	57M13867	1	Elec. Connector Housing	Dual USB Charger, XX102
24	R78054	1	Electrical Connector Assy	Convenience Outlet 4, XX106
24	R78061	3	Elec. Connector Terminal	Cavity A, B, C
24	57M9218	3	Elec. Connector Seal	Cavity A, B, C
25	RE258807	10	Tie Band	-
26	CB01483609	11	Tie Band	-
27	57M14544	1	Elec. Connector Accessory	-
28	57M10362	1	Clamp	-
