Большое обновление пильных узлов

Смотреть

Открытый узел

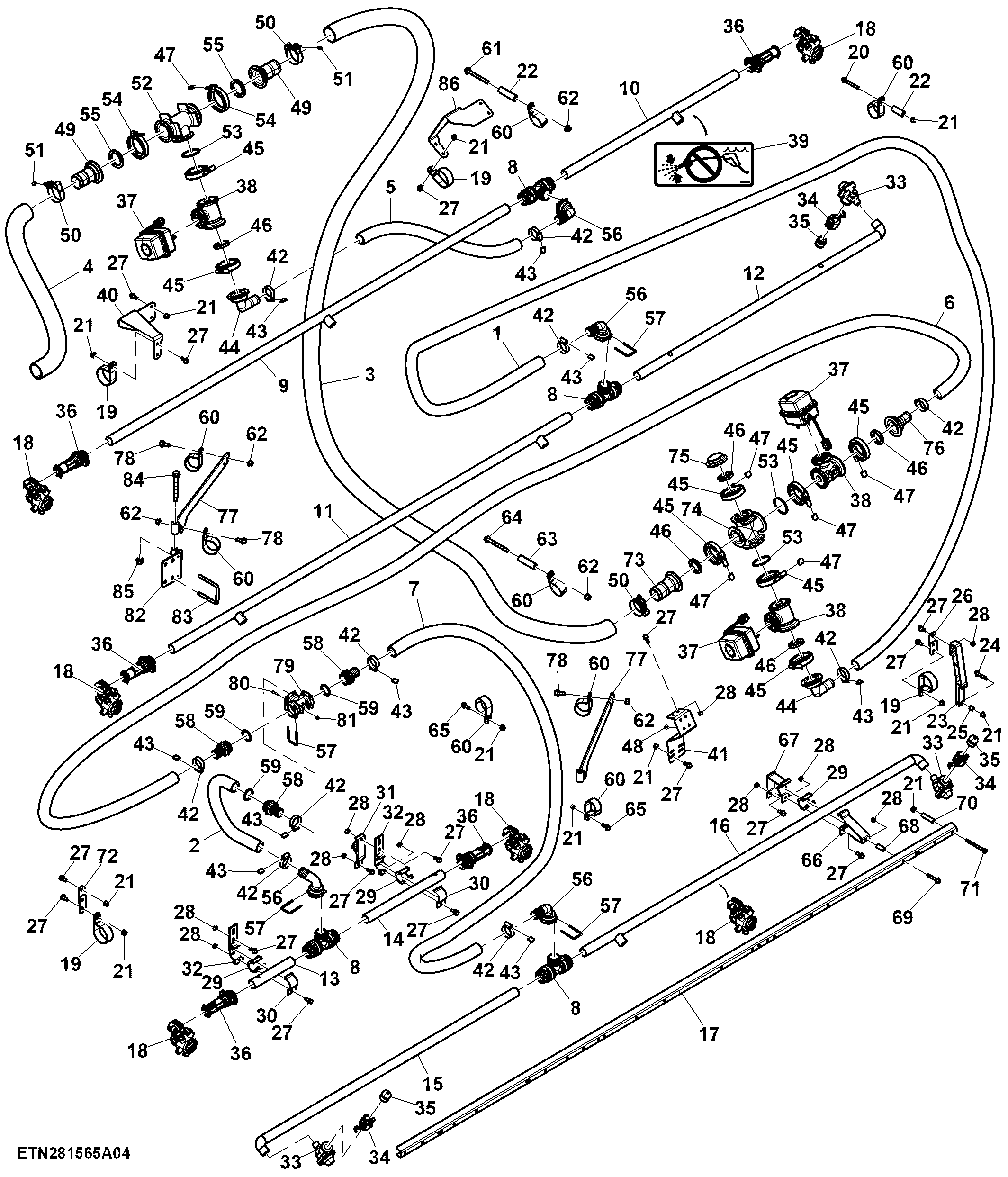

Solution Hoses, Nozzles and Pipes, 60 in. Spacing, Side Wing, RH Illustrated

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	CTL 057 in., MF TY27037
2	-	1	Part 2	CTL 023 in., MF TY27037
3	-	1	Part 3	CTL 173 in., MF TY26596
4	-	1	Part 4	CTL 100 in., MF TY26596
5	-	1	Part 5	CTL 027 in., MF TY27037
6	-	1	Part 6	CTL 111 in., MF TY27037
7	-	1	Part 7	RH, CTL 113 in., MF TY27037
7	-	1	Part 8	LH, CTL 101 in., MF TY27037
8	KK75471	4	Tee Fitting	-
9	AKK40958	1	Pipe	LGTH = 79.08 in.
9	AKK40953	1	Pipe	LGTH = 79.08 in., LH
10	AKK40959	1	Pipe	LGTH = 34.08 in.
10	AKK40952	1	Pipe	LGTH = 34.08 in., LH
11	AKK40950	1	Pipe	LGTH = 79.08 in., LH
11	AKK40957	1	Pipe	LGTH = 79.08 in.
12	AKK40955	1	Pipe	LGTH = 48.90 in.
12	AKK40951	1	Pipe	LGTH = 48.90 in., LH
13	KK75488	1	Pipe	LGTH = 7.94 in.
14	KK75487	1	Pipe	LGTH = 15.22 in.
15	AKK40954	1	Pipe	LGTH = 51.40 in.
16	AKK40956	1	Pipe	LGTH = 66.40 in.
17	KK75685	1	Bracket	-
18	AN206621	16	Nozzle Holder	-
19	N205452	10	Clamp	-
20	19M10057	5	Screw	M8 X 70
21	14M7722	32	Lock Nut	M8
22	KK11622	6	Spacer	-
23	N406107	4	Bracket	-
24	19M10012	4	Screw	M8 X 45
25	KK15826	4	Bushing	-
26	KK75461	4	Bracket	-
27	19M9836	75	Screw	M8 X 20
28	14M7707	65	Lock Nut	M8
29	KK11865	18	Isolator	-
30	KK11335	10	Bracket	-
31	KK39873	9	Bracket	-
32	KK26626	10	Clamp	-
33	KK75465	8	Check Valve	Diaphragm Check Valve
34	KK75469	8	Coupling	-
35	PM075-PL	8	Fitting	-
36	KK75500	5	Fitting	-
37	AKK20228	3	Actuator	On Off
38	AN403957	3	Valve	Flange
39	N408933	2	Label	Wash Components
40	KK16014	1	Bracket	-
41	KK75458	2	Bracket	-
42	AN205155	10	Hose Clamp	-
43	KK30639	10	Cover	-
44	PMM200125BRD	2	Elbow Fitting	-
45	AN304846	8	Clamp	-
46	A61734	5	Washer	-
47	KK30640	10	Cover	-
48	19M9830	8	Screw	M6 X 12
49	PMM220BRB	2	Hose Fitting	-
50	AN209544	3	Hose Clamp	-
51	KK75481	3	Cap	-
52	N405944	1	Tee Fitting	-
53	N208245	3	O-Ring	-
54	AN304847	2	Clamp	-
55	PM200G	2	Gasket	EPDM
55	PM200GV	2	Gasket	VITON
56	KK65546	4	Hose Fitting	-
57	KK65558	7	Hose Fitting	-
58	KK75499	3	Fitting	-
59	KK75468	3	O-Ring	-
60	N198631	10	Clamp	-
61	19M9373	1	Screw	M10 X 80
62	14M7723	6	Lock Nut	M10
63	28H3493	1	Bushing	0.546" X 0.840" X 3"
64	19M9988	1	Screw	M10 X 100
65	19M9837	3	Screw	M8 X 25
66	N408595	8	Bracket	-
67	KK26811	8	Bracket	-
68	28H1941	9	Bushing	0.364" X 0.540" X 1-1/4"
69	19M9841	8	Screw	M8 X 50
70	28H3507	1	Spacer	0.364" X 0.540" X 2-1/8"
71	19M8539	2	Cap Screw	M8 X 90
72	KK75460	1	Bracket	-
73	A61540	1	Fitting	-
74	N308799	1	Fitting	-
75	PMM200PLG	1	Plug	-
76	PMM200125BRB	1	Fitting	-
77	AKK44723	2	Hinge	-
78	19M9845	5	Screw	M10 X 25
79	KK75472	1	Tee Fitting	-
80	19M9817	2	Cap Screw	M6 X 20
81	14M7744	2	Flange Nut	M6
82	AKK11363	1	Hinge	-
83	N309534	2	U-Bolt	-
84	19M10063	1	Screw	M12 X 110
85	14M7724	1	Lock Nut	M12
86	KK16113	1	Bracket	-

Solution Hoses, Nozzles and Pipes, 60 in. Spacing, Side Wing, RH Illustrated
