Открытый узел

Radio, W/O Satellite Radio, W/ Bluetooth Microphone, AM / FM / WX

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L100644	2	Grommet	-
2	57M14446	3	Elec. Connector Accessory	-
3	57M10362	1	Clamp	-
4	R565905	1	Plug	-
5	RE586123	1	Electrical Conductor	LGTH = 1800 mm, Radio To USB Port
6	RE258807	4	Tie Band	-
7	RE593596	1	Electrical Conductor	LGTH = 800 mm, Ground Cable Antenna
8	57M7067	1	Elec. Connector Housing	-
9	57M9229	8	Clip	-
10	RE595138	1	Electrical Connector Assy	Carplay USB Hub
11	L221052	1	Antenna	-
12	TA15164	1	Wiring Harness	Radio Jumper
13	57M12825	1	Elec. Connector Accessory	Lever Lock
14	57M11028	1	Elec. Connector Housing	-
15	57M11029	1	Elec. Connector Housing	-
16	57M10421	1	Elec. Connector Accessory	-
17	TA15170	1	Antenna Cable	Radio AM / FM, Power and DAB
18	TA15167	1	Antenna Cable	Radio AM / FM and Power
19	TA15169	1	Antenna Cable	LGTH = 2410 mm, Radio DAB
20	TA15166	1	Antenna Cable	LGTH = 2410 mm, Radio AM / FM
21	AL228838	1	Antenna	W/O Whip
22	LVA24334	1	Radio Accessory	Microphone
23	R561020	1	Radio Accessory	Mounting Sleeve
24	57M11797	1	Elec. Connector Accessory	-
25	57M9536	1	Elec. Connector Terminal	-
26	57M11364	1	Elec. Connector Accessory	-
27	57M11348	1	Elec. Connector Housing	-
28	57M9661	1	Elec. Connector Housing	-
29	57M8781	1	Elec. Connector Housing	-

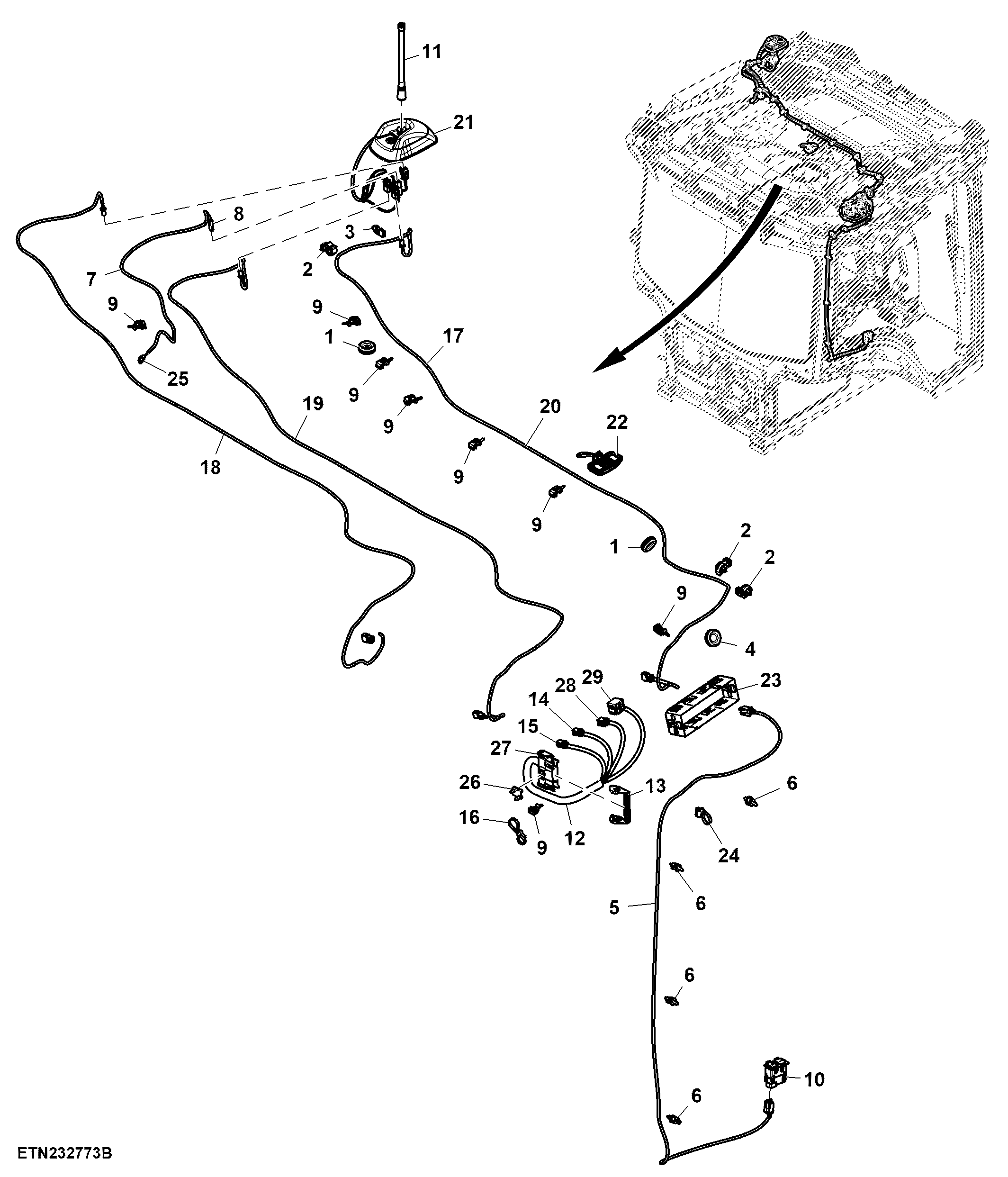

Radio, W/O Satellite Radio, W/ Bluetooth Microphone, AM / FM / WX

Нет текстового описания
