Открытый узел

Operator's Seat, Ultimate Active

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

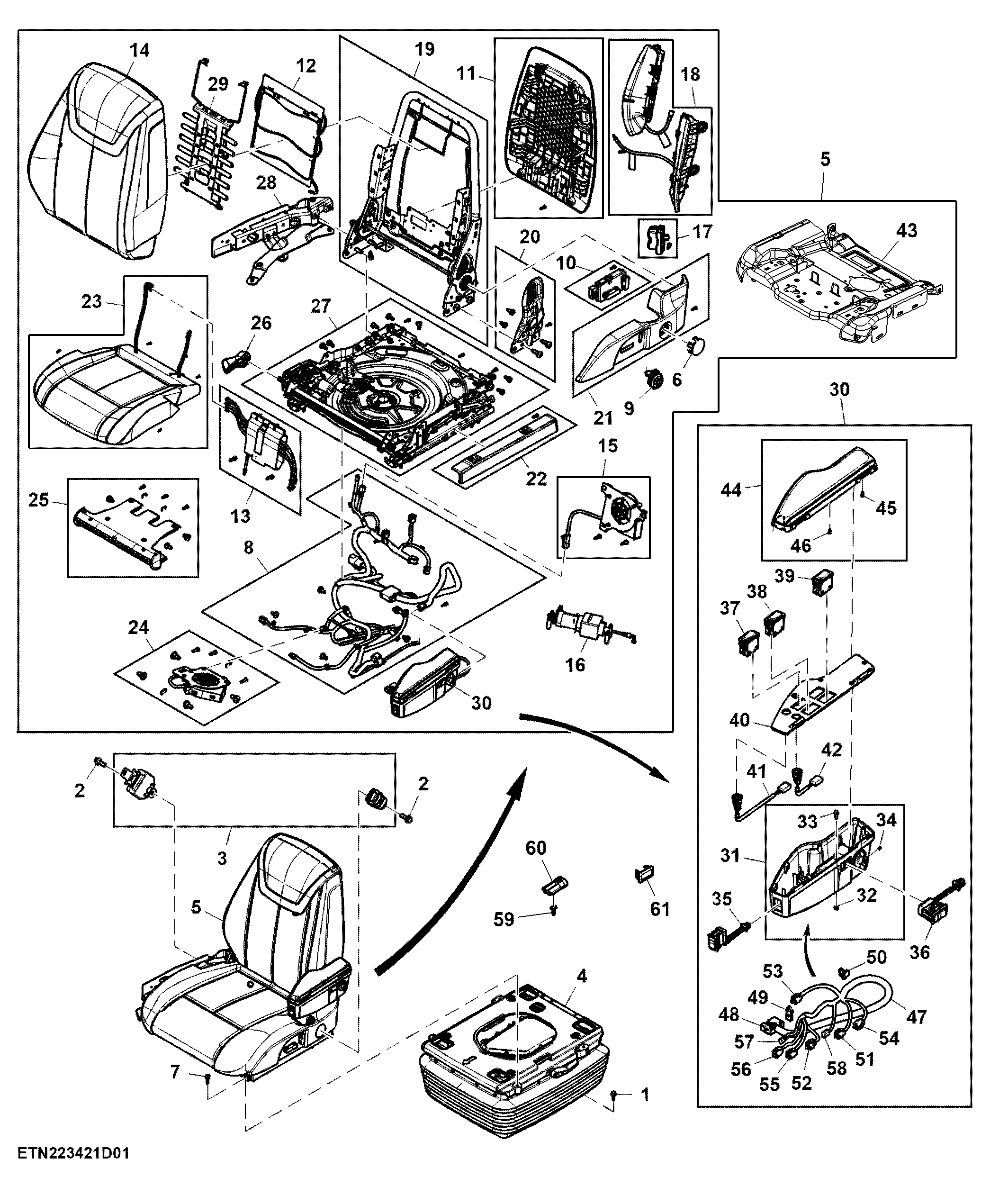

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8327	4	Screw	M8 X 25
2	R543772	2	Cap Screw	-
3	RE590504	1	Seat Belt	LGTH = 1296 mm
4	TA17996	1	Seat Suspension	ActiveSeat™ Components On Separate Page
5	TA23195	1	Seat Assembly	-
6	R566458	1	Cover	Seat Belt Attachment
7	R569386	4	Screw	-
8	TA19493	1	Seat Kit	Seat Harness
9	RE590644	1	Toggle/Rocker Switch	Pneumatic Lumbar Control Switch
10	RE590645	1	Toggle/Rocker Switch	6 Way Seat Adjust
11	RE590669	1	Panel Kit	-
12	RE590671	1	Seat Kit	Pneumatic Lumbar
13	RE590672	1	Seat Kit	Seat 16+1 Valve Block
14	RE590675	1	Seat Kit	Seat Back Cushion
15	RE590676	1	Seat Kit	Seat Back Vent
16	RE590679	1	Seat Kit	8 Liter Pneumatic Pump
17	TA19528	1	Seat Kit	Seat Lin Communication Box
18	RE590682	1	Seat Kit	Seat Back Bolster
19	RE590684	1	Seat Kit	Seat Back Frame
20	RE590686	1	Seat Kit	Armrest Bracket, LH
21	RE590689	1	Seat Kit	Seatside Shield
22	TA20044	1	Seat Kit	Rail Cover, LH
23	TA19495	1	Seat Kit	Seat Cushion
24	RE590694	1	Seat Kit	Seat Vent System
25	TA19189	1	Seat Kit	Cushion Length Adjustment
26	RE590700	1	Seat Kit	Swivel Handle
27	TA19488	1	Seat Kit	Premium / Ultimate Seat Swivel
28	RE590704	1	Seat Kit	Pivoting Command Arm Bracket
29	RE594003	1	Seat Kit	Lumbar Service
30	TA20953	1	Armrest	LH
31	TA20817	1	Armrest Kit	Lower Tub Assembly
32	14M7297	6	Nut	M5
33	37M7392	6	Screw	M5 X 16
34	22M7095	1	Set Screw	M5 X 6
35	RE228095	1	Toggle/Rocker Switch	Seat Height
36	RE165589	1	Toggle/Rocker Switch	Seat Firmness
37	RE594010	1	Toggle/Rocker Switch	Cushion Length Adjust Control
38	RE593853	1	Toggle/Rocker Switch	Seat Back Bolster Adjustment Control
39	TR119130	1	Toggle/Rocker Switch	Massage Mode Select Switch
40	TA18673	1	Armrest Kit	Switch Bezel
41	RE591772	1	Toggle/Rocker Switch	HVS Level Select Switch
42	RE591771	1	Toggle/Rocker Switch	HVS Mode Select Switch
43	TA19497	1	Seat Kit	Cushion Tilt, Pan
44	RE590663	1	Armrest Kit	Lid
45	37M7163	6	Screw	-
46	37M7237	7	Screw	-
47	TA19188	1	Wiring Harness	Ultimate Armrest Components On Separate Pages, LH
48	57M14885	1	Elec. Connector Housing	Armrest / Seat Harness Inline, XX430-1, LH
48	57M11293	9	Elec. Connector Terminal	Cavity 2, 3, 4, 5, 6, 14, 17, 19 and 20
49	57M10362	1	Clamp	-
50	57M9229	2	Clip	-
51	57M7713	1	Electrical Connector Assy	Massage Select Switch, XS197
51	57M9580	2	Elec. Connector Terminal	Cavity 1 and 2
51	57M7718	1	Electrical Connector Assy	-
52	57M7713	1	Electrical Connector Assy	Back Bolster Switch, XS198
52	57M9580	2	Elec. Connector Terminal	Cavity 1 and 2
52	57M7718	1	Electrical Connector Assy	-
53	57M7713	1	Electrical Connector Assy	Massage Intensity Switch, XS196
53	57M7718	1	Electrical Connector Assy	-
53	57M9580	2	Elec. Connector Terminal	Cavity 1 and 2
54	57M7713	1	Electrical Connector Assy	Suspension Firm Adjuster Switch, XS194
54	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
54	57M7718	1	Electrical Connector Assy	-
55	57M7713	1	Electrical Connector Assy	Cushion Length Adjust Switch, XS200
55	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
55	57M7718	1	Electrical Connector Assy	-
56	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
56	57M7718	1	Electrical Connector Assy	-
56	57M7713	1	Electrical Connector Assy	Suspension Height Adjuster Switch, XS201
57	57M14887	1	Elec. Connector Housing	Heat / Vent Intensity Switch, XS202
57	57M7501	3	Elec. Connector Terminal	Cavity 1, 2 and 3
58	57M14886	1	Elec. Connector Housing	Heat / Vent Select Switch, XS202
58	57M7501	3	Elec. Connector Terminal	Cavity 1, 2 and 3
59	57M9555	1	Clip	-
60	57M14490	1	Elec. Connector Housing	-
61	M115279	1	Plug	-

Operator's Seat, Ultimate Active
