Открытый узел

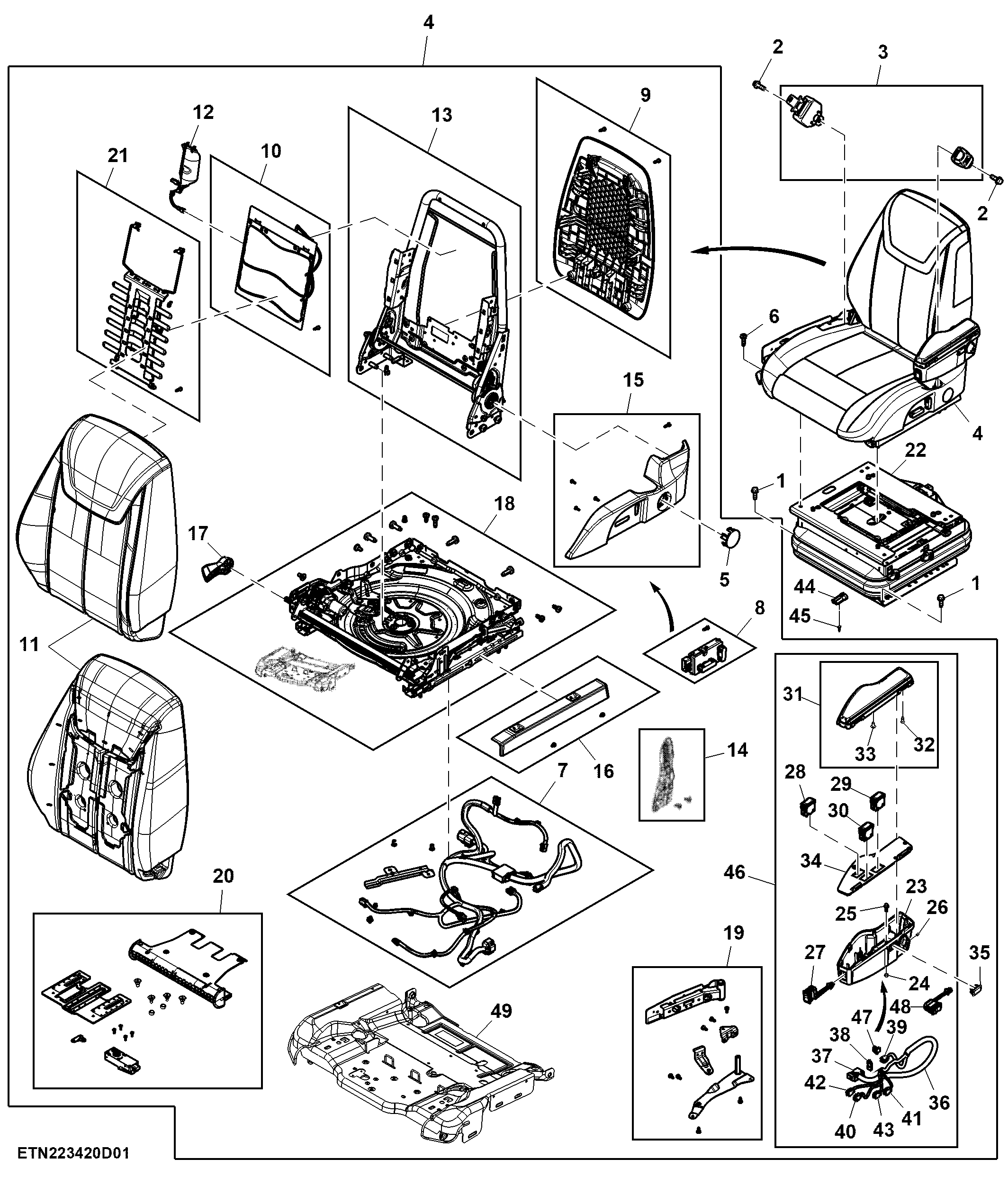

Operator's Seat, Premium, Passive Suspension

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8327	4	Screw	M8 X 25
2	R543772	2	Cap Screw	-
3	RE590504	1	Seat Belt	LGTH = 1296 mm
4	TA19491	1	Seat Assembly	-
5	R566458	1	Cover	-
6	R569386	4	Screw	-
7	TA19487	1	Seat Kit	Seat Harness
8	RE590645	1	Toggle/Rocker Switch	6 - Way Seat Adjust
9	RE590669	1	Panel Kit	-
10	RE590670	1	Seat Kit	Premium Pneumatic Lumbar System
11	RE590692	1	Seat Kit	Premium Back Seat Cushion
12	RE590678	1	Seat Kit	5 Litre Pneumatic Pump
13	RE590683	1	Seat Kit	Premium Back Seat Frame
14	RE590686	1	Seat Kit	Armrest Bracket, LH
15	RE590688	1	Seat Kit	Premium Seatside Shield
16	TA20044	1	Seat Kit	Rail Cover, LH
17	RE590700	1	Seat Kit	Swivel Handle
18	TA19488	1	Seat Kit	Premium / Ultimate Seat Swivel
19	RE590704	1	Seat Kit	Pivoting Command Arm Bracket
20	TA19189	1	Seat Kit	Cushion Length Adjustment
21	RE594003	1	Seat Kit	Lumbar Service
22	TA19562	1	Seat Suspension	Passive
23	TA20817	1	Armrest Kit	INCLUDES (6) 14M7297, (6) 37M7392 AND 22M7095
24	14M7297	6	Nut	M5
25	37M7468	6	Screw	M5 X 20
26	22M7095	1	Set Screw	M5 X 6
27	RE228095	1	Toggle/Rocker Switch	Seat Height
28	RE594010	1	Toggle/Rocker Switch	Cushion Length Adjustment Control
29	RE593851	1	Toggle/Rocker Switch	Lumbar Up / Down Adjustment Control
30	RE593852	1	Toggle/Rocker Switch	Lumbar In / Out Adjustment Control
31	RE590663	1	Armrest Kit	-
32	37M7163	6	Screw	-
33	37M7237	7	Screw	-
34	RE596832	1	Armrest Kit	-
35	M115279	1	Plug	-
36	RE590667	1	Wiring Harness	Premium Armrest, LH
37	57M14885	1	Elec. Connector Housing	Armrest / Seat Harness Inline, S430, LH
37	57M11293	6	Elec. Connector Terminal	Cavity 5, 6, 17, 18, 19 and 20
38	57M10362	1	Clamp	-
39	57M7713	1	Electrical Connector Assy	Suspension Firm Adjuster Switch, S194
39	57M7718	1	Electrical Connector Assy	-
39	57M7548	1	Elec. Connector Terminal	Cavity 2
39	57M9580	3	Elec. Connector Terminal	Cavity 1, 3 and 4
40	57M7713	1	Electrical Connector Assy	Lumbar Up / Down Switch, S204
40	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
40	57M7718	1	Electrical Connector Assy	-
41	57M7713	1	Electrical Connector Assy	Lumbar In / Out Switch, S203
41	57M7718	1	Electrical Connector Assy	-
41	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
42	57M7713	1	Electrical Connector Assy	Suspension Height Adjuster Switch, S201
42	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
42	57M7718	1	Electrical Connector Assy	-
43	57M7713	1	Electrical Connector Assy	Cushion Length Adjust Switch, S200
43	57M9580	4	Elec. Connector Terminal	Cavity 1, 2, 3 and 4
43	57M7718	1	Electrical Connector Assy	-
44	57M14490	1	Elec. Connector Housing	-
45	57M9555	1	Clip	-
46	TA20952	1	Armrest	Active, LH
47	57M9229	2	Clip	-
48	RE165589	1	Toggle/Rocker Switch	Seat Firmness
49	TA19489	1	Seat Kit	Cushion Tilt, Pan

Operator's Seat, Premium, Passive Suspension

Нет текстового описания
