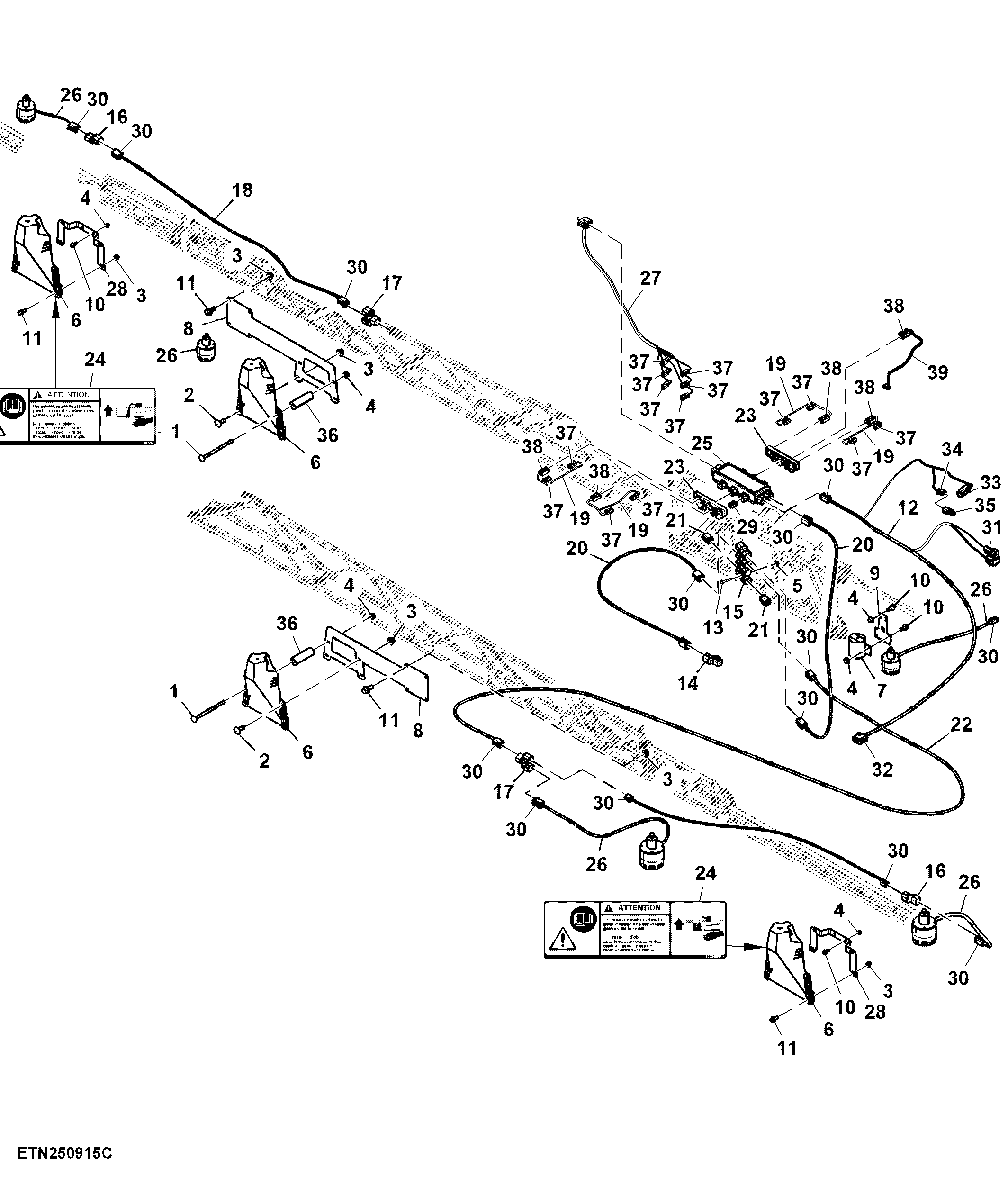

NORAC Height Sensor and Wiring Harness

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7139	2	Bolt	M8 X 130
2	03M7191	6	Bolt	M10 X 25
3	14M7648	22	Flange Nut	M10
4	14M7649	14	Flange Nut	M8
5	14M7744	1	Flange Nut	M6
6	AKK41305	4	Bracket	-
7	AKK41306	1	Bracket	-
8	KK76199	2	Bracket	-
9	KK76200	1	Bracket	-
10	19M9836	12	Screw	M8 X 20
11	19M9845	16	Screw	M10 X 25
12	KK76253	1	Wiring Harness	Floater
13	19M7797	1	Screw	M6 X 40
14	KK76266	1	Electrical Connector Assy	-
15	WZW16962	1	Electrical Connector Assy	-
16	WZW16977	2	Electrical Connector Assy	-
17	WZW16976	2	Electrical Connector Assy	-
18	WZW17610	2	Wiring Harness	Network
19	WZW16988	4	Wiring Harness	Hydraulic
20	KK76256	2	Cable	-
21	WZW16992	3	Elec. Connector Cavity Plug	-
22	KK76257	2	Cable	-
23	KK76260	2	Clip	-
24	KK76263	5	Safety Sign	Caution, Unexpected Movement
25	KK76259	1	Module	-
26	KK84073	5	Sensor	Ultrasonic, SUB FOR WZW18108
27	KK76255	1	Wiring Harness	Valve Floater
28	KK76201	2	Bracket	-
29	WZW16993	1	Elec. Connector Cavity Plug	-
30	57M8012	18	Electrical Connector Assy	-
31	57M7263	1	Elec. Connector Housing	-
32	57M8008	1	Electrical Connector Assy	-
33	57M9746	1	Elec. Connector Housing	-
34	57M7534	1	Elec. Connector Housing	-
35	57M7533	1	Elec. Connector Housing	-
36	T388057	2	Spacer	-
37	57M10517	14	Elec. Connector Housing	-
38	57M8015	5	Electrical Connector Assy	-
39	KK76254	1	Sensor Wiring Harness	-

NORAC Height Sensor and Wiring Harness

Нет текстового описания
