Открытый узел

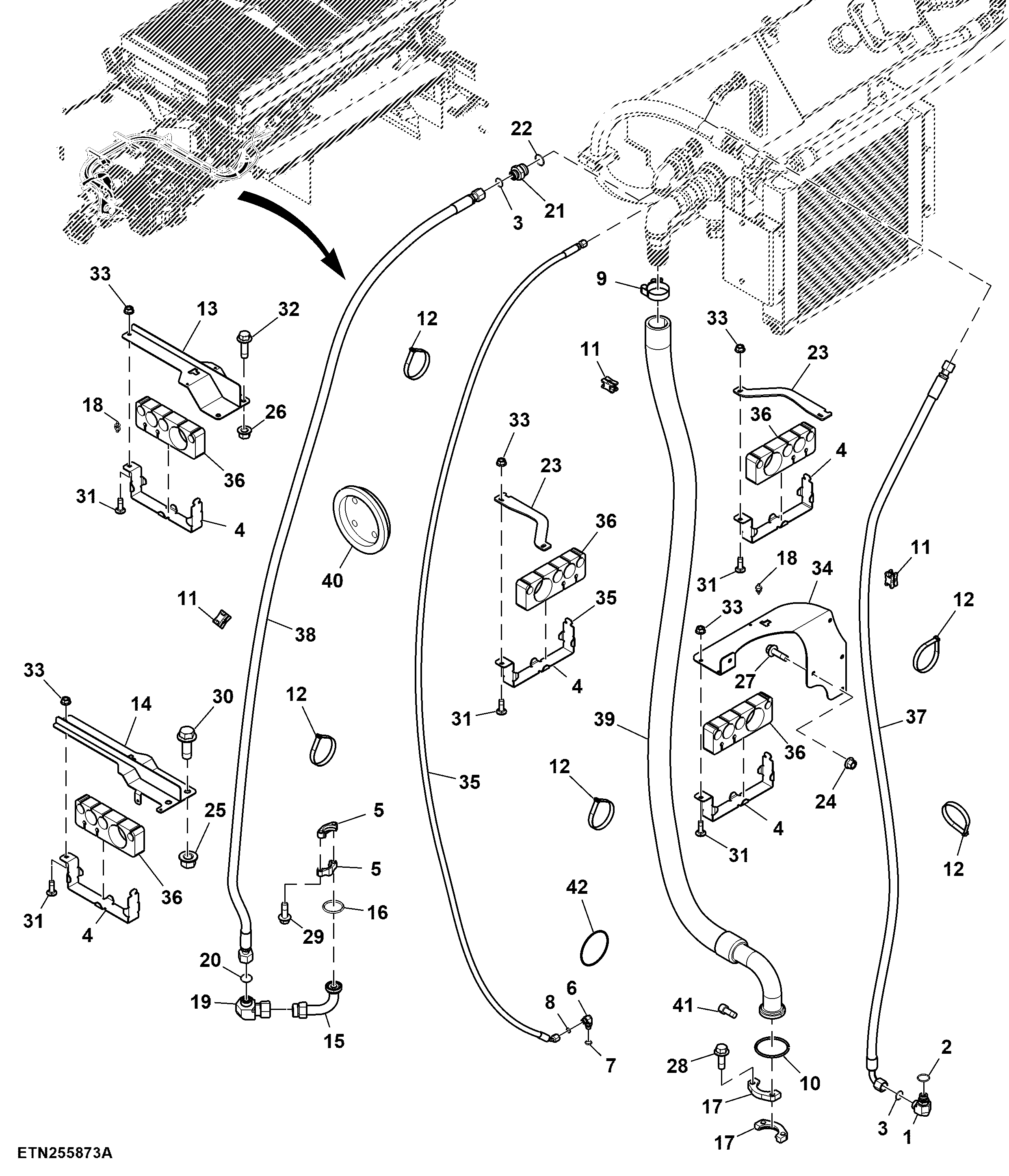

Mountings and Fittings, Hydraulic System, Drybox Spreader

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5335	1	Elbow Fitting	-
2	51M7045	1	O-Ring	19.300 X 2.200 mm
3	T77932	2	O-Ring	-
4	KK27402	5	Bracket	-
5	H61354	2	Flange Fitting	-
6	38H5329	1	Elbow Fitting	-
7	51M7040	1	O-Ring	9.300 X 2.200 mm
8	T77814	1	O-Ring	-
9	AN209544	1	Hose Clamp	-
10	F1870R	1	O-Ring	-
11	AN209168	7	Swivel	-
12	H113197	13	Tie Band	-
13	AKK20112	1	Support	-
14	AKK20111	1	Support	-
15	AT435922	1	Oil Tube	-
16	U12037	1	O-Ring	-
17	R37023	2	Flange Fitting	-
18	RE258807	4	Tie Band	-
19	38H5379	1	Adapter Fitting	-
20	T77858	1	O-Ring	-
21	38H1447	1	Adapter Fitting	-
22	R29936	1	O-Ring	-
23	KK63383	2	Plate	-
24	KK54768	2	Lock Nut	-
25	KK54782	2	Lock Nut	-
26	KK54775	2	Lock Nut	-
27	KK54215	2	Screw	-
28	KK54295	4	Screw	-
29	KK54209	4	Screw	-
30	KK54360	2	Screw	-
31	KK54660	5	Bolt	-
32	KK54298	2	Screw	-
33	KK54763	5	Flange Nut	-
34	KK33040	1	Bracket	-
35	AKK30024	1	Hydraulic Hose	LGTH = 4840 mm, Vinson Drybox Hose
36	KK27201	5	Clamp	-
37	AKK18333	1	Hydraulic Hose	LGTH = 4490 mm, Case Hose Vinson Drybox
38	AKK30023	1	Hydraulic Hose	LGTH = 4625 mm, Pressure Hose Vinson Drybox
39	AKK18331	1	Hydraulic Hose	LGTH = 3740 mm, Suction Hose Vinson Drybox
40	KK28106	1	Adapter	-
41	19M9793	4	Socket Head Screw	M10 X 25
42	T42302	1	O-Ring	-

Mountings and Fittings, Hydraulic System, Drybox Spreader

Нет текстового описания
