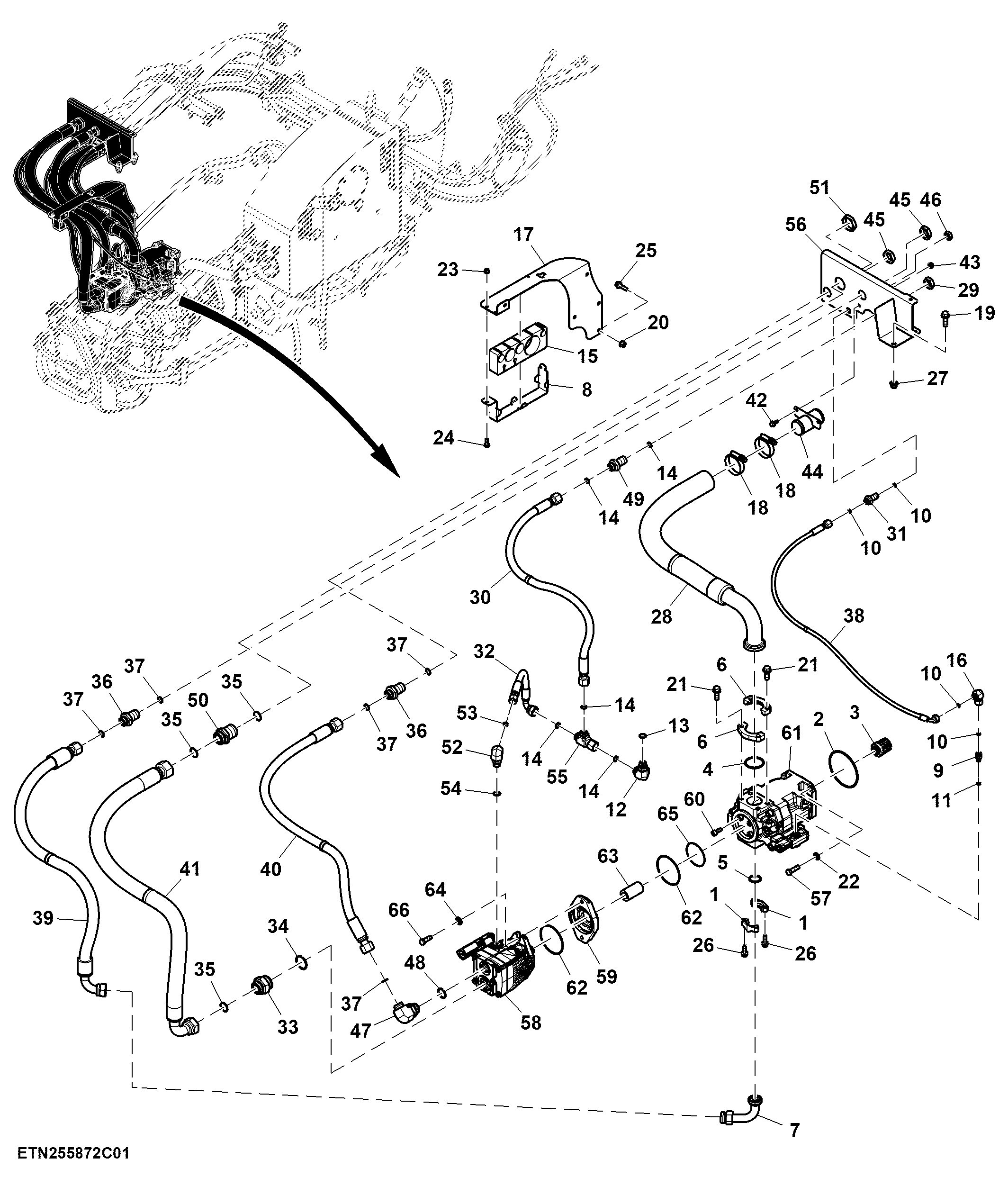

Hydraulic Pump, Chassis, Dual and Four Bin

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H61354	2	Flange Fitting	-
2	F37030250	1	O-Ring	-
3	4028056	1	Splined Coupling	-
4	F1870R	1	O-Ring	-
5	U12037	1	O-Ring	-
6	R37023	2	Flange Fitting	-
7	AT435922	1	Oil Tube	-
8	KK27402	1	Bracket	-
9	38H5318	1	Adapter Fitting	-
10	T77613	4	O-Ring	-
11	51M7040	1	O-Ring	9.300 X 2.200 mm
12	38H5335	1	Elbow Fitting	-
13	51M7045	1	O-Ring	19.300 X 2.200 mm
14	T77932	5	O-Ring	-
15	KK27201	1	Clamp	-
16	38H5287	1	Elbow Fitting	-
17	KK66818	1	Bracket	-
18	RE518716	2	Clamp	-
19	KK54298	2	Screw	-
20	KK54768	2	Lock Nut	-
21	KK54295	4	Screw	-
22	KK54921	4	Washer	-
23	KK54763	1	Flange Nut	-
24	KK54660	1	Bolt	-
25	KK54215	2	Screw	-
26	KK54209	4	Screw	-
27	KK54775	2	Lock Nut	-
28	AKK43341	1	Hydraulic Hose	-
29	38H5354	1	Nut	1"
30	AKK43339	1	Hydraulic Hose	-
31	38H5300	1	Union Fitting	-
32	AKK42411	1	Hydraulic Hose	-
33	38H1595	1	Adapter Fitting	-
34	R26773	1	O-Ring	-
35	T78612	3	O-Ring	-
36	38H5298	2	Union Fitting	-
37	T77858	5	O-Ring	-
38	AKK42414	1	Hydraulic Hose	-
39	AKK43340	1	Hydraulic Hose	-
40	AKK42412	1	Hydraulic Hose	-
41	AKK42413	1	Hydraulic Hose	-
42	KK53905	2	Screw	-
43	KK54762	2	Lock Nut	-
44	AKK43491	1	Line	-
45	38H5355	2	Nut	1-3/16"
46	38H5352	1	Nut	11/16"
47	38H1052	1	Elbow Fitting	-
48	R29936	1	O-Ring	-
49	38H5214	1	Union Fitting	-
50	38H1288	1	Union Fitting	-
51	T78714	1	Nut	-
52	38H3012	1	Elbow Fitting	-
53	T77857	1	O-Ring	-
54	R26906	1	O-Ring	-
55	38H1032	1	Tee Fitting	-
56	AKK44026	1	Support	-
57	19M10869	4	Cap Screw	M12 X 40
58	AKK41028	1	Hydraulic Pump	-
59	KK45936	1	Intermediate Housing	-
60	KK54200	4	Socket Head Screw	-
61	AKK18289	1	Hydraulic Pump	-
62	T42302	2	O-Ring	-
63	T291958	1	Hydr. Quick Coupler Socket	-
64	KK54923	2	Washer	-
65	E65288	1	O-Ring	-
66	KK54289	2	Cap Screw	-

Hydraulic Pump, Chassis, Dual and Four Bin
