Открытый узел

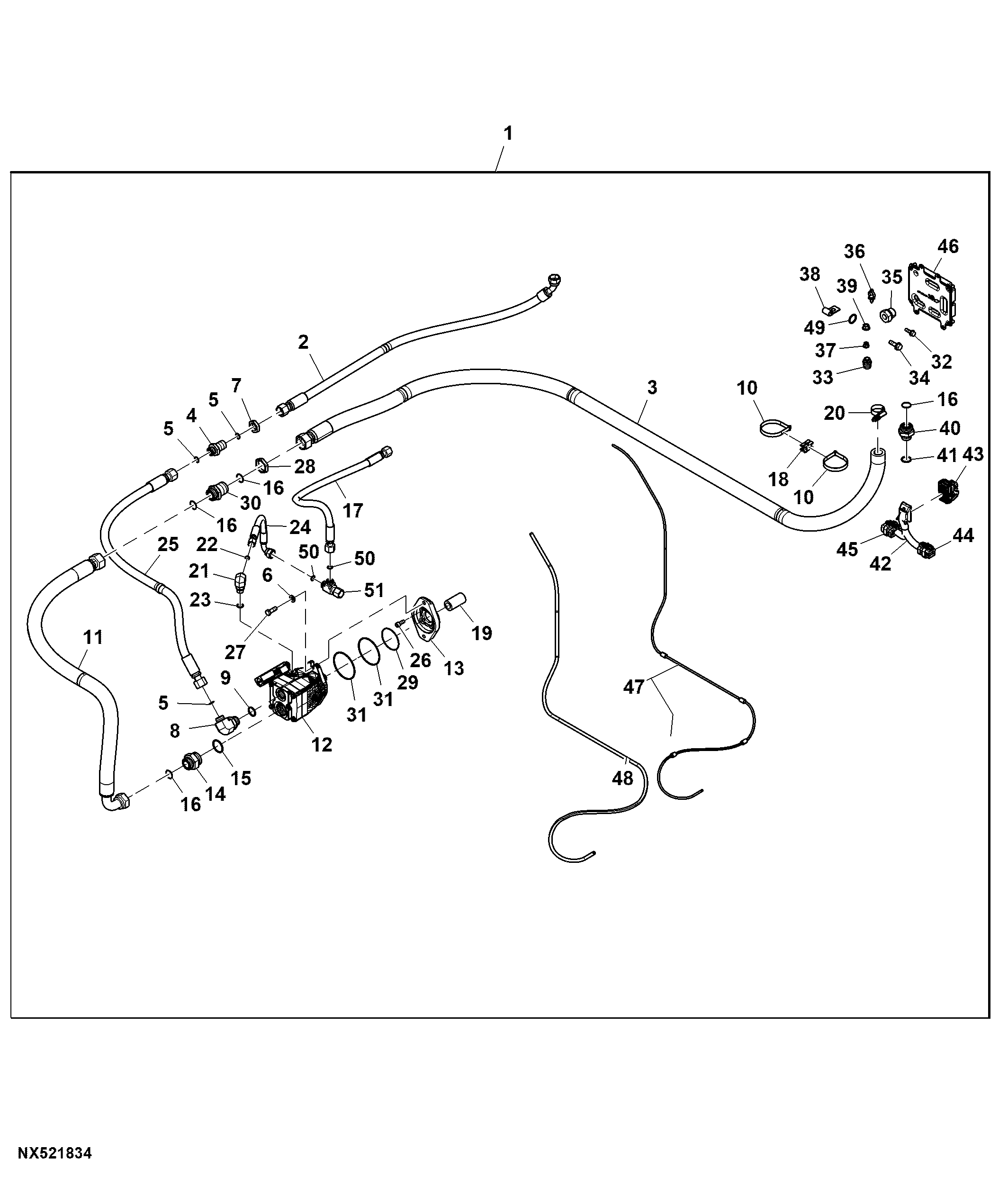

Hydraulic Pump and Hoses, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BKK11678	1	Spreader	-
2	AKK47719	1	Hydraulic Hose	LGTH = 1215 mm, Vinson Drybox Pressure Hose, Secondary Pump
3	AKK43254	1	Hydraulic Hose	LGTH = 2760 mm, Vinson Drybox Pressure Hose, Secondary Pump
4	38H5298	1	Union Fitting	-
5	T77858	3	O-Ring	-
6	KK54923	2	Washer	-
7	38H5355	1	Nut	1-3/16"
8	38H1052	1	Elbow Fitting	-
9	R29936	1	O-Ring	-
10	H113197	2	Tie Band	-
11	AKK42413	1	Hydraulic Hose	LGTH = 1510 mm, Suction Hose, Gear Pump Tank to Gear Type Pump
12	AKK41028	1	Hydraulic Pump	-
13	KK45936	1	Intermediate Housing	-
14	38H1595	1	Adapter Fitting	-
15	R26773	1	O-Ring	-
16	T78612	4	O-Ring	-
17	AKK43339	1	Hydraulic Hose	LGTH = 1095 mm, Case Drain, Axial Piston Pump Fan to Tank
18	AN209168	1	Swivel	-
19	T291958	1	Hydr. Quick Coupler Socket	-
20	RE56097	1	Clamp	-
21	38H3012	1	Elbow Fitting	-
22	T77857	1	O-Ring	-
23	R26906	1	O-Ring	-
24	AKK42411	1	Hydraulic Hose	LGTH = 410 mm, Vinson Drybox Load Sense Hose, Primary Pump
25	AKK42412	1	Hydraulic Hose	LGTH = 1370 mm, Filter Hose
26	KK54200	4	Socket Head Screw	-
27	KK54289	2	Cap Screw	-
28	T78714	1	Nut	-
29	E65288	1	O-Ring	-
30	38H1288	1	Union Fitting	-
31	T42302	2	O-Ring	-
32	19M9404	4	Screw	M6 X 20
33	AN303275	1	Hose Fitting	-
34	19M9837	1	Screw	M8 X 25
35	R501363	1	Hose Fitting	-
36	RE258807	4	Tie Band	-
37	14M7592	1	Lock Nut	M6
38	T116119	1	Clamp	-
39	14M7649	1	Flange Nut	M8
40	38H5525	1	Adapter Fitting	-
41	51M7048	1	O-Ring	29.600 X 2.900 mm
42	AKK18017	1	Wiring Harness	-
43	57M10614	1	Elec. Connector Housing	-
44	57M9756	1	Elec. Connector Housing	-
45	57M9800	1	Elec. Connector Housing	-
46	AKK13048	1	Electronic Control Unit	-
47	AKK17951	1	Tube Kit	-
48	KK26415	1	Conduit	-
49	51M7045	1	O-Ring	19.300 X 2.200 mm
50	T77932	2	O-Ring	-
51	38H1032	1	Tee Fitting	-

Hydraulic Pump and Hoses, Attachment
