Hydraulic Hoses, Dry Spreader, Dual Bin Distribution (2 of 2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30053	4	Screw	-
2	19M9837	1	Screw	M8 X 25
3	KK37238	4	Pin Fastener	-
4	12M7166	1	Lock Washer	10.380 mm
5	19M9962	1	Screw	M8 X 20
6	M177075	1	Lock Washer	-
7	T295912	1	Clamp	-
8	R77175	1	Cover	-
9	38H5287	2	Elbow Fitting	-
10	T77613	19	O-Ring	-
11	38H5352	1	Nut	11/16"
12	12H386	2	Lock Washer	1/2"
13	14M7793	1	Nut	M8
14	24M7401	3	Washer	10.500 X 20 X 2 mm
15	AKK20666	1	Hydraulic Hose	LGTH = 5555 mm, Fan Motor Case
16	19M10283	2	Screw	M10 X 25
17	AKK23425	1	Hydraulic Hose	LGTH = 1480 mm, Conveyor Circuit, LH
18	H224073	2	Tie Band	-
19	AKK21747	2	Hydraulic Motor	-
20	38H5295	1	Tee Fitting	-
21	T77857	6	O-Ring	-
22	AN209168	6	Swivel	-
23	AKK22272	1	Hydraulic Hose	LGTH = 3575 mm, Conveyor Circuit
24	14M7688	1	Flange Nut	M12
25	AKK20459	1	Hydraulic Hose	LGTH = 260 mm, Motor
26	AKK22270	2	Hydraulic Hose	LGTH = 265 mm, Conveyor Circuit
27	38H5363	1	Adapter Fitting	-
28	38H5522	1	Reducer	-
29	51M7042	6	O-Ring	13.300 X 2.200 mm
30	57M10630	5	Clip Kit	-
31	19M9347	1	Screw	M12 X 30
32	38H5500	1	Tee Fitting	-
33	R213627	1	Hose Clamp	-
34	38H5293	2	Tee Fitting	-
35	TCU33336	8	Pin	-
36	19M9847	2	Screw	M10 X 45
37	RE43774	1	Diagnostic Coupling	-
38	T140924	1	Clamp	-
39	T280323	2	Clamp	-
40	KK37034	6	Clamp	-
41	24H1981	2	Washer	11/32" X 3/4" X 0.040"
42	14M7794	1	Nut	M10
43	19M10314	8	Cap Screw	M12 X 30
44	AKK22271	1	Hydraulic Hose	LGTH = 1260 mm, Conveyor Circuit, RH
45	RE337611	1	Check Valve	Screened Fitting
46	38H5319	4	Adapter Fitting	-
47	R530587	1	Hose Clamp	-
48	T77932	2	O-Ring	-
49	KK47170	1	Sealing Ring	-
50	SJ14755	1	Check Valve	Check Valve
51	AKK18990	2	Gear Case	-
52	14M7649	1	Flange Nut	M8
53	24M7294	1	Washer	26 X 39 X 4 mm
54	14M7648	2	Flange Nut	M10
55	AKK35604	1	Hydraulic Hose	LGTH = 3050 mm, Conveyor
56	AKK35474	1	Hydraulic Hose	LGTH = 2600 mm, Conveyor
57	AKK40385	1	Hydraulic Hose	LGTH = 1205 mm, Conveyor Return Manifold
58	38H5730	1	Adapter Fitting	-
59	AKK42655	1	Hydraulic Hose	LGTH = 4105 mm, Motor
60	T27550	1	Clip	-
61	38H5354	1	Nut	1"
62	RE258807	5	Tie Band	-
63	H113197	4	Tie Band	-
64	57M11061	1	Clip Kit	-
65	AKK42592	1	Bracket	-
66	AKK27670	1	Adapter Fitting	-
67	61M5730	1	Adapter Fitting	-
68	AKK47654	2	Solenoid Valve	Air Boom
69	38H1667	2	Elbow Fitting	-
70	R28782	2	O-Ring	-

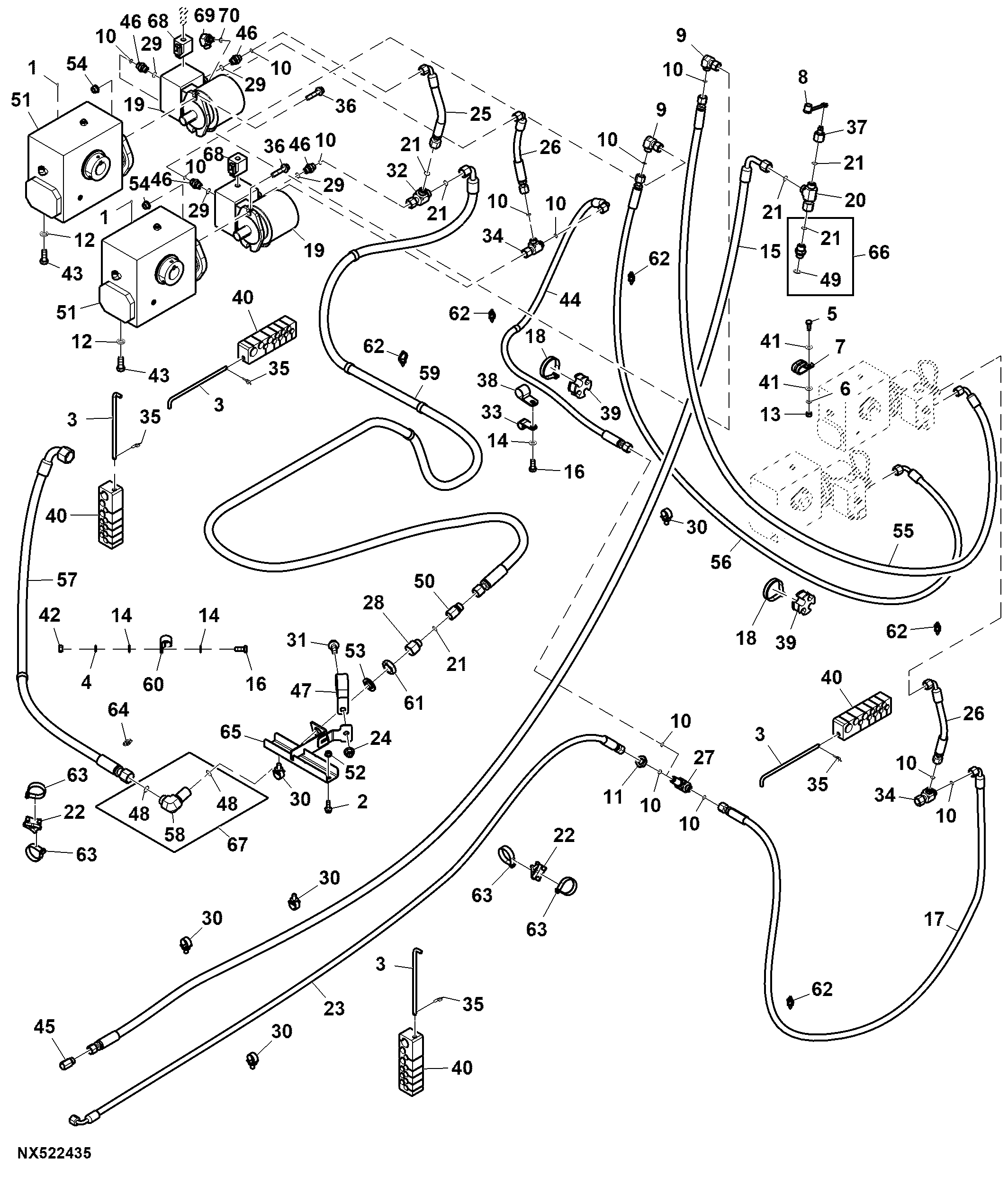

Hydraulic Hoses, Dry Spreader, Dual Bin Distribution (2 of 2)
