Hydraulic Hoses and Pump, Chassis, Single Bin

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F1870R	1	O-Ring	-
2	AKK44026	1	Support	-
3	KK66818	1	Bracket	-
4	H61354	2	Flange Fitting	-
5	KK54763	1	Flange Nut	-
6	38H5318	1	Adapter Fitting	-
7	T77613	4	O-Ring	-
8	51M7040	1	O-Ring	9.300 X 2.200 mm
9	AKK43491	1	Line	-
10	U12037	1	O-Ring	-
11	KK27201	1	Clamp	-
12	38H5300	1	Union Fitting	-
13	KK54921	4	Washer	-
14	KK54215	2	Screw	-
15	R37023	2	Flange Fitting	-
16	KK54660	1	Bolt	-
17	KK27402	1	Bracket	-
18	4028056	1	Splined Coupling	-
19	38H5287	1	Elbow Fitting	-
20	RE518716	2	Clamp	-
21	38H5354	1	Nut	1"
22	38H5335	1	Elbow Fitting	-
23	51M7045	1	O-Ring	19.300 X 2.200 mm
24	T77932	3	O-Ring	-
25	KK53905	2	Screw	-
26	KK54295	4	Screw	-
27	F37030250	1	O-Ring	-
28	KK54209	4	Screw	-
29	KK54298	2	Screw	-
30	AKK18289	1	Hydraulic Pump	-
31	R526877	4	Cap Screw	-
32	38H5298	1	Union Fitting	-
33	T77858	2	O-Ring	-
34	KK54762	2	Lock Nut	-
35	KK54768	2	Lock Nut	-
36	AT435922	1	Oil Tube	-
37	KK54775	2	Lock Nut	-
38	AKK43341	1	Hydraulic Hose	Pump Suction Tank to Axial Piston Pump, LGTH = 1005 mm
39	AKK43340	1	Hydraulic Hose	Pressure Fan Valve, LGTh = 1290 mm
40	AKK42414	1	Hydraulic Hose	Primary Pump to Load Sense Vinson Drybox, LGTH = 1393 mm
41	AKK43625	1	Hydraulic Hose	LGTH = 1050 mmCase Drain, Axial Piston Pump Fan to Tank
42	38H5352	1	Nut	11/16"
43	38H5355	1	Nut	1-3/16"
44	38H5214	1	Union Fitting	-

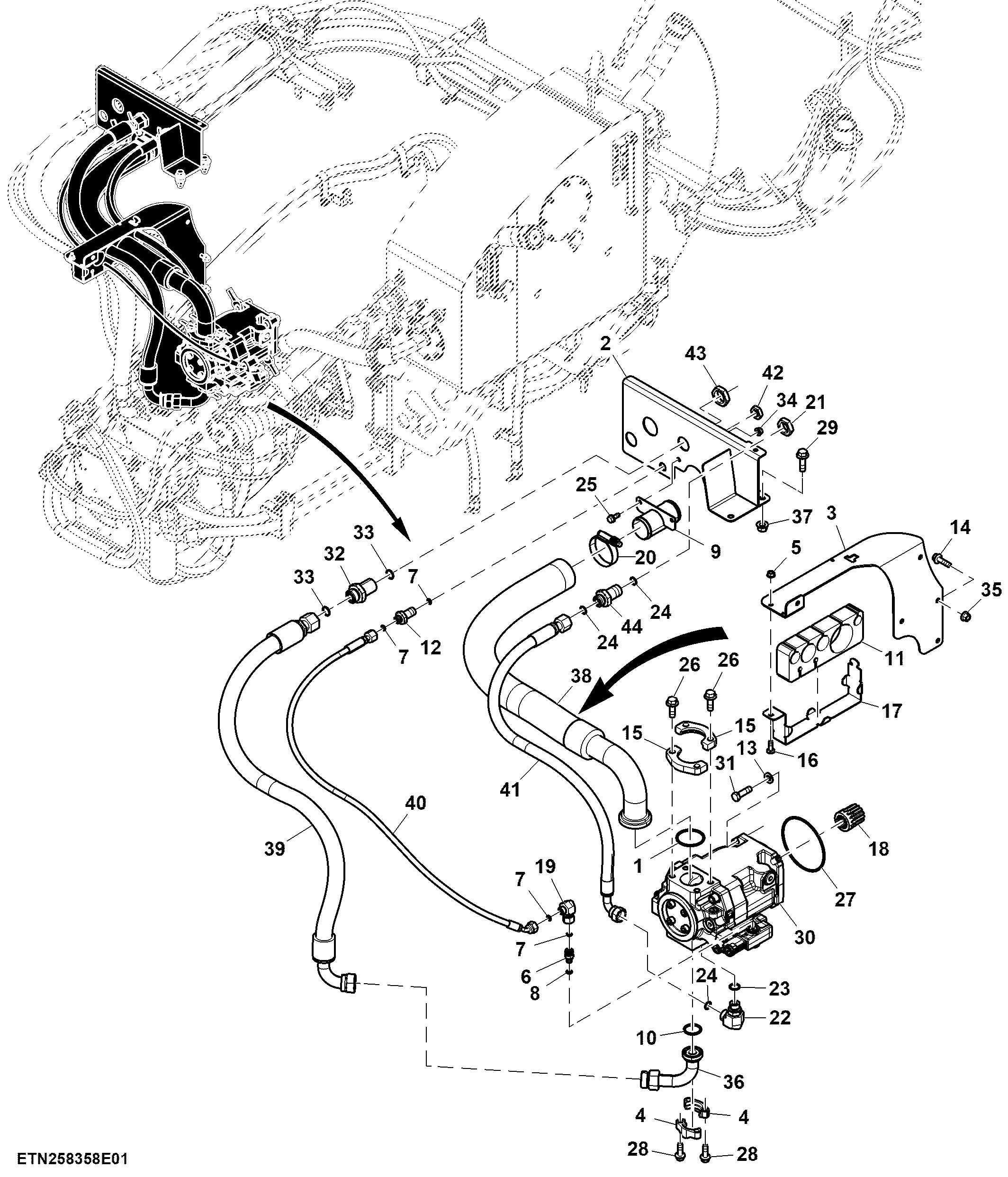

Hydraulic Hoses and Pump, Chassis, Single Bin
