Auxiliary Hydraulic Pump Hoses and Fittings

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE56097	2	Clamp	-
2	57M10630	5	Clip Kit	-
3	19M10869	4	Cap Screw	M12 X 40
4	H61354	2	Flange Fitting	-
5	AKK15833	2	Hydraulic Hose	Charge Pump Suction Line
6	38H5327	1	Adapter Fitting	-
7	T77858	2	O-Ring	-
8	51M7047	2	O-Ring	23.600 X 2.900 mm
9	U12037	1	O-Ring	-
10	KK54921	4	Washer	13 X 24 X 2.500 mm (0.512" X 0.945" X 0.098")
11	F1870R	1	O-Ring	-
12	R37023	2	Flange Fitting	-
13	38H5326	1	Adapter Fitting	-
14	T77932	2	O-Ring	-
15	KK54295	4	Screw	M12 X 35
16	KK54209	4	Screw	M10 X 30
17	38H5324	1	Adapter Fitting	-
18	51M7045	1	O-Ring	19.300 X 2.200 mm
19	KK54762	2	Lock Nut	M8
20	F37030250	1	O-Ring	-
21	AKK15827	1	Hydraulic Pump	Component On Separate Page, Axial Piston
22	19H4022	2	Screw	1/2" X 1-3/8"
23	AKK19804	2	Hydraulic Pump	Component On Separate Page, Double Gear
24	AKK12338	2	Hose Clamp	-
25	KK53932	2	Screw	M8 X 25
26	KK32614	1	Bracket	-
27	AKK21367	1	Hydraulic Hose	Auxiliary Case Drain
28	AKK21353	1	Hydraulic Hose	Charge Pump To Filter
29	AKK21349	1	Hydraulic Hose	Auxiliary Pressure
30	AKK21352	1	Hydraulic Hose	Charge Pump To Filter
31	AKK21366	1	Hydraulic Hose	Axial Pump Suction Line
32	AKK21354	1	Hydraulic Hose	Charge Pump To Filter
33	R213663	1	Clamp	-
34	38H5318	1	Adapter Fitting	-
35	38H5532	1	Elbow Fitting	-
36	38H5534	1	Adapter Fitting	-
37	38H5525	1	Adapter Fitting	-
38	38H5506	1	Tee Fitting	-
39	T77814	1	O-Ring	-
40	T78612	3	O-Ring	-
41	51M7040	1	O-Ring	9.300 X 2.200 mm
42	51M7048	2	O-Ring	29.600 X 2.900 mm
43	38H5337	1	Elbow Fitting	-
44	T42302	2	O-Ring	-
45	KK54918	4	Washer	10.500 X 30 X 2.500 mm (0.413" X 1.181" X 0.098")
46	T77613	1	O-Ring	-

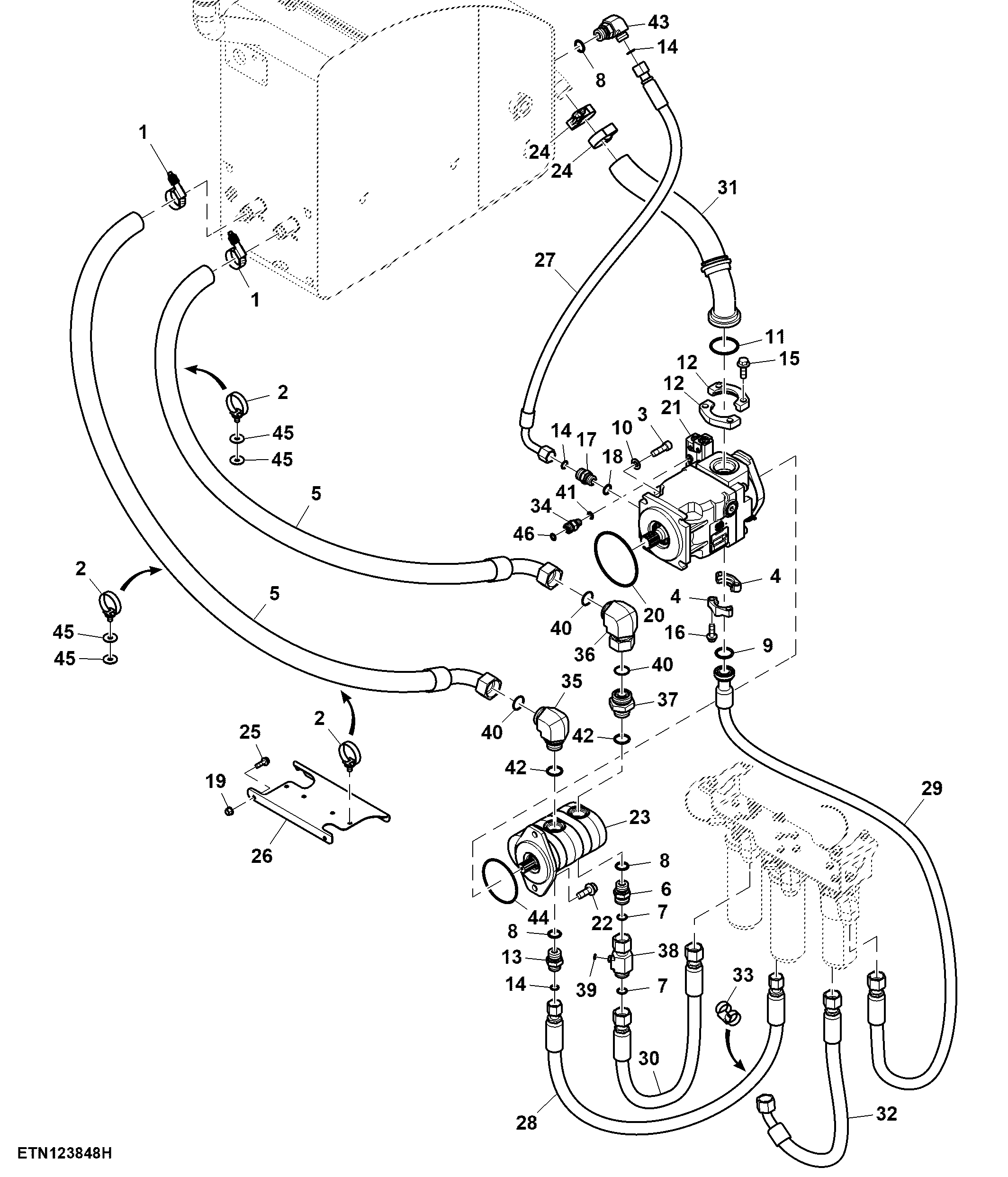

Auxiliary Hydraulic Pump Hoses and Fittings
