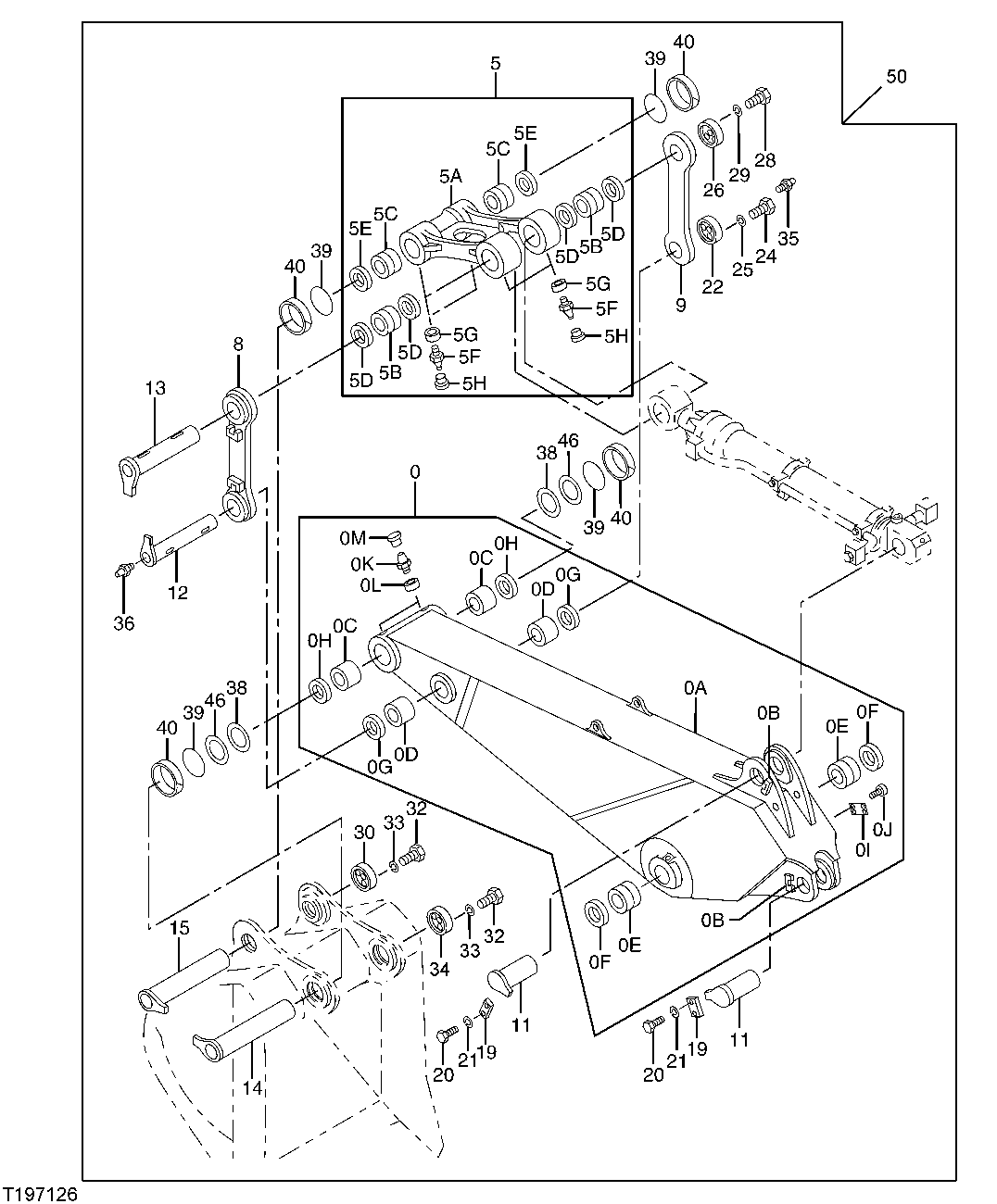

MASS EXCAVATING AND BULK EXCAVATING ARM 2.95M

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9213997	1	Arm	Mass Excavating Arm For Bulk Excavating Arm, F/N:RB001-RB002
0	9233515	1	Arm	Bulk Excavating Arm For Bulk Excavating Arm, F/N:RB003 AND ABOVE
5	9205875	1	Link	For Bulk Excavating Arm
5	9206144	1	Link	For Mass Excavating Arm
8	8086908	1	Link	For Bulk Excavating Arm
8	8065547	1	Link	For Mass Excavating Arm
9	8085373	1	Link	For Bulk Excavating Arm
9	8065548	1	Link	For Mass Excavating Arm
11	8067795	2	Pin Fastener	-
12	8067798	1	Pin Fastener	-
13	8085461	1	Pin Fastener	(SUB FOR 8067801)
14	8091252	1	Pin	For Bulk Excavating Arm
14	8065105	1	Pin Fastener	For Mass Excavating Arm
15	8091253	1	Pin	For Bulk Excavating Arm
15	8085571	1	Pin Fastener	For Mass Excavating Arm
0A	-	1	Part 2	( 5004847 AND 5009215 NLA)
0B	4379221	2	Stop	-
0C	3100789	2	Bushing	For Bulk Excavating Arm, F/N:RB003 AND ABOVE
0C	3074245	2	Bushing	Use With Mass Excavating Arm For Bulk Excavating Arm, F/N:RB001-RB002
0D	4129729	2	Bushing	-
0E	4218719	2	Bushing	-
0F	4251766	2	Seal	For Bulk Excavating Arm
0F	4251753	2	Seal	For Mass Excavating Arm
0G	4251212	2	Seal	(SUB FOR AT202303)
0H	4251766	2	Seal	-
0I	-	2	Part 10	( 4454761 NLA)
0J	37H99	4	Screw	0.100" X 1/4"
0K	TH100074	2	Lubrication Fitting	-
0L	4130686	1	Bushing	-
0M	4105912	2	Cap	-
5A	7041049	1	Link	For Bulk Excavating Arm
5A	1029818	1	Link	For Mass Excavating Arm
5B	4234708	2	Bushing	-
5C	4461278	2	Bushing	-
5D	4251753	4	Seal	-
5E	4251767	2	Seal	-
5F	TH100074	4	Lubrication Fitting	-
5G	4130686	4	Bushing	(SUB FOR AT217082)
5H	4105912	4	Cap	(SUB FOR AT217081)

MASS EXCAVATING AND BULK EXCAVATING ARM 2.95M
