Открытый узел

LABELS AND DECALS

LABELS AND DECALS

LABELS AND DECALS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

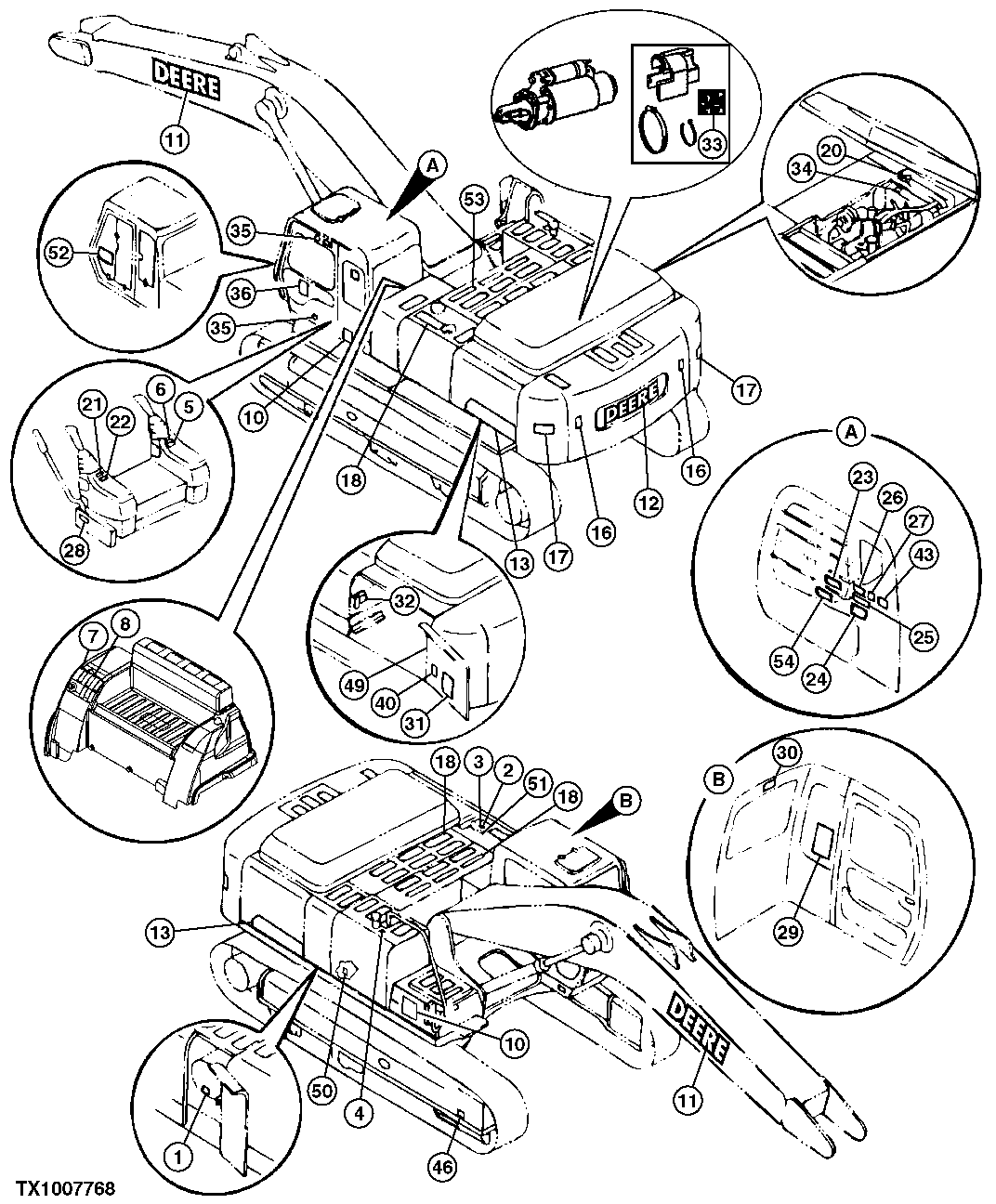

LABELS AND DECALS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T302226	1	Safety Sign	(AIR CLEANER) No Text, SUB FOR R56902
1	-	1	Part 1	(AIR CLEANER), R56902 NLA, ORDER T302226
2	P63448	1	Label	(SUB FOR <service-part qty="1">AT155733</service-part>)(PUMP BLEED INFORMATION)
3	T101942	1	Label	(HYDRAULIC OIL ONLY)
4	T79632	1	Label	(DIESEL ONLY)
5	4264805	1	Label	(IGNITION KEY SWITCH)
6	-	1	Part 7	(SUB FOR <service-part qty="1">T159842</service-part>, THIS APPLICATION ) (SUB <service-part qty="1">T201519</service-part>)(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)
6	T159843	1	Label	(RIGHT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)
7	T187644	1	Label	PRECISION MODE
8	T187645	1	Label	BOOM SELECTOR MODE
10	JD5760	2	Label	(LEAPING DEER)
11	T183547	2	Label	(DEERE - ON BOOM)
12	T183547	1	Label	(DEERE - ON COUNTERWEIGHT)
13	T188823	1	Label	(800C) (MODEL DESIGNATION)
13	T188822	1	Label	(800C) (MODEL DESIGNATION)
16	T161266	2	Reflector	(RED)
17	T248455	2	Label	(SUB FOR <service-part qty="1">T147008</service-part>, <service-part qty="1">2035960</service-part> OR <service-part qty="1">2035960R</service-part >)WARNING (STAY CLEAR)
18	H21259	24	Mat	(ANTI-SKID) OPERATORS DECK
20	T146671	1	Safety Sign	CAUTION (PRESSURIZED) (RADIATOR CAP)
21	-	1	Part 20	(SUB <service-part qty="1">T201519</service-part> ) (SUB FOR <service-part qty="1">T159841</service-part>, THIS APPLICATION)(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)
21	T159844	1	Label	(LEFT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)
22	4288971	1	Label	(ETHER AID / MOTION CANCEL)
23	T187536	1	Label	ENGINE START/STOP
24	T159887	1	Safety Sign	CAUTION (READ OPERATOR'S MANUAL)
25	T146668	1	Safety Sign	WARNING (CRUSHING ARTICULATION)
26	T146667	1	Safety Sign	DANGER (ELECTROCUTION)
27	T387695X19	1	Label	(SUB FOR <service-part qty="1">T157809</service-part>)IMPORTANT (BREAK WINDOW FOR SECONDARY EXIT), SUB FOR T190393
28	4299059	1	Label	HYDRAULIC LOCKOUT
29	T188861	1	Label	LIFT CAPACITY
29	T204255	1	Label	LIFT CAPACITY (USE WITH MINING FRONT)
30	T187535	1	Label	CAUTION (WINDOW LOCK) (FRONT)
30	T190799	1	Safety Sign	CAUTION (WINDOW LOCK) (FRONT) (FR)
30	T190803	1	Label	CAUTION (WINDOW LOCK) (FRONT) (SP)
31	T218248	1	Label	(SUB FOR <service-part qty="1">T188860</service-part> OR <service-part qty="1">T208053</service-part>)PERIODIC MAINTENANCE
32	T149983	1	Label	IMPORTANT (OIL LEVEL)
33	T146102	1	Label	DANGER (BYPASS START)
34	T152657	1	Safety Sign	IMPORTANT (RESERVOIR)
35	T187642	2	Label	DOOR
36	-	1	Part 39	LIFTING (NLA)
40	T152593	1	Label	IMPORTANT (COUNTERWEIGHT REMOVAL)
43	4266386	1	Label	(TRACK FRAME) 992D-LC
46	-	1	Part 42	AN ARROW (NLA)
49	4241586	1	Label	(UP-DOWN)
50	T183425	1	Label	WARNING (ACCUMULATOR)
51	T187710	1	Label	CAUTION (HYDRAULIC RESERVOIR OIL CAP)
51	T190801	1	Label	CAUTION (HYDRAULIC RESERVOIR OIL CAP) FRENCH
51	T190802	1	Label	CAUTION (HYDRAULIC RESERVOIR OIL CAP) SPANISH
52	T188737	1	Label	VANDAL COVER INSTALLATION INSTRUCTIONS
53	T25838	5	Mat	(ANTI-SKID)
54	T201519	1	Label	(SUB FOR <service-part qty="1">T159842</service-part>, <service-part qty="1">T159841</service-part>)OPERATOR PATTERN
