Открытый узел

Hydraulic Boom Cylinder, Left

Hydraulic Boom Cylinder, Left

Hydraulic Boom Cylinder, Left

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

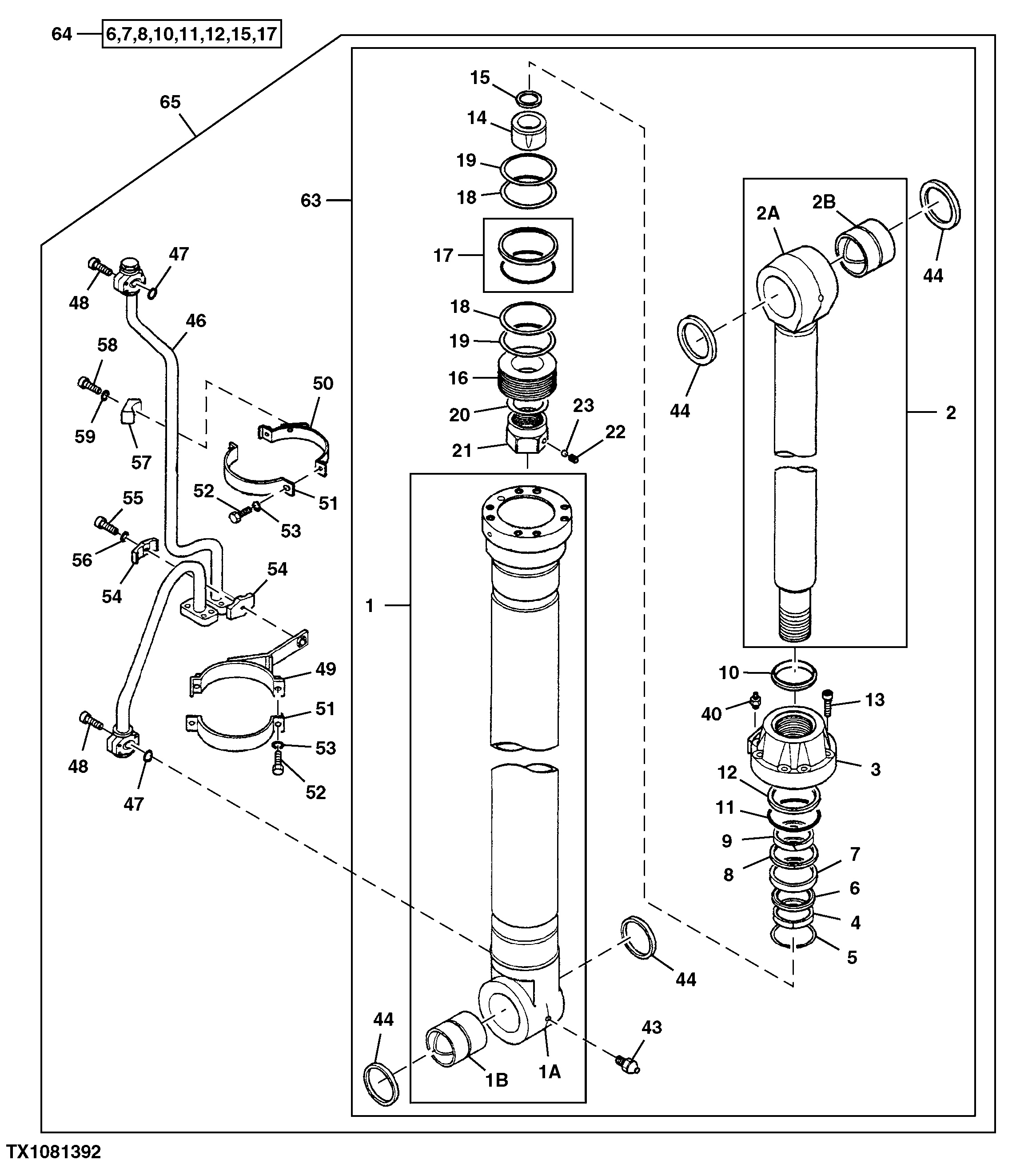

Hydraulic Boom Cylinder, Left

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4391318	1	Hydraulic Cylinder Barrel	-
1	-	1	Part 4	PG201417 NLA, ORDER 4391318, REMAN
2	4391319	1	Rod	-
2	-	1	Part 8	PG201419 NLA, ORDER 4391319, REMAN
3	0645004	1	Hydr. Cylinder Rod Guide	-
4	0379806	1	Bushing	-
5	0191415	1	Snap Ring	-
6	0645011	1	Ring	SUB FOR 0417405 OR 4S01020
7	0977904	1	Packing	SUB FOR 4094949, THIS APPLICATION
8	0242505	1	Back-Up Ring	-
9	0417406	1	Ring	SUB FOR 4S01015
10	0977905	1	Ring	SUB FOR 0242506 OR 4438196
11	AT122160	1	O-Ring	SUB FOR A811190
12	0257007	1	Ring	SUB FOR 4S00084
13	4104472	8	Bolt	-
14	0702502	1	Bushing	-
15	0645006	1	Seal	SUB FOR 4S01018
16	0702503	1	Piston	-
17	0257010	1	Ring	SUB FOR 4S00085
18	0645008	2	Ring	SUB FOR 4S00856
19	4199817	2	Ring	SUB FOR 4S00098
20	0379813	1	Shim	-
21	0379814	1	Nut	-
22	0379815	1	Set Screw	-
23	0109124	1	Ball	-
40	0643016	1	Bleed Valve	-
43	0380010	1	Lubrication Fitting	-
44	4251767	4	Seal	-
45	-	1	Part 33	Units Built Before January 2003, 0498101 NLA; SUB TH0906001; ALSO ORDER TH0906002 AND (8) 19M8734
45	TH0906001	1	Line	Units Built January 2003 and After, 0906001 NLA
46	-	1	Part 35	Units Built Before January 2003, 0444902 NLA; SUB TH0906002; ALSO ORDER TH0906001 AND (8) 19M8734
46	TH0906002	1	Line	Units Built January 2003 and After, 0906002 NLA
47	AT264254	2	O-Ring	SUB FOR 955612
48	19M8734	8	Screw	M14 X 45, Units Built January 2003 and After, USE WITH TH0906001 AND TH0906002; SUB FOR 0158883
48	0171719	8	Cap Screw	Units Built Before January 2003, USE WITH 0498101 AND 0444902
49	0379703	1	Clamp	-
50	0379819	1	Clamp	-
51	0379820	2	Clamp	-
52	19M7550	4	Cap Screw	M10 X 35, SUB FOR 0408815
53	12M7066	4	Lock Washer	10 mm, SUB FOR 0325913
54	0379821J	2	Half Clamp	SUB FOR 0379821
55	0417614	1	Bolt	-
56	0168014	1	Spring Washer	-
57	0972307	1	Clamp	SUB FOR 0353016 OR 0353016J
58	19M4789	1	Cap Screw	M14 X 80, SUB FOR 0254312
59	12H317	1	Lock Washer	9/16", SUB FOR A590914
63	4391320JEX	1	Hydraulic Cylinder Reman	Remanufactured, SUB FOR 4391320
64	4660036	1	Seal Kit	-
64	-	1	Part 52	SUB 4660036; ALSO ORDER 4S01018; 4438684 NLA
65	4331076	1	Cylinder	-
1A	-	1	Part 2	NSEP
1B	4609098	1	Bushing	SUB FOR 0702501
2A	-	1	Part 6	NSEP
2B	4660858	1	Bushing	SUB FOR 0444801
