Открытый узел

HEAVY DUTY ARM 3.6M

HEAVY DUTY ARM 3.6M

HEAVY DUTY ARM 3.6M

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

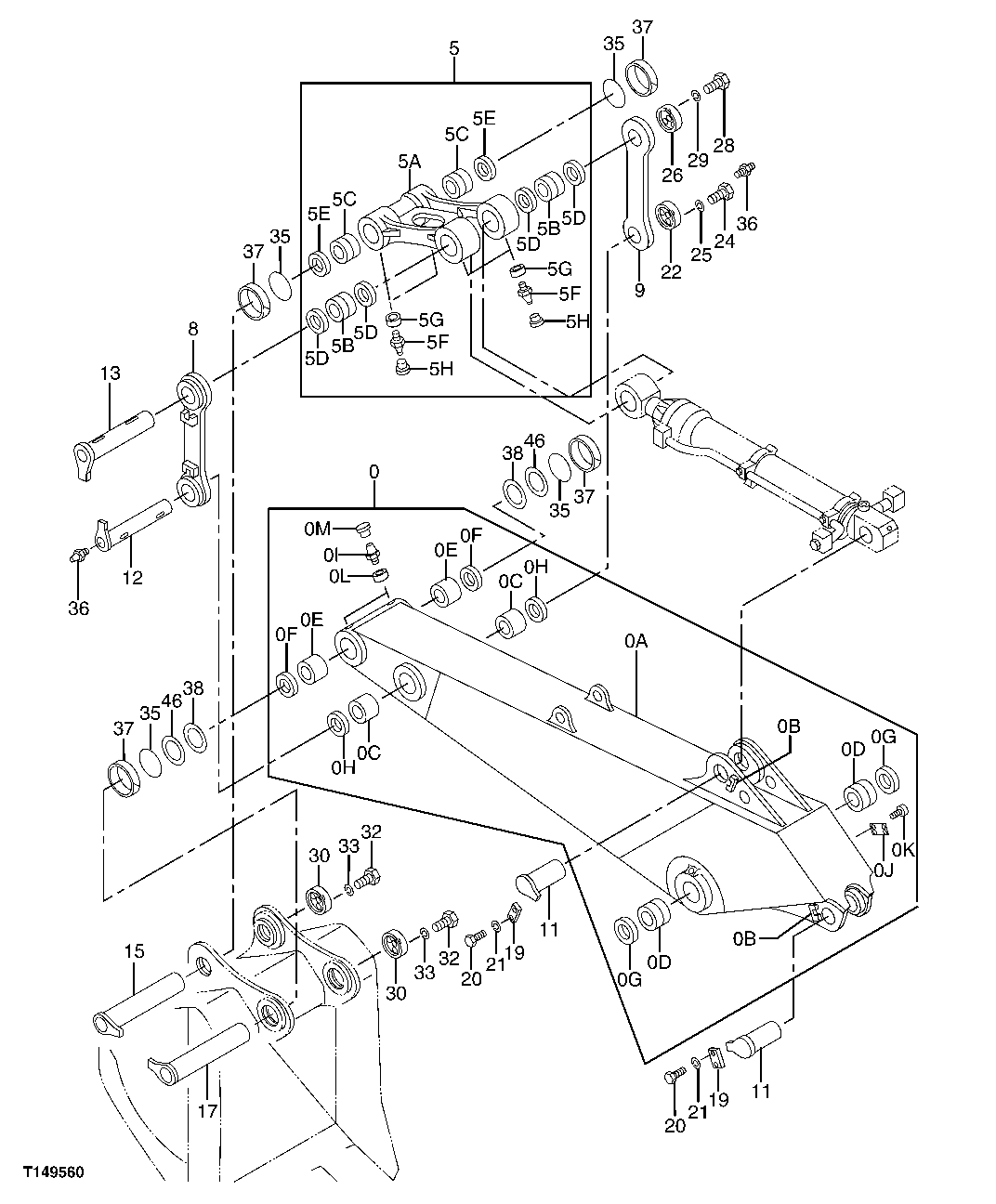

HEAVY DUTY ARM 3.6M

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9206143	1	Arm	For HD Arm
0	9233746	1	Arm	For Reinforced HD Arm
5	9205875	1	Link	For Reinforced HD Arm
5	9206144	1	Link	For HD Arm
8	8086908	1	Link	For Reinforced HD Arm
8	8065547	1	Link	For HD Arm, (SUB FOR TH8065547)
9	8085373	1	Link	For Reinforced HD Arm
9	8065548	1	Link	For HD Arm, (SUB FOR TH8065548)
11	8067795	2	Pin Fastener	(SUB FOR TH8067795)
12	8067798	1	Pin Fastener	(SUB FOR TH8067798)
13	8085461	1	Pin Fastener	(SUB FOR TH8067801 AND 8067801)
15	8085602	1	Pin	For Reinforced HD Arm
15	8085571	1	Pin Fastener	For HD Arm
17	8058964	1	Pin Fastener	For HD Arm, (SUB FOR TH8058964)
17	8083180	1	Pin	For Reinforced HD Arm
19	4122729	2	Strap	(SUB FOR AT131696)
20	19M7950	4	Cap Screw	M20 X 45
21	12M7070	4	Lock Washer	20 mm
22	4393378J	1	Stop	(SUB FOR TH4393378 OR 4393378)
24	J241645	3	Bolt	(SUB FOR THM111645 OR M111645)
25	12H294	3	Lock Washer	5/8"
26	4393383	1	Stop	-
28	19M7950	3	Cap Screw	M20 X 45
29	12M7070	3	Lock Washer	20 mm
30	4387180	2	Stop	For Reinforced HD Arm
30	4393381	2	Stop	For HD Arm
32	19M7950	6	Cap Screw	M20 X 45, For HD Arm
32	4295167	2	Cap Screw	For Reinforced HD Arm
33	12M7070	6	Lock Washer	20 mm, For HD Arm
33	14M7277	4	Nut	M20, For Reinforced HD Arm
35	4487585	4	O-Ring	(SUB FOR TH4247424 AND 4247424)
36	TH100074	2	Lubrication Fitting	-
37	-	4	Part 55	( 4252730 NLA), (SUB FOR TH4252730)
38	4379158	2	Thrust Washer	(SUB FOR TH4379158)
46	4379157	2	Thrust Washer	(SUB FOR TH4379157)
50	AT188508	1	Arm	WHOLE GOODS (INCLUDES ARM, BUCKET CYLINDER, HOSES, AND LINKAGE) (DOES NOT INCLUDE BUCKET) (NOT ILLUSTRATED)
0A	-	1	Part 2	-
0B	4379221	2	Stop	(SUB FOR TH4379221)
0C	4129729	2	Bushing	-
0D	4218719	2	Bushing	(SUB FOR TH4129729)
0E	4421175	2	Bushing	-
0F	4254520	2	Seal	-
0G	4251766	2	Seal	(SUB FOR AT202303)
0H	4251212	2	Seal	(SUB FOR TH4251766)
0I	TH100074	2	Lubrication Fitting	-
0J	4454761	1	Plate	(SUB FOR AT217082)
0K	37H99	2	Screw	0.100" X 1/4", (SUB FOR AT217081)
0L	4130686	2	Bushing	-
0M	4105912	2	Cap	-
5A	7041049	1	Link	For Reinforced HD Arm
5A	1029818	1	Link	For HD Arm
5B	4234708	2	Bushing	(SUB FOR TH4234708)
5C	4461278	2	Bushing	-
5D	4251753	4	Seal	(SUB FOR TH4251753)
5E	4251767	2	Seal	(SUB FOR TH4251767)
5F	TH100074	4	Lubrication Fitting	-
5G	4130686	4	Bushing	(SUB FOR AT217082)
5H	4105912	4	Cap	(SUB FOR AT217081)
