CAB COMPONENTS (CAB ROOF, CAB WINDOWS AND HANDRAILS)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9205229	1	Cab	Contains All Items On This Page - Additional Components Listed On Separate Pages (SUB FOR <service-part qty="1">TH9205229</service-part> PAGES))
2	4456177	1	Cover	(SUB FOR TH4456177)
3	4456178	1	Cover	(SUB FOR TH4456178)
4	4456179	2	Bolt	(SUB FOR TH4456179)
5	4456181	2	Bracket	(SUB FOR TH4456181)
6	-	1	Part 6	(4602580 NLA), Bronze, (SUB FOR 4468944 OR TH4468944 OR 4448311 ) (SUB 4602567)
6	4602567	1	Windowpane	Green
7	4400079	1	Seal	(SUB FOR AT218190)
8	4456183	1	Isolator	(SUB FOR TH4456183)
9	4602569R	1	Windowpane	(SUB FOR TH4448314, 4448314 OR 4602569)
10	4474300	1	Pipe	-
11	4456185	1	Nut	(SUB FOR TH4456185)
16	12M7066	4	Lock Washer	10 mm
16	24M7028	4	Washer	10.500 X 20 X 2 mm
16	19M7402	4	Cap Screw	M10 X 25
17	4456182	1	Isolator	(SUB FOR TH4456182)
18	4414857	1	Nut	(SUB FOR AT157068)
19	4448319	1	Isolator	(SUB FOR TH4448319)
20	19M8425	1	Cap Screw	M6 X 16
20	24H1287	1	Washer	9/32" X 5/8" X 0.065"
20	12M7006	1	Lock Washer	6 mm
22	4453667	1	Isolator	(SUB FOR TH4453667)
25	4456175	2	Isolator	(SUB FOR TH4456175)
26	4474298J	1	Handrail	(SUB FOR 4474298)
29	4456184	1	Isolator	(SUB FOR TH4456184)
30	4372224	5	Screw With Washer	(SUB FOR AT214310)
31	4453663	1	Handrail	(SUB FOR TH4453663)(UNITS BUILT BEFORE SEPTEMBER 2002)
31	4668617	1	Handrail	(UNITS BUILT SEPTEMBER 2002 AND AFTER)
37	21M7246	2	Screw	M6 X 16
37	12M7006	2	Lock Washer	6 mm
37	24M7293	2	Washer	6.500 X 13 X 1.600 mm
41	4304827	2	Bumper	(SUB FOR AT156970)
45	4369568	1	Grommet	(SUB FOR AT214078)
47	4474299	1	Cover	-
55	4369675	2	Isolator	(SUB FOR AT214173)
56	24H1305	2	Washer	13/32" X 13/16" X 0.065"
56	12M7066	2	Lock Washer	10 mm
56	19M7550	2	Cap Screw	M10 X 35
59	4320163	2	Screw	(SUB FOR AT200584)
60	-	2	Part 40	( AT214305 OR 4372219 NLA) (UNITS BUILT BEFORE SEPTEMBER 2002)
60	19M7662	2	Cap Screw	M10 X 30, (SUB FOR J901030)(UNITS BUILT BEFORE SEPTEMBER 2002)
60	24M7346	2	Washer	11 X 20 X 2 mm, (SUB FOR J922010)(UNITS BUILT BEFORE SEPTEMBER 2002)
60	-	2	Part 43	( J271030 NLA) (UNITS BUILT SEPTEMBER 2002 AND AFTER)
60	19M7662	2	Cap Screw	M10 X 30, (UNITS BUILT SEPTEMBER 2002 AND AFTER)
60	24M7346	2	Washer	11 X 20 X 2 mm, (UNITS BUILT SEPTEMBER 2002 AND AFTER)
71	4369627	1	Striker	(SUB FOR AT214129)
93	4453665	1	Sheet	(SUB FOR TH4453665)
95	4453666	14	Clip	(SUB FOR TH4453666)

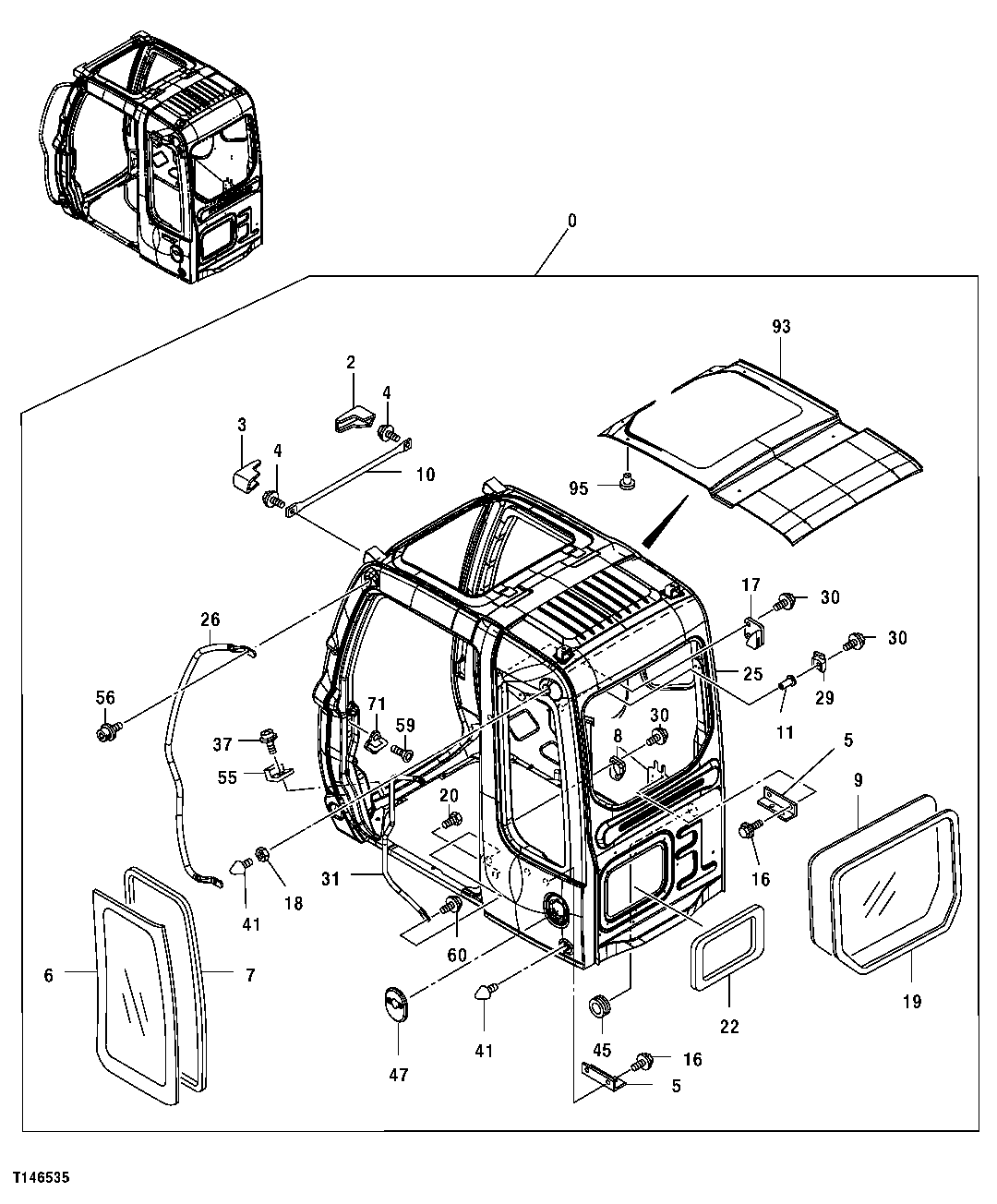

CAB COMPONENTS (CAB ROOF, CAB WINDOWS AND HANDRAILS)
