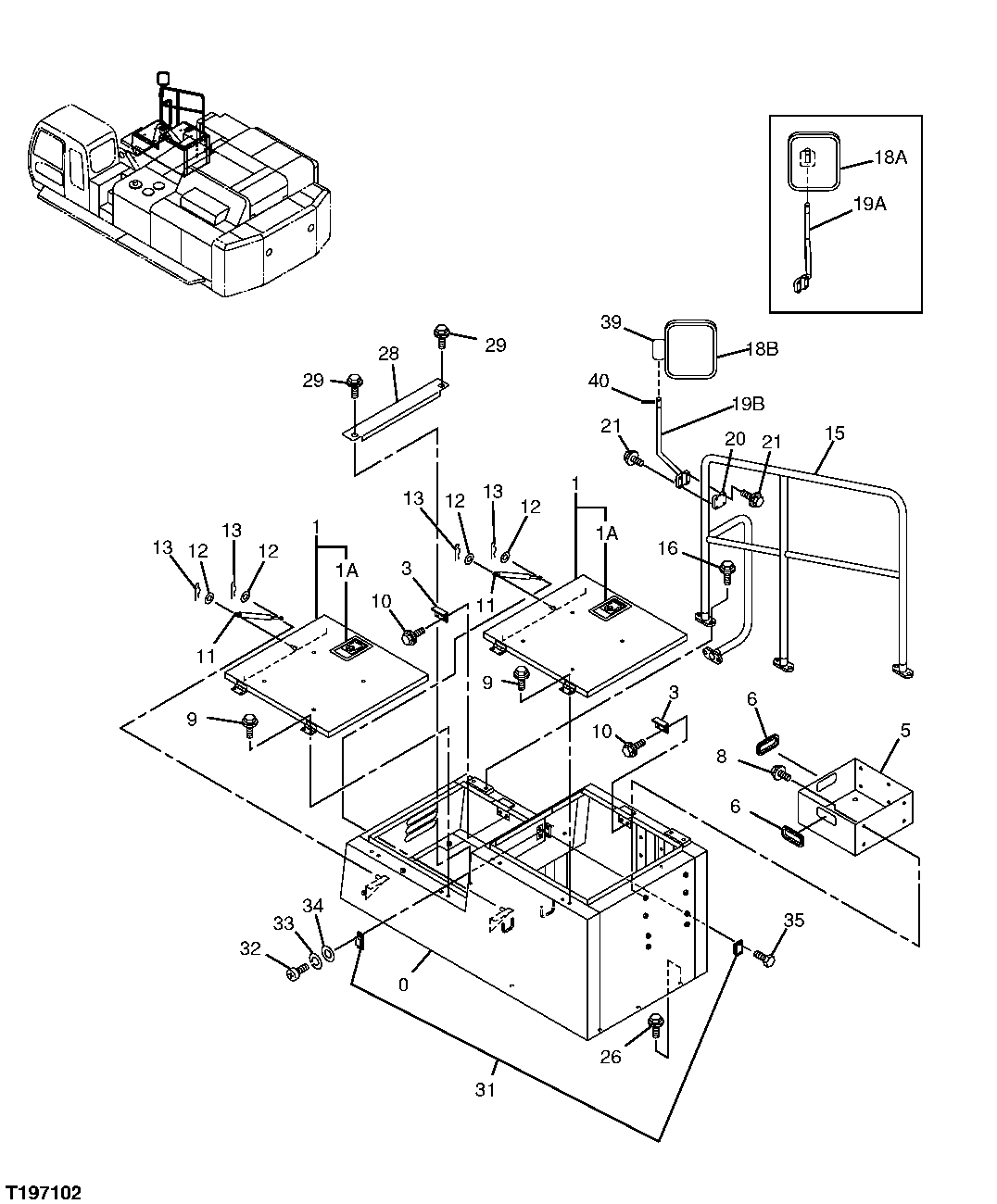

BATTERY COVER, TOOL BOX AND RIGHT REARVIEW MIRROR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	5008057	1	Cover	-
1	7041510	2	Cover	-
3	4448020	2	Bracket	-
5	-	1	Part 5	8086473 NLA
6	4143780	2	Bushing	SUB FOR TH4143780
8	19M8011	8	Cap Screw	M12 X 30
8	12H301	8	Lock Washer	1/2"
8	24M7047	8	Washer	13 X 24 X 2.500 mm
9	19M7402	8	Cap Screw	M10 X 25
9	24M7028	8	Washer	10.500 X 20 X 2 mm
9	12M7066	8	Lock Washer	10 mm
10	19M7662	4	Cap Screw	M10 X 30
10	12M7066	4	Lock Washer	10 mm
10	24M7028	4	Washer	10.500 X 20 X 2 mm
11	4448782	2	Cylinder	-
12	24M7055	4	Washer	8.400 X 16 X 1.600 mm
13	H132922	4	Cotter Pin	-
15	7041515	1	Handrail	-
16	12M7058	8	Lock Washer	12 mm, SUB FOR 12M7067
16	19M8011	8	Cap Screw	M12 X 30
20	4376895	1	Clamp	SUB FOR TH4376895
21	-	4	Part 28	12M7065 NLA
21	19M8397	4	Cap Screw	M8 X 50
26	19M7403	7	Cap Screw	M12 X 35
26	12H301	7	Lock Washer	1/2"
26	24M7047	7	Washer	13 X 24 X 2.500 mm
28	4474033	1	Cover	-
29	19M7938	2	Cap Screw	M10 X 20
29	12M7066	2	Lock Washer	10 mm
31	-	1	Part 35	TH100286 NLA
32	-	2	Part 36	J850312 NLA
33	12H233	2	Lock Washer	1/8", SUB FOR 12M7048
34	24M7029	2	Shim	-
35	M470306	2	Bolt	-
39	19M8280	4	Screw	M5 X 45
40	4144018	1	Spring Pin	-
1A	4361763	1	Lock	SUB FOR TH110898
18A	4426821	1	Rear View Mirror	SUB 4418912; ALSO ORDER 8093819
18B	4418912	1	Rear View Mirror	-
19A	8082851	1	Arm	USE WITH 4426821 , Mirror
19B	8093819	1	Arm	USE WITH 4418912 , Mirror

BATTERY COVER, TOOL BOX AND RIGHT REARVIEW MIRROR
