Открытый узел

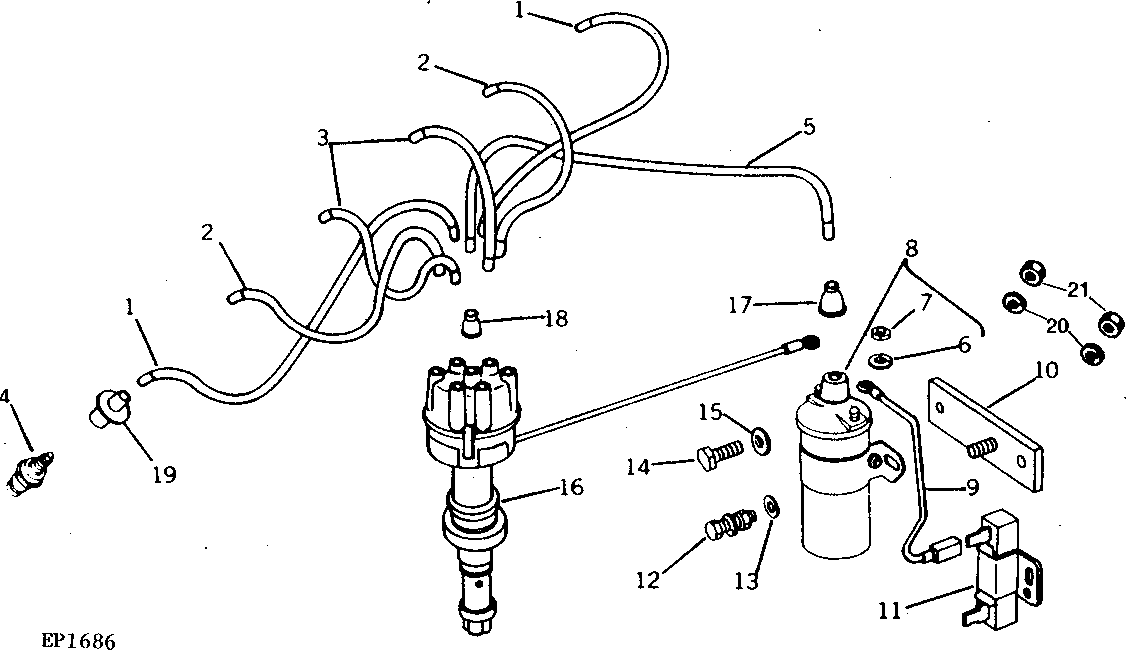

SPARK PLUGS, CABLES, COIL, AND RESISTOR [D16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	33 CM (13") NO. 1 AND 6, (CHRYSLER NO. 2444 024) (MAKE FROM R32006, TWO R32013, A3539R FROM AR84006 WIRE REPAIR KIT) (SUB FOR AE29623)
2	-	2	Part 2	28 CM (11") NO. 2 AND 5 (CHRYSLER NO. 2444 025) (MAKE FROM R32006, TWO R32013, A3539R FROM AR84006 WIRE REPAIR KIT) (SUB FOR AE29624)
3	-	2	Part 3	23 CM (9") NO. 3 AND 4 (CHRYSLER NO. 2444 031) (MAKE FROM R32006, TWO R32013, A3539R FROM AR84006 WIRE REPAIR KIT) (SUB FOR AE29625)
4	AT21343	6	SPARK PLUG	(CHAMPION NO. N-11Y) (FOR ENGINES WITH COVERED SPARK PLUGS) (SUB FOR AE29626)
4	AE34886	6	SPARK PLUG	(CHAMPION NO. BL-13Y) (FOR ENGINES WITH EXPOSED SPARK PLUGS)
4	AE38392	6	SPARK PLUG	(CHAMPION NO. RBL-11Y)
5	-	1	Part 7	38 CM (15") (CHRYSLER NO. 3755 433) (MAKE FROM R32006, TWO R32013, A3539R FROM AR84006 WIRE REPAIR KIT AND A4159R) (SUB FOR AE29716)
6	12H246	2	LOCK WASHER	0.190"
7	14H778	2	Nut	0.190"
8	AE29715	1	IGNITION	(CHRYSLER NO. 3874 001) (SUB AE38372)
8	AE38372	1	IGNITION	(CHRYSLER NO. M&I 4111 469 OR M&I 4111 470)
9	AE29719	1	WIRING LEAD	COIL TO RESISTOR (CHRYSLER NO. 2098 142) (SUB AE38357)
9	AE38357	1	WIRING HARNESS	-
10	AE29717	1	BRACKET	(CHRYSLER NO. 2125 706)
10	AE35774	1	BRACKET	(CHRYSLER NO. M&I 2203 144)
10	E63953	1	BRACE	-
11	AE38373	1	RESISTOR	(CHRYSLER NO. M&I 3874 767)
11	AE29718	1	RESISTOR	(CHRYSLER NO. 2095 501) (SUB AE38373)
12	19H1905	1	Cap Screw	5/16" X 1"
12	12H303	1	Lock Washer	5/16"
12	14H785	1	Nut	5/16"
13	24H1243	1	WASHER	11/32" X 5/8" X 1/16"
14	19H1731	1	Cap Screw	3/8" X 1"
15	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
16	AE33015	1	IGNITION DISTRIBUTOR	VACUUM ADVANCE (CHRYSLER NO. 3656 258)
16	AE38395	1	IGNITION DISTRIBUTOR	(CHRYSLER NO. 3755 057)
16	AE33021	1	IGNITION DISTRIBUTOR	CENTRIFUGAL ADVANCE, LESS CAP, ROTOR AND DUST SHIELD (CHRYSLER NO. 2098 513)
16	AE29622	1	IGNITION DISTRIBUTOR	VACUUM ADVANCE (CHRYSLER NO. 2875 827)
17	A4159R	1	BOOT	-
18	A3539R	7	ELEC. CONNECTOR ACCESSORY	-
19	T20115	6	BOOT	(FOR ENGINES WITH COVERED SPARK PLUGS)
19	R26861	6	BOOT	(FOR ENGINES WITH EXPOSED SPARK PLUGS)
20	12H302	2	Lock Washer	(USE ON AE35774)
21	14H860	2	Nut	-

SPARK PLUGS, CABLES, COIL, AND RESISTOR [D16]
