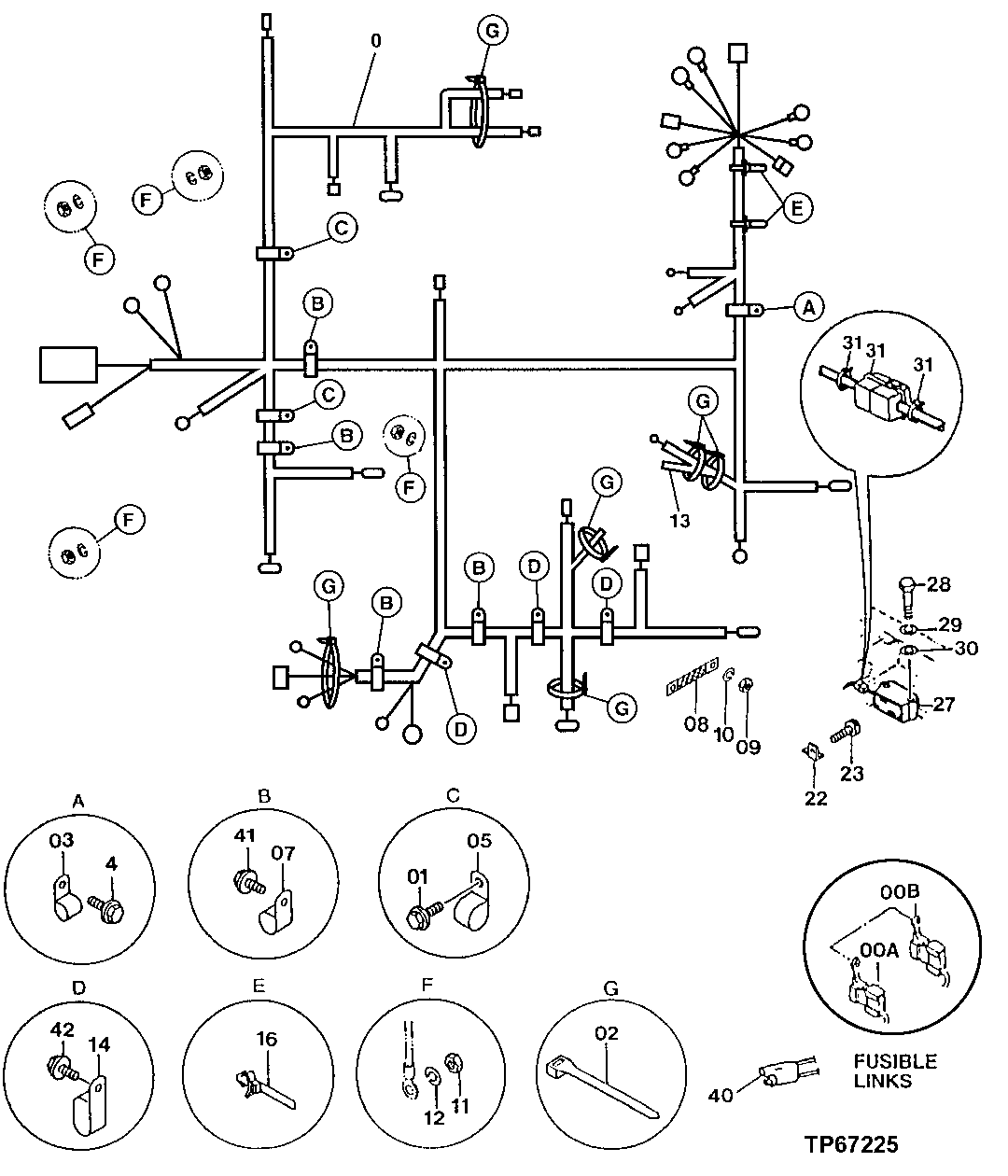

Vehicle Main Wiring Harness and Mounting

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	0003052	1	Wiring Harness	SUB FOR AP36135
1	19M7938	2	Cap Screw	M10 X 20
1	12M7066	2	Lock Washer	10 mm
2	H77698	7	Tie Band	-
3	R73384	1	Clamp	SUB FOR TH108597 OR 4190253
4	19M7938	1	Cap Screw	M10 X 20
4	12M7066	1	Lock Washer	10 mm
5	R72659	2	Clamp	SUB FOR AT122384 OR 4235654
7	T24432	4	Clamp	-
8	AT167399	1	Ground Cable	-
9	14M7275	1	Nut	M12
10	12H301	1	Lock Washer	1/2"
11	14M7274	4	Nut	M10
12	12M7066	4	Lock Washer	10 mm
13	4395105	1	Wiring Harness	SUB FOR AP36132; BATTERY RELAY TO STARTER
14	4190266	3	Clip	SUB FOR TH108793
16	4254600	2	Clip	SUB FOR AT154928
22	4602634	1	Bracket	SUB FOR 4257159 AND AT154243
23	M341010	1	Screw	SUB FOR P65980
27	AT301074	1	Alarm System	SUB FOR AT154966, 4283028; TRAVEL MOTION
28	19M8456	2	Cap Screw	M8 X 100
29	-	2	Part 25	12M7065 NLA
30	24M7055	2	Washer	8.400 X 16 X 1.600 mm
31	H77698	3	Tie Band	-
40	AT172578	1	Wiring Harness	DIODE, USED TO PROTECT AGAINST VOLTAGE SPIKES
41	19M7938	4	Cap Screw	M10 X 20
41	12M7066	4	Lock Washer	10 mm
42	12M7066	3	Lock Washer	10 mm
42	19M7938	3	Cap Screw	M10 X 20
0A	4287671	1	Link	SUB FOR AT191867; FUBISBLE LINK - 80 AMP - BROWN
0B	4287670	1	Fuse	SUB FOR AT200499; FUSIBLE LINK - 60 AMP - YELLOW
0C	4374532	1	Diode	SUB FOR AT179476; NOT ILLUSTRATED, COMPONENT OF MAIN WIRE HARNESS, PLASTIC CONNECTOR CONTAINS 5 DIODES, 1-KEYSWITCH, 1-SWING STOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1-FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT
