PILOT HOSES (RIGHT CONTROLLER TO SHUT-OFF VALVE AND FLOW REGULATOR)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	4378629	1	Hydraulic Hose	(SUB FOR AT250652)
5	4378630	1	Hydraulic Hose	(SUB FOR AT250653)
7	4374837	1	Fitting	(SUB FOR AT250643)
8	4200470	1	Elbow Fitting	(SUB FOR AT131737)
9	4193826	6	Elbow Fitting	(SUB FOR TH106467)
14	4378625	1	Hydraulic Hose	(SUB FOR AT250648) (BOOM RAISE)
15	4378626	1	Hydraulic Hose	(SUB FOR AT250649) (BOOM LOWER)
16	4378627	1	Hydraulic Hose	(SUB FOR AT250650) (BUCKET ROLL-IN)
17	4378628	1	Hydraulic Hose	(SUB FOR AT250651) (BUCKET ROLL-OUT)
18	4351175	1	Hose	(SUB FOR AT213957)
19	4351774	1	Clamp	(SUB FOR AT213962)
21	3072745	1	Cover	(SUB FOR AT213784)
22	3079728	1	Bushing	(SUB FOR AT250589)
24	-	2	Part 17	(SUB FOR AT200012) ( J460620 NLA )
24	21M7267	2	Screw	M6 X 20
24	24M7293	2	Washer	6.500 X 13 X 1.600 mm
24	12M7006	2	Lock Washer	6 mm
7A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
8A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
9A	M800650	1	Packing	-

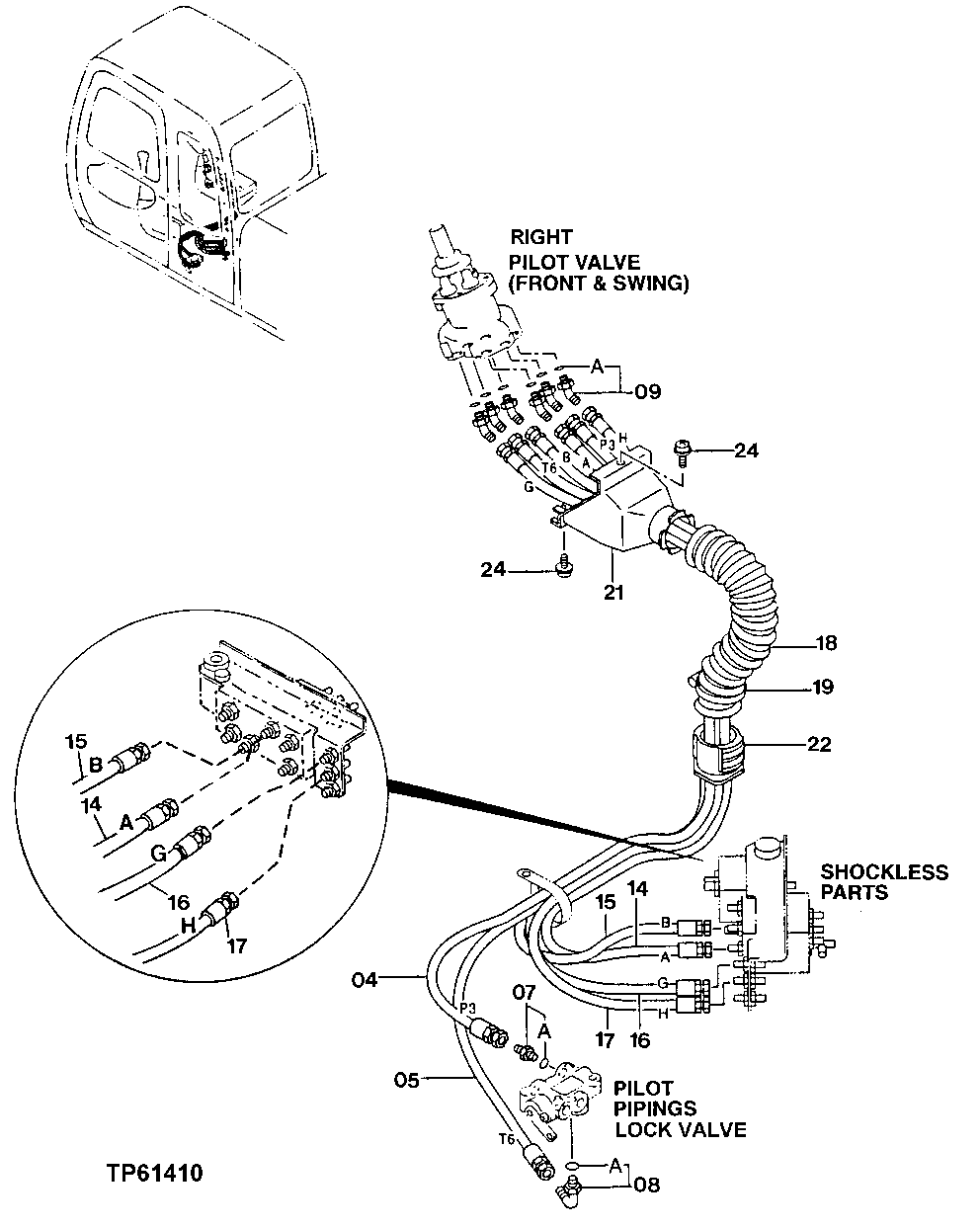

PILOT HOSES (RIGHT CONTROLLER TO SHUT-OFF VALVE AND FLOW REGULATOR)

Нет текстового описания
