PILOT HOSES (LEFT PILOT CONTROLLER TO FLOW REGULATOR, SHUT-OFF VALVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
4	4378635	1	Hydraulic Hose	(SUB FOR AT250658)
5	4378636	1	Hydraulic Hose	(SUB FOR AT250659)
7	4374837	1	Fitting	(SUB FOR AT250643)
8	4200470	1	Elbow Fitting	(SUB FOR AT131737)
9	4193826	6	Elbow Fitting	(SUB FOR TH106467)
11	R134002	1	Clamp	(SUB FOR TH111255 ) (SUB FOR 4193816)
12	12M7066	1	Lock Washer	10 mm
12	19M7938	1	Cap Screw	M10 X 20
19	4378631	1	Hydraulic Hose	(SUB FOR AT250654) (SWING LEFT)
20	4378632	1	Hydraulic Hose	(SUB FOR AT250655) (SWING RIGHT)
21	4378631	1	Hydraulic Hose	(ARM ROLL-IN) (SUB FOR AT250656 ) (SUB FOR AT250654)
22	4378634	1	Hydraulic Hose	(SUB FOR AT250657) (ARM ROLL-OUT)
23	4351175	1	Hose	(SUB FOR AT213957)
24	4351774	1	Clamp	(SUB FOR AT213962)
26	3072745	1	Cover	(SUB FOR AT213784)
27	3079728	1	Bushing	(SUB FOR AT250589)
32	-	2	Part 20	(SUB FOR AT200012) ( J460620 NLA )
32	21M7267	2	Screw	M6 X 20
32	24M7293	2	Washer	6.500 X 13 X 1.600 mm
32	12M7006	2	Lock Washer	6 mm
7A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
8A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
9A	M800650	1	Packing	-

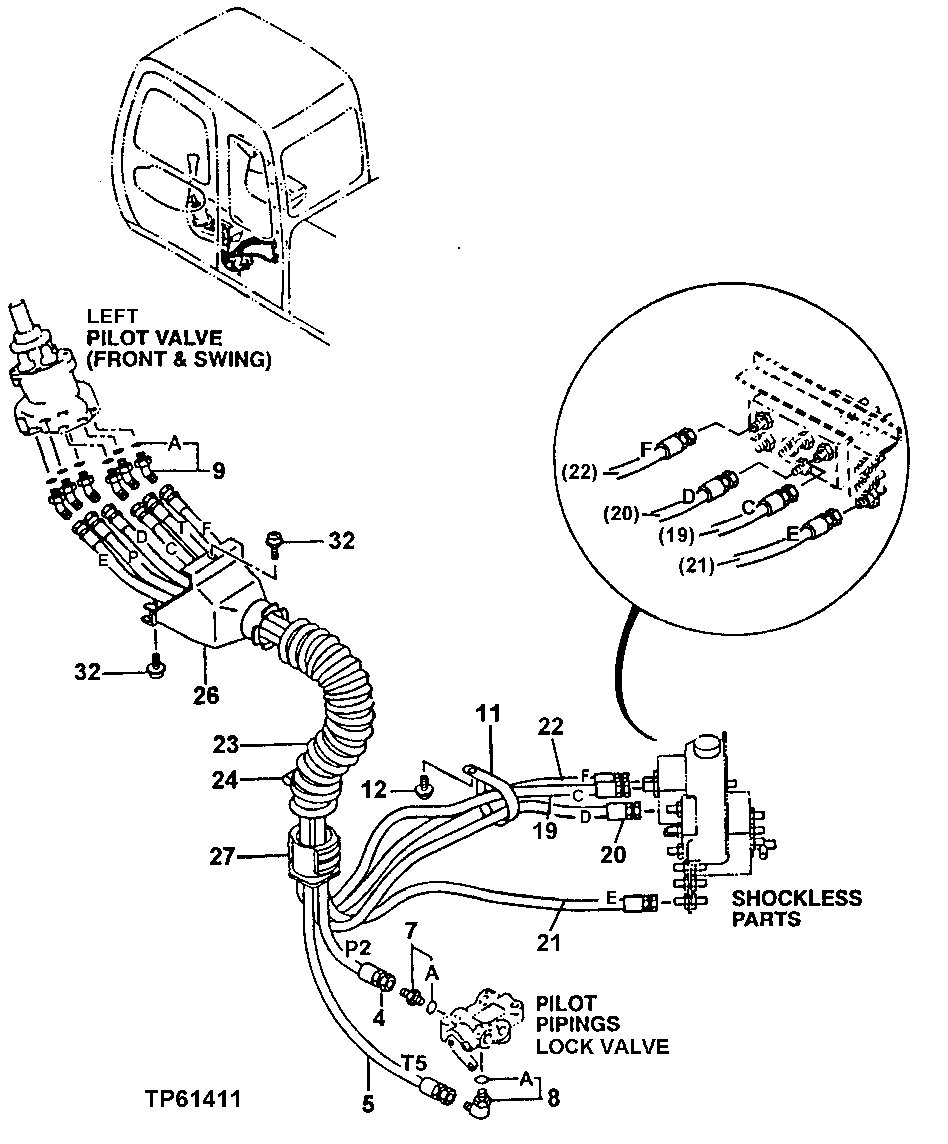

PILOT HOSES (LEFT PILOT CONTROLLER TO FLOW REGULATOR, SHUT-OFF VALVE)

Нет текстового описания
