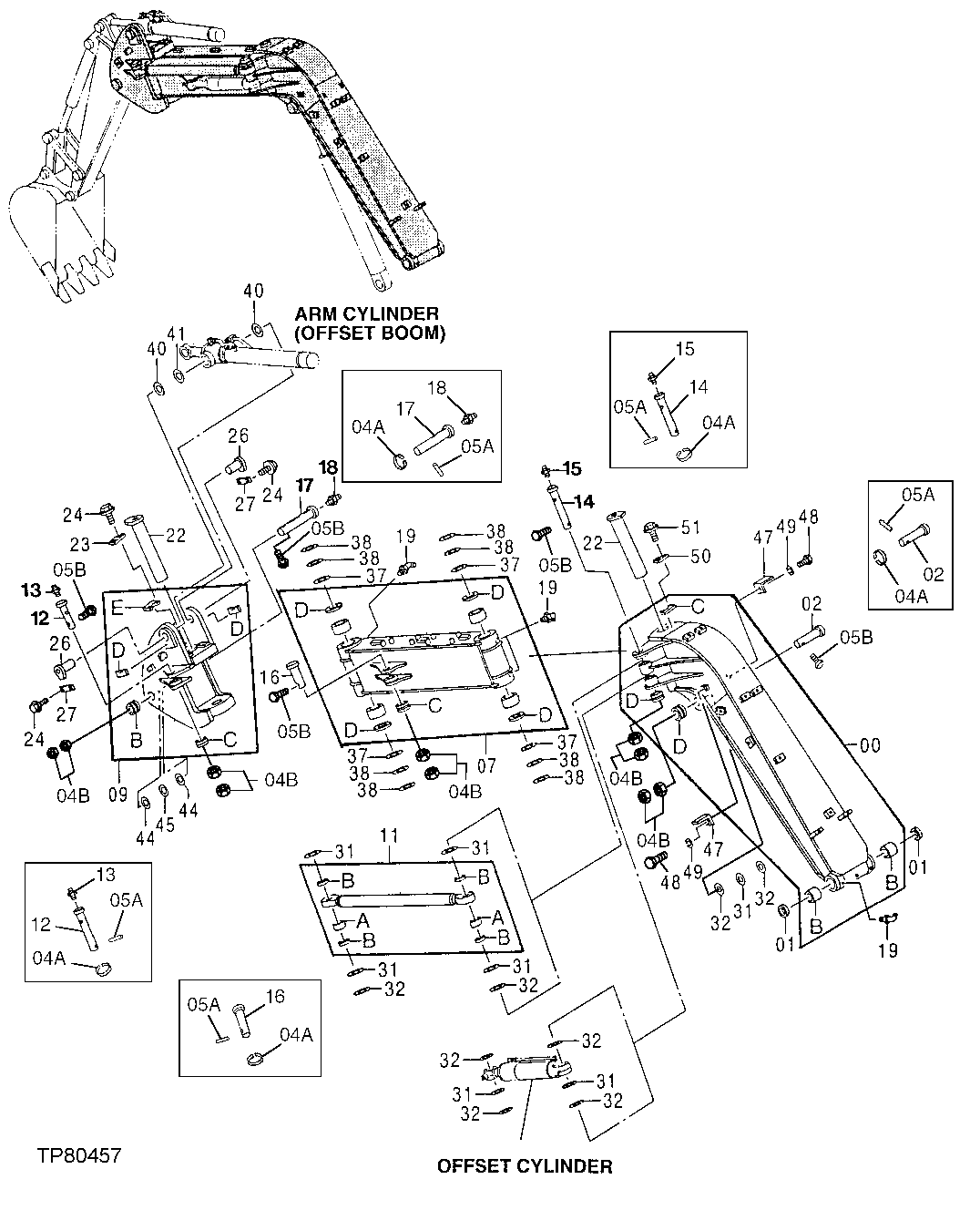

OFFSET BOOM AND PINS

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	7033619	1	Excavator Boom	(SUB FOR AP35970) (OFFSET, LOWER ASSEMBLY)
1	TH105979	2	Seal	-
2	3055536	1	Pin Fastener	(SUB FOR AT200379)
7	8070002	1	Excavator Boom	(SUB FOR AP35972) (OFFSET, UPPER ASSEMBLY)
7	4355877	4	Bushing	-
9	7033623	1	Support	(SUB FOR AP35971)
11	9163869	1	Rod	(SUB FOR AP36005)
12	3040621	1	Pin Fastener	55 X 161 mm (2.165" X 6.339"), (SUB FOR TH110440)
13	TH100074	1	Lubrication Fitting	-
14	3040620	1	Pin Fastener	55 X 326 mm (2.165" X 12.835"), (SUB FOR TH110439)
15	TH100074	1	Lubrication Fitting	-
16	3055930	1	PIN FASTENER	(SUB FOR AT200382)
17	3037344	1	Pin Fastener	(SUB FOR TH110416)
18	TH100074	1	Lubrication Fitting	-
19	T116334	7	Lubrication Fitting	-
22	8069883	2	Pin	(SUB FOR P65741)
23	P65740	1	Plate	-
24	12M7066	6	Lock Washer	10 mm
24	19M7402	6	Cap Screw	M10 X 25
26	8069904	2	Pin	(SUB FOR P65742)
27	4390505	2	Plate	(SUB FOR P65737)
31	4374459	10	Plate	(SUB FOR P65704) (1.0)
32	4374437	5	Plate	(SUB FOR P65703) (2.0)
37	4375134	4	Plate	(SUB FOR P65735) (1.0)
38	4375136	8	Plate	(SUB FOR P65736) (2.0)
40	4366694	2	Plate	(SUB FOR P60447) (1.0)
41	4367411	1	Plate	(SUB FOR P60449) (2.0)
44	4394384	2	Plate	(SUB FOR P65707) (1.0)
45	4394385	1	Plate	(SUB FOR P65708) (2.0)
47	4224631	2	Angle	(SUB FOR TH111685)
48	J901425	2	Cap Screw	(SUB FOR TH104071)
49	12H317	2	Lock Washer	9/16"
50	4411463	1	Plate	(SUB FOR AT250758)
51	19M7550	2	Cap Screw	M10 X 35
51	12M7066	2	Lock Washer	10 mm
0B	4445478	2	Bushing	(SUB FOR (2) 4334422 ) (SUB FOR P65778)
0C	4400016	1	Plate	(SUB FOR AT250755)
0D	4197031	2	Bushing	(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)
0D	P66187	2	Bushing	(SUB FOR TH110546 ) (USE WITH 19M7941 AND (2) 14M7276)
4A	4065688	5	Retainer	(SUB FOR TH100624)
4B	14M7276	10	Nut	M16
5A	4065689	5	Pin Fastener	-
5B	19M8351	5	Cap Screw	M16 X 125
7C	P66187	1	Bushing	(SUB FOR TH110546 ) (USE WITH 19M7941 AND (2) 14M7276)
7C	4197031	1	Bushing	(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)
7D	TH102411	4	Seal	-
9B	4197032	1	Bushing	(USE WITH TH100624 AND TH100625 ) (SUB P60783 ) (SUB FOR TH110547)
9B	P60783	1	Bushing	(SUB FOR TH110547 ) (USE WITH 19M7941 AND (2) 14M7276)
9C	4197031	1	Bushing	(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)
9C	P66187	1	Bushing	(SUB FOR TH110546 ) (USE WITH 19M7941 AND (2) 14M7276)
9D	4400064	2	Plate	(SUB FOR AT250756)
9E	4400016	1	Plate	(SUB FOR AT250755)
11A	4345470	2	Bushing	(SUB FOR AT250757)
11B	4117954	4	Seal	(SUB FOR TH106006)
