Открытый узел

OFFSET ARM, PINS, BUCKET LINKAGE, AND BUCKET CYLINDER HOSES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	AP35992	1	Arm	-
1	TH105979	2	Seal	-
2	4349913	4	Seal	(SUB FOR P65743)
3	8066896	1	Link	(SUB FOR AP35994)
4	3076932J	1	Link	(SUB FOR P65733 OR 3076932)
5	AP36788	1	Link	(SUB FOR P65766)
7	3076942	1	Pin	(SUB FOR P65734)
8	3076944	1	Pin	(SUB FOR P65738)
10	3076951	1	Pin	(SUB FOR P65739)
11	3076955	1	Pin	(SUB FOR P65763)
12	3076954	1	Pin	(SUB FOR P65764)
13	3076948	1	Pin	(SUB FOR P65765)
14	4065688	5	Retainer	(SUB FOR TH100624)
15	4141000	1	Ring	(SUB FOR TH106052)
16	4065689	5	Pin Fastener	17.500 X 81 mm (0.689" X 3.189"), (SUB FOR TH100625)
17	4141001	1	Pin	16 X 62 mm (0.630" X 2.441"), (SUB FOR TH106053)
20	4406388	4	O-Ring	(SUB FOR AT250759)
22	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
24	AP36006	2	Hydraulic Hose	-
27	4374459	6	Plate	(SUB FOR P65704) (1.0)
28	4374437	1	Plate	(SUB FOR P65703) (2.0)
29	P65745	2	Plate	(1.0)
30	P65746	2	Plate	(1.0)
31	P65744	1	Plate	(2.0)
41	TH100074	1	Lubrication Fitting	-
42	TH100074	1	Lubrication Fitting	-
43	TH100074	1	Lubrication Fitting	-
44	19M8351	5	Cap Screw	M16 X 125, (SUB FOR 19M7941)
45	19M8020	1	Cap Screw	M16 X 100
46	14M7276	12	Nut	M16
49	-	1	Part 42	(BUCKET CYLINDER) (SEE SEPARATE PAGE FOR DETAIL)
50	AT190711	1	Arm	WHOLE GOODS (INCLUDES ARM, BUCKET CYLINDER, HOSES AND LINKAGE) (WHOLE GOODS)
0B	4197842	2	Bushing	(SUB FOR TH110558)
0C	4356103	4	Bushing	(SUB FOR P65749 OR 4374061)
0D	P66187	1	Bushing	(SUB FOR TH110546 ) (USE WITH 19M7941 AND (2) 14M7276)
0D	4197031	1	Bushing	(USE WITH TH100624 AND TH100625 ) (SUB P66187 ) (SUB FOR TH110546)
0E	-	1	Part 7	( P65093 NLA (SUB FOR TH110545 ) (USE WITH 19M8020 AND (2) 14M7276)
0E	4197029	1	BUSHING	(USE WITH TH106052 AND TH106053 ) (SUB P65093 ) (SUB FOR TH110545)
3B	4445476	2	Bushing	(SUB FOR 4356105 ) (SUB FOR P65761)
3C	4117954	4	Seal	(SUB FOR TH106006)
3D	4349913	2	Seal	(SUB FOR P65743)
3E	4356103	2	Bushing	(SUB FOR P65749 OR 4374061)
3F	TH100074	2	Lubrication Fitting	-

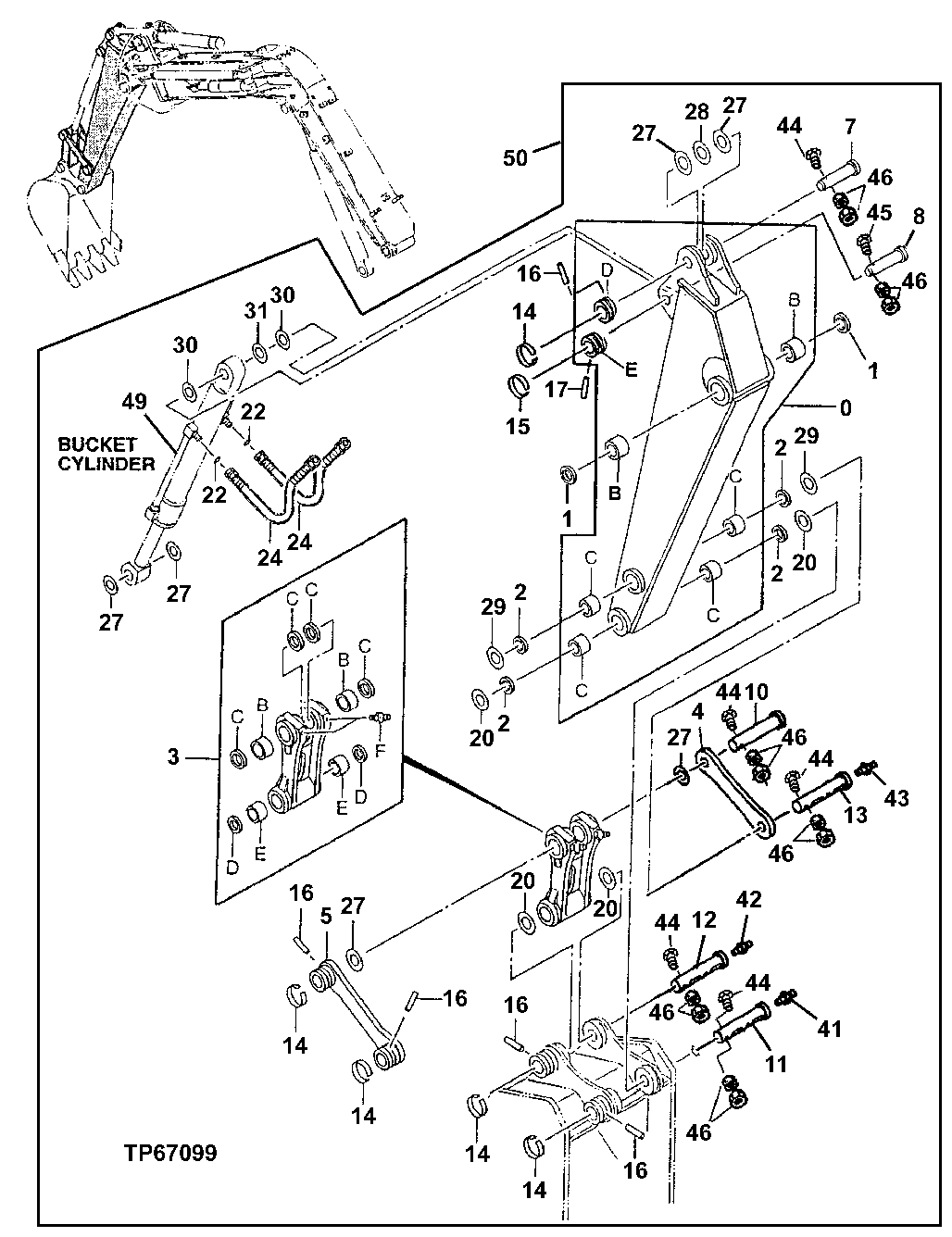

OFFSET ARM, PINS, BUCKET LINKAGE, AND BUCKET CYLINDER HOSES
