CONTROL VALVE COMPONENTS (TOP AND BOTTOM, RELIEF VALVES)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4401863	1	Hyd Actuated Control Valve	(WITH OFFSET BOOM) (ADDITIONAL COMPONENTS ON OTHER PAGES)
0	4368270	1	Hyd Actuated Control Valve	(WITHOUT OFFSET BOOM) (SUB FOR AP35928 (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES))
12	CH11568	2	Packing	-
19	0714601	1	Spring	(SUB FOR AT250534)
20	0714602	1	Fitting Plug	(SUB FOR AT250535)
22	0332941	1	Poppet	(SUB FOR TH110342)
23	0455207	2	Spring	(SUB FOR AT200323)
30	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
32	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
33	0455204	1	Poppet	(SUB FOR AT200320)
34	0455205	1	Piston	(SUB FOR AT200321)
35	0714503	1	Poppet	(SUB FOR AT250531)
36	0225209	1	Spring	(SUB FOR TH105754)
37	0714504	1	Fitting Plug	(SUB FOR AT250532)
39	0714603	1	Spool	(SUB FOR AT250536)
40	12M7006	4	Lock Washer	6 mm
40	24M7105	4	Washer	6 X 12 X 1.600 mm
40	19M7603	4	Screw	M6 X 20
46	0695007	2	Fitting Plug	(INCLUDES CH11570, SUB FOR AT250518)
46	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
48	0714604	1	Pressure Relief Valve	(SUB FOR AT250537)
49	4608478	6	Pressure Relief Valve	(SUB FOR AT250689 OR 4396776)
50	0714605	2	Flow Control Hyd. Valve	(SUB FOR AT250538)
53	0714608	1	Poppet	(SUB FOR AT250541)
54	0714609	1	Spring	(SUB FOR AT250542)
55	0714610	2	Spacer	(SUB FOR AT250543)
56	4140438	5	O-Ring	12.300 X 2.400 mm (31/64" X 3/32"), (SUB FOR TH110456)
57	4040813	4	Back-Up Ring	(SUB FOR TH110449)
58	0455201	1	Poppet	(SUB FOR AT200317)
59	0455202	1	Spring	(SUB FOR AT200318)
60	0714611	1	Fitting Plug	(SUB FOR AT250544)
70	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
80	4500216	1	O-Ring	-
42A	0714404	4	Screw	-
42B	0617208	4	Screw	-
51A	-	1	Part 26	(NLA ) (SUB 0714612)
51B	0714612	1	Valve	-
52A	-	1	Part 28	NLA, (SUB 0714613)
52B	0714613	1	Plate	-

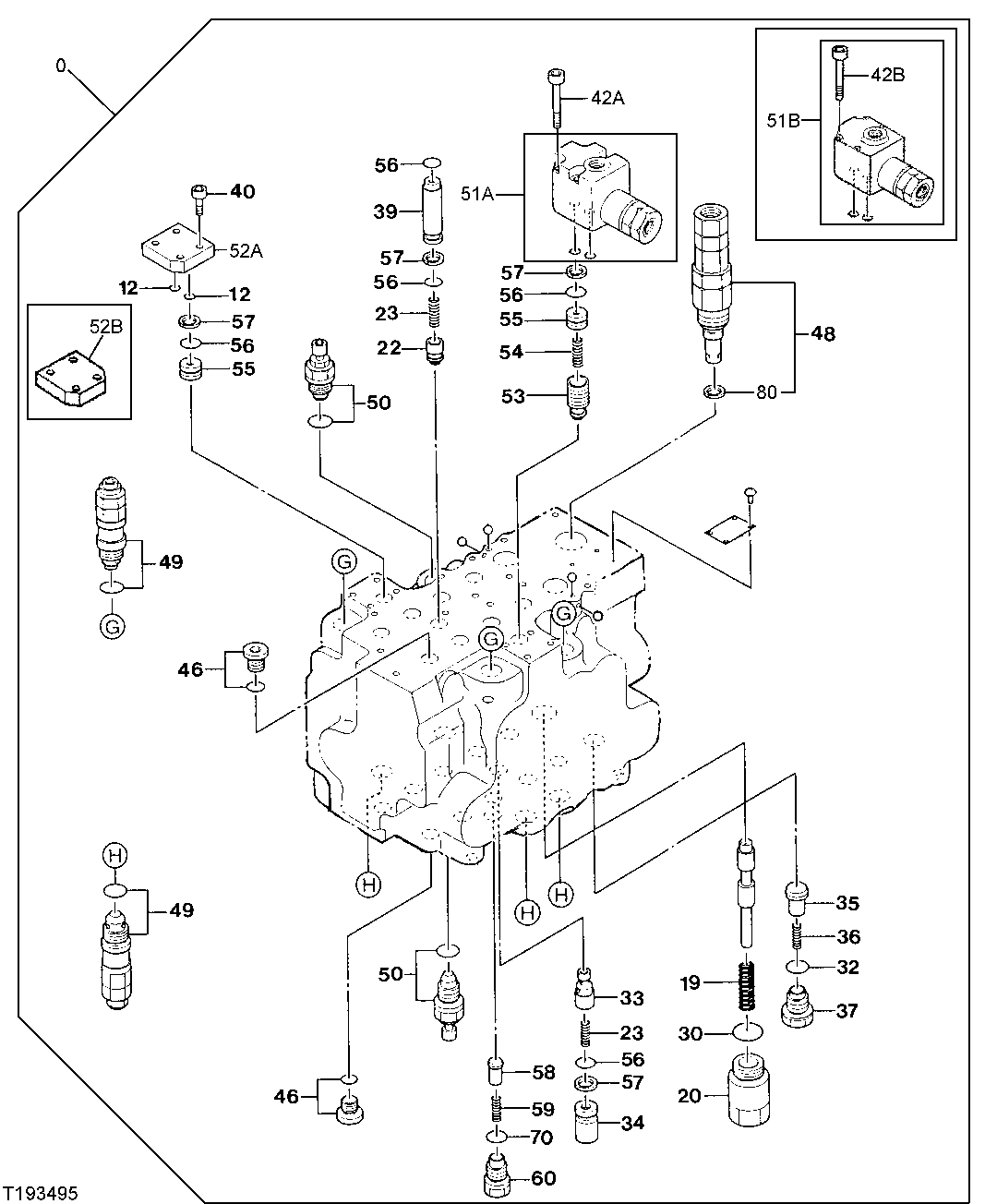

CONTROL VALVE COMPONENTS (TOP AND BOTTOM, RELIEF VALVES)
