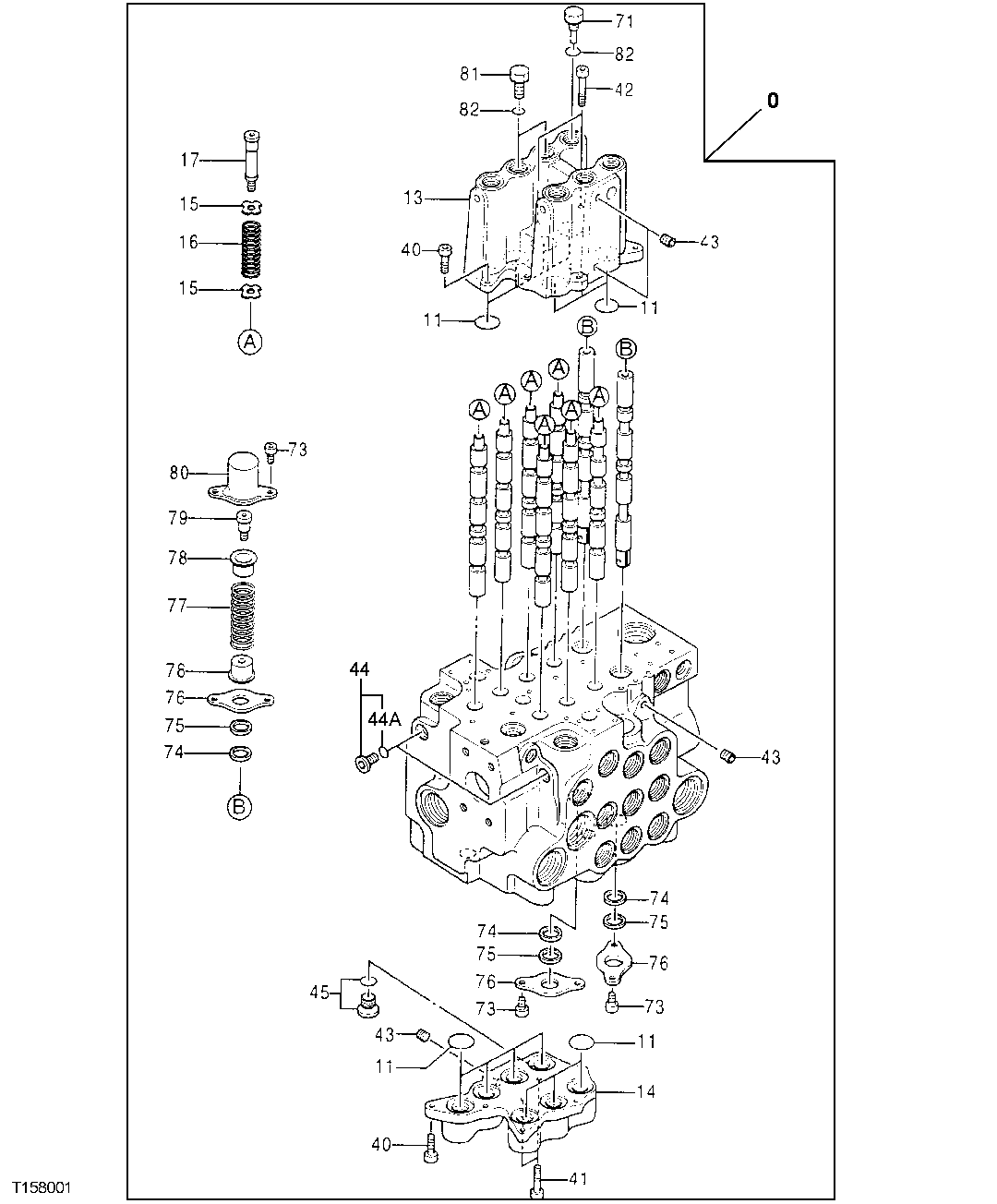

CONTROL VALVE COMPONENTS (TOP AND BOTTOM COVERS, SPOOLS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4401863	1	Hyd Actuated Control Valve	(WITH OFFSET BOOM) (ADDITIONAL COMPONENTS ON OTHER PAGES)
0	4368270	1	Hyd Actuated Control Valve	(WITHOUT OFFSET BOOM) (SUB FOR AP35928 (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES))
11	CH17653	14	Packing	-
13	0714401	1	Housing	(SUB FOR AT250523)
14	0714402	1	Housing	(SUB FOR AT250524)
15	0332904	14	Retainer	(SUB FOR TH110305)
16	0332905	7	Spring	(SUB FOR TH110306)
17	0714403	7	Holder	(SUB FOR AT250525)
40	19M7603	14	Screw	M6 X 20
40	12M7006	14	Lock Washer	6 mm
40	24M7105	14	Washer	6 X 12 X 1.600 mm
41	T115409	2	Bolt	M6 X 32
42	0714404	2	Screw	(SUB FOR AT250526)
43	94-2010	4	Fitting Plug	(SUB FOR TH100689)
44	0667713	2	Fitting Plug	(SUB FOR AT213660)
45	0689405	1	Fitting Plug	(SUB FOR AT250517)
71	0714405	1	Fitting Plug	(SUB FOR AT250527)
73	0209423	8	Bolt	(SUB FOR TH100738)
74	0225202	4	Seal	(SUB FOR TH105747)
75	0225203	4	Seal	(SUB FOR TH105748)
76	0332901	4	Plate	(SUB FOR TH110302)
77	0225208	2	Spring	(SUB FOR TH105753)
78	0225205	4	Retainer	(SUB FOR TH105750)
79	0225201	2	Cap Screw	(SUB FOR TH106840)
80	0332902	2	Cap	(SUB FOR TH110303)
81	0714406	2	Fitting Plug	(SUB FOR AT250528)
82	M800650	3	Packing	-
44A	4506408	1	O-Ring	(SUB FOR TH101490)

CONTROL VALVE COMPONENTS (TOP AND BOTTOM COVERS, SPOOLS)
