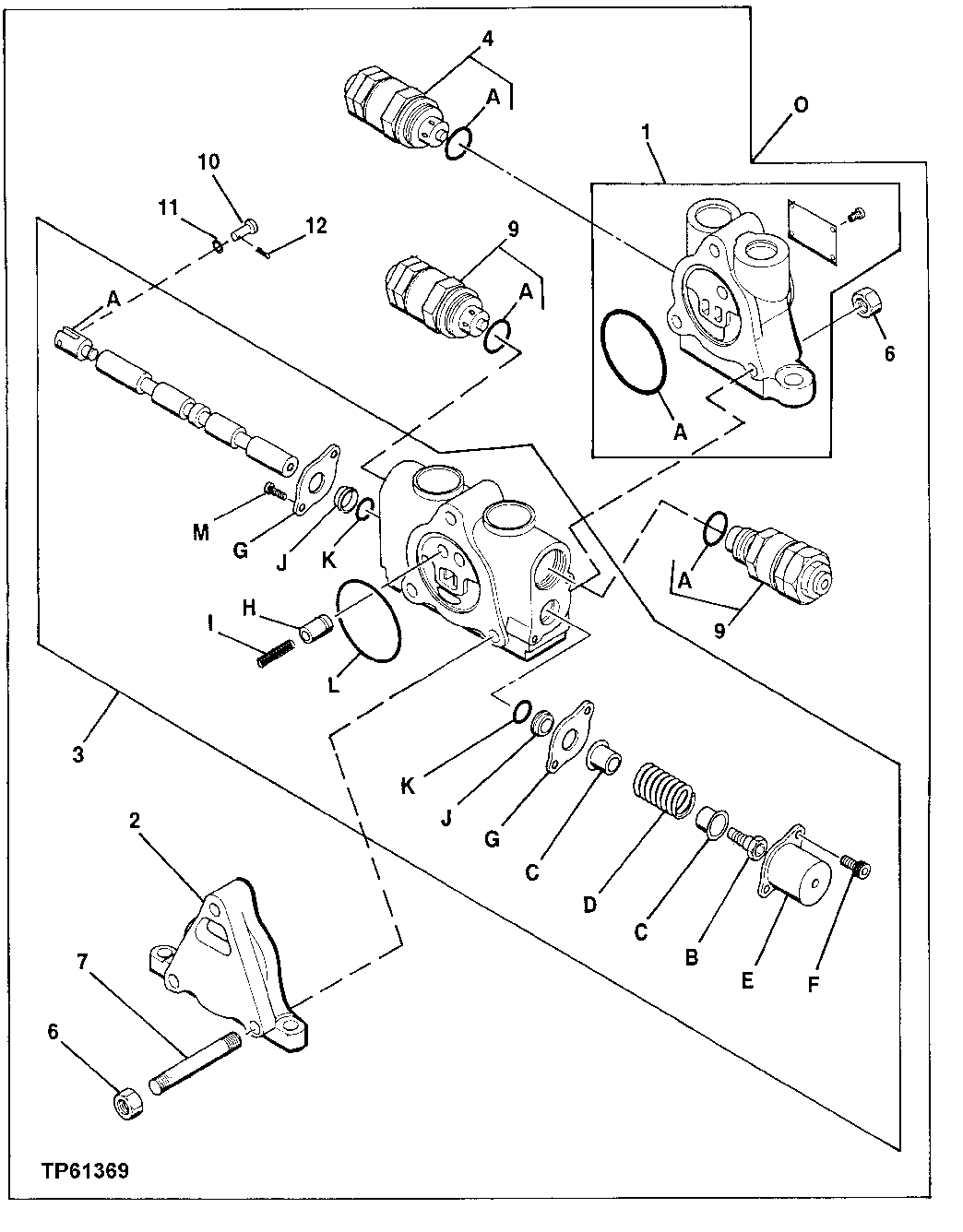

CONTROL VALVE COMPONENTS (SPOOL VALVE, RELIEF VALVE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4401863	1	Hyd Actuated Control Valve	(WITH OFFSET BOOM) (ADDITIONAL COMPONENTS ON OTHER PAGES)
0	4368270	1	Hyd Actuated Control Valve	(WITHOUT OFFSET BOOM) (SUB FOR AP35928 (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGES))
1	0651601	1	Port Plate	(SUB FOR AT250514)
2	0295601	1	Flow Control Hyd. Valve	(SUB FOR TH106884)
3	0651603	1	Spool Valve	(SUB FOR AT250515)
4	4360508	1	Pressure Relief Valve	(SUB FOR AT250611)
6	14M7273	6	Nut	M8
7	0651604	3	Stud	(SUB FOR AT250516)
9	4360507	2	Pressure Relief Valve	(SUB FOR AT250612)
10	0295608	1	Pin	(SUB FOR TH108148)
11	24M7043	1	Washer	12 X 25 X 3 mm, (SUB FOR TH108149 OR 0295609)
12	11M7075	1	Cotter Pin	1.200 X 12 mm
1A	CH17260	1	Packing	-
3A	0219003	1	Yoke	(SUB FOR TH106886)
3B	0219004	1	Screw	(SUB FOR AT250461)
3C	0219005	2	Retainer	(SUB FOR AT250462)
3D	0429408	1	Spring	(SUB FOR AT250467)
3E	0219007	1	Cap	(SUB FOR AT250463)
3F	0429306	2	Screw	(SUB FOR AT250466)
3G	0219008	2	Plate	(SUB FOR TH106889)
3H	0429305	1	Adapter Fitting	(SUB FOR AT250465)
3I	0219010	1	Spring	(SUB FOR AT250464)
3J	0219011	2	Seal	(SUB FOR TH106891)
3K	CH10568	2	Packing	-
3L	CH17260	1	Packing	-
3M	21M7278	2	Screw	M5 X 10
4A	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
9A	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")

CONTROL VALVE COMPONENTS (SPOOL VALVE, RELIEF VALVE)

Нет текстового описания
