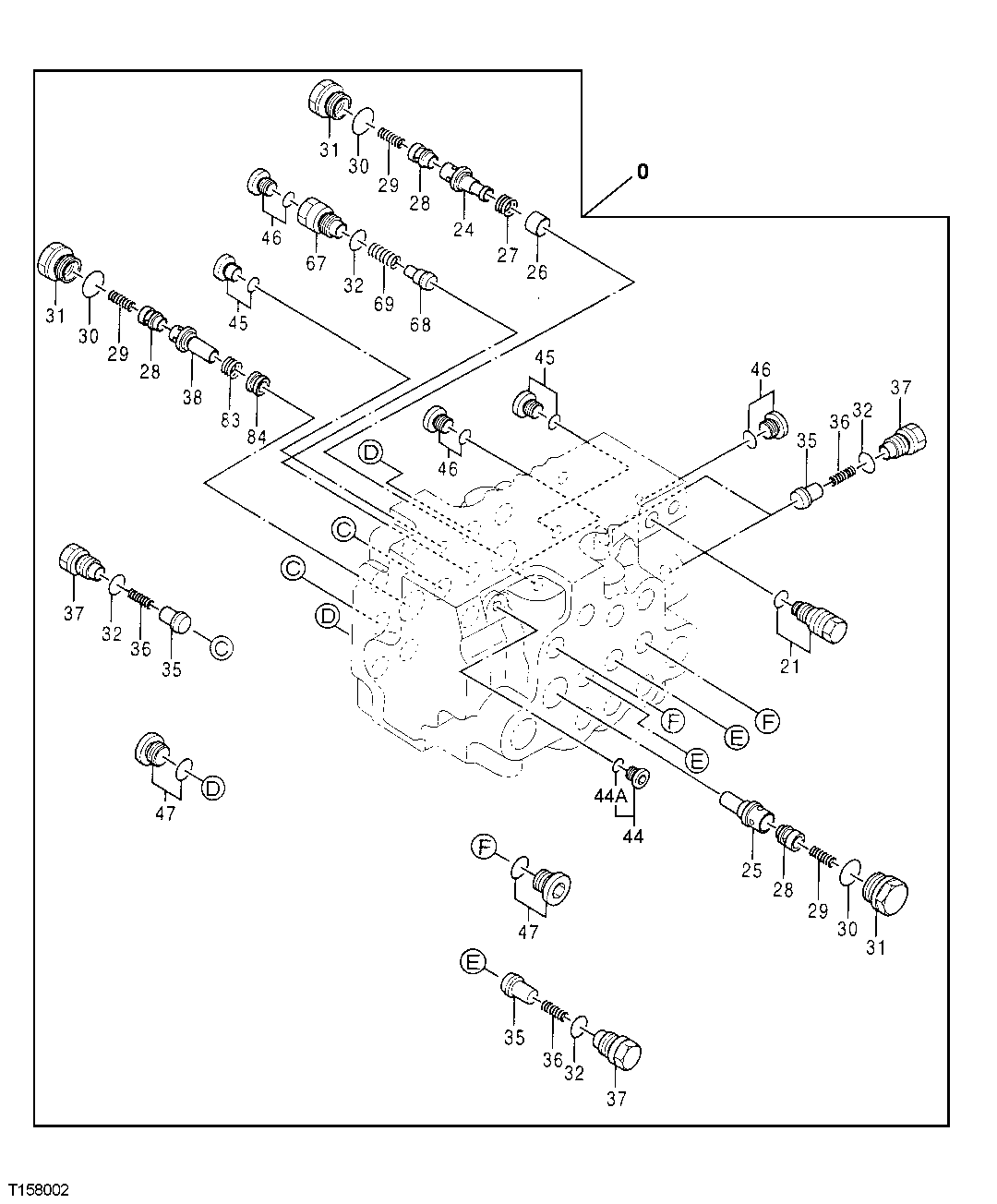

CONTROL VALVE COMPONENTS (SIDE PLUGS AND FITTINGS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4401863	1	Hyd Actuated Control Valve	(WITH OFFSET BOOM) (ADDITIONAL COMPONENTS ON OTHER PAGES)
0	4368270	1	Hyd Actuated Control Valve	(WITHOUT OFFSET BOOM) (SUB FOR AP35928 (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES))
21	0714501	1	Fitting Plug	(SUB FOR AT250529)
24	0455101	1	Sleeve	(SUB FOR AT200305)
25	0455111	1	Sleeve	(SUB FOR AT200315)
26	0455102	1	Poppet	(SUB FOR AT200306)
27	0332917	1	Spring	(SUB FOR TH110318)
28	0103012	3	Poppet	(SUB FOR TH105703)
29	0103013	3	Spring	(SUB FOR TH105704)
30	AT318035	3	O-Ring	(SUB FOR 4506424, TH100055)
31	0714502	3	Fitting Plug	(SUB FOR AT250530)
32	4506418	7	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
35	0714503	6	Poppet	(SUB FOR AT250531)
36	0225209	6	Spring	(SUB FOR TH105754)
37	0714504	6	Fitting Plug	(SUB FOR AT250532)
38	0455108	1	Sleeve	(SUB FOR AT200312)
44	0667713	1	Fitting Plug	(SUB FOR AT213660)
45	0689405	2	Fitting Plug	(SUB FOR AT250517)
46	0695007	3	Fitting Plug	(INCLUDES CH11570, SUB FOR AT250518)
46	CH11570	1	O-Ring	-
47	0668108	4	Fitting Plug	(INCLUDES 4506418, SUB FOR AT213698)
47	4506418	4	O-Ring	17.800 X 2.400 mm (0.701" X 3/32")
67	0714505	1	Fitting Plug	(SUB FOR AT250533)
68	0455103	1	Poppet	(SUB FOR AT200307)
69	0455104	1	Spring	(SUB FOR AT200308)
83	0455110	1	Spring	(SUB FOR AT200314)
84	0455109	1	Poppet	(SUB FOR AT200313)
44A	4506408	1	O-Ring	(SUB FOR TH101490)

CONTROL VALVE COMPONENTS (SIDE PLUGS AND FITTINGS)
