Открытый узел

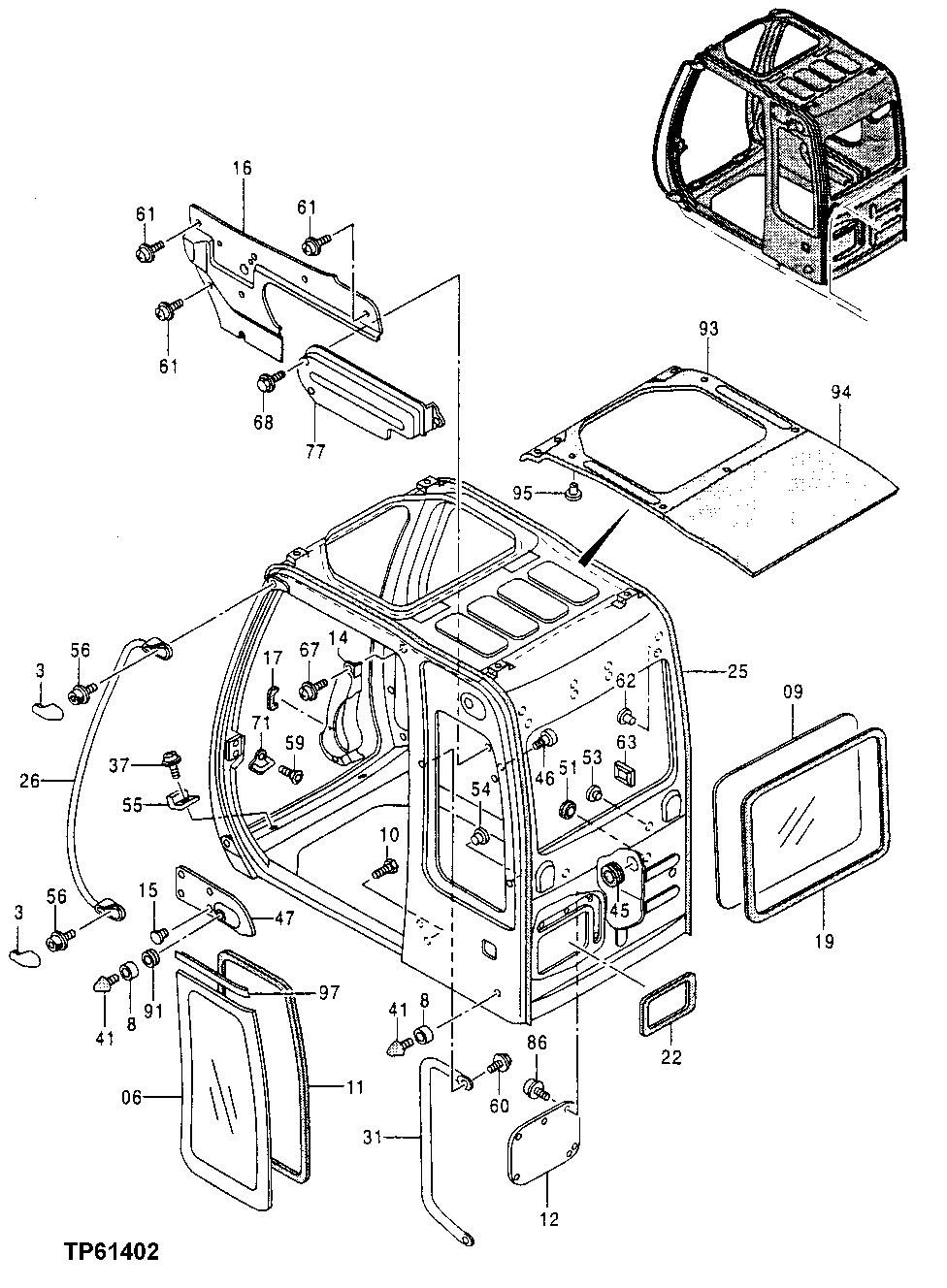

Cab Components (Roof, Side and Rear Windows)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4443758	1	Cab	SUB FOR 4396798; CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES
3	4369572	2	Cover	SUB FOR AT214082
6	4369556	1	Windowpane	SUB FOR AT215569 OR 4383431; INCLUDES SEAL GLUED TO GLASS) (ADDITIONAL SEAL REQUIRED FOR INSTALLATION ON CAB
8	4369561	2	Spacer	SUB FOR AT214071
9	AT215124	1	Windowpane	-
10	19M8425	1	Cap Screw	M6 X 16
10	12M7006	1	Lock Washer	6 mm
10	24H1287	1	Washer	9/32" X 5/8" X 0.065"
11	4400079	1	Seal	ALSO ORDER 4400087; SUB FOR AT218190
11	4400087	1	Seal	ALSO ORDER 4400079
12	4369570	1	Cover	SUB FOR AT214080
14	4369565	1	Cover	SUB FOR AT214075
15	4369659	4	Clip	SUB FOR AT214158
16	-	1	Part 14	4381718 NLA; SUB FOR AT250661
17	4369566	1	Isolator	SUB FOR AT214076
19	4369554	1	Weatherstrip	SUB FOR AT214067
22	4369585	1	Weatherstrip	SUB FOR AT214095
25	4369574	1	Isolator	SUB FOR AT214084
26	4369571J	1	Handrail	SUB FOR AT214081 OR 4369571
31	4602595	1	Handrail	SUB FOR 4369625 AND AT214127
37	21M7246	2	Screw	M6 X 16
37	24M7293	2	Washer	6.500 X 13 X 1.600 mm
37	12M7006	2	Lock Washer	6 mm
41	4204586	2	Bumper	SUB FOR TH108668
45	4369568	1	Grommet	SUB FOR AT214078
46	4295573	1	Hook	SUB FOR AT157057
47	4369557	1	Panel	SUB FOR AT214069
51	4369569	1	Grommet	SUB FOR AT214079
53	4372087	2	Plug	SUB FOR AT214286
54	4369626	1	Plug	SUB FOR AT214128
55	4369675	2	Isolator	SUB FOR AT214173
56	19M8533	2	Screw	M10 X 25, SUB FOR AT214083 OR 4369573
59	4320163	2	Screw	SUB FOR AT200584
60	-	2	Part 34	AT214305 OR 4372219 NLA
60	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
60	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J922010
61	-	3	Part 37	SUB FOR AT200012; MUST BE ORDERED SEPARATELY - NOT A COMPONENT OF CAB; J460620 NLA
61	21M7267	3	Screw	M6 X 20
61	24M7293	3	Washer	6.500 X 13 X 1.600 mm
61	12M7006	3	Lock Washer	6 mm
62	4372088	8	Clip	SUB FOR AT214287
63	4289709	6	Bracket	SUB FOR AT250603; MUST BE ORDERED SEPARATELY - NOT A COMPONENT OF CAB
67	21M7246	3	Screw	M6 X 16
67	12M7006	3	Lock Washer	6 mm
67	24M7293	3	Washer	6.500 X 13 X 1.600 mm
68	19M7162	3	Cap Screw	M8 X 16, SUB FOR AT214308 OR 4372222, ALONG WITH 24M7036 AND 12M7065
68	24M7036	3	Washer	9 X 16 X 1.600 mm
68	-	3	Part 48	12M7065 NLA
71	4369627	1	Striker	SUB FOR AT214129
77	4369567	1	Cover	SUB FOR AT214077
86	J680620	11	Screw With Washer	SUB FOR AT213611
91	4372089	1	Grommet	SUB FOR AT214288
93	4369552	1	Headliner	SUB FOR AT214065
94	4369551	1	Headliner	SUB FOR AT214064
95	4369614	12	Clip	SUB FOR AT214117
97	4369559	1	Isolator	SUB FOR AT214070

Cab Components (Roof, Side and Rear Windows)

Нет текстового описания
