Открытый узел

Wiring Harness, W/ Mid Stack SCV, TLS™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA13041	1	Wiring Harness	-
2	RE564203	1	Wiring Harness	-
3	TA13116	1	Wiring Harness	-
4	57M8484	1	Elec. Connector Housing	X830A, Chassis Interconnect
4	RWA11097	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K, L, M, N, P, R, S
5	57M9804	1	Elec. Connector Housing	X840B, TLS™ Interconnect
5	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9
6	57M9800	1	Elec. Connector Housing	-
7	57M9940	3	Elec. Connector Accessory	-
8	57M9792	1	Elec. Connector Housing	X710B, Mid-Stack Interconnect
8	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
9	57M11337	1	Elec. Connector Accessory	-
10	57M9796	1	Elec. Connector Housing	X710A, Interconnect
10	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
11	57M7840	1	Elec. Connector Housing	A711, Front Hitch / SCV XI
11	57M7469	1	Electrical Connector Assy	-
11	RWA11083	1	Repair Wire Assembly	Cavity B, D, C, A
12	57M10517	1	Elec. Connector Housing	Y649, Front Hitch Sa/Da Switch Valve
12	57M8022	1	Elec.Connect Locking Device	-
12	RWA11058	1	Repair Wire Assembly	Cavity 2, 1
13	57M7840	1	Elec. Connector Housing	A712, SCV XI / SCV XII
13	RWA11083	1	Repair Wire Assembly	Cavity A, B, D, C
14	57M7839	2	Electrical Connector Assy	-
15	RWA11083	1	Repair Wire Assembly	Cavity A, B, D, C
15	57M7840	1	Elec. Connector Housing	A713, SCV XII / SCV XIII
16	57M9800	1	Elec. Connector Housing	X840A, Interconnect
16	RWA11029	1	Repair Wire Assembly	Cavity 8, 2, 6, 1, 9, 3, 4, 5, 7
17	57M7254	1	Elec. Connector Housing	Y515, TLS™ Decrease Stiffness
17	57M9712	1	Elec. Connector Accessory	-
17	RWA11083	1	Repair Wire Assembly	Cavity A, B
18	57M7254	1	Elec. Connector Housing	Y514, TLS™ Increase Stiffness
18	57M9712	1	Elec. Connector Accessory	-
18	RWA11083	1	Repair Wire Assembly	Cavity A, B
19	57M7254	1	Elec. Connector Housing	Y513, TLS™ Lower
19	RWA11083	1	Repair Wire Assembly	Cavity A, B
19	57M9712	1	Elec. Connector Accessory	-
20	57M7254	1	Elec. Connector Housing	Y512, TLS™ Raise
20	57M9712	1	Elec. Connector Accessory	-
20	RWA11083	1	Repair Wire Assembly	Cavity A, B
21	57M9780	1	Elec. Connector Housing	B302, TLS™ Axle Pressure
21	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
22	RE258807	1	Tie Band	-
23	R213663	3	Clamp	-
24	AH225364	5	Clip	-

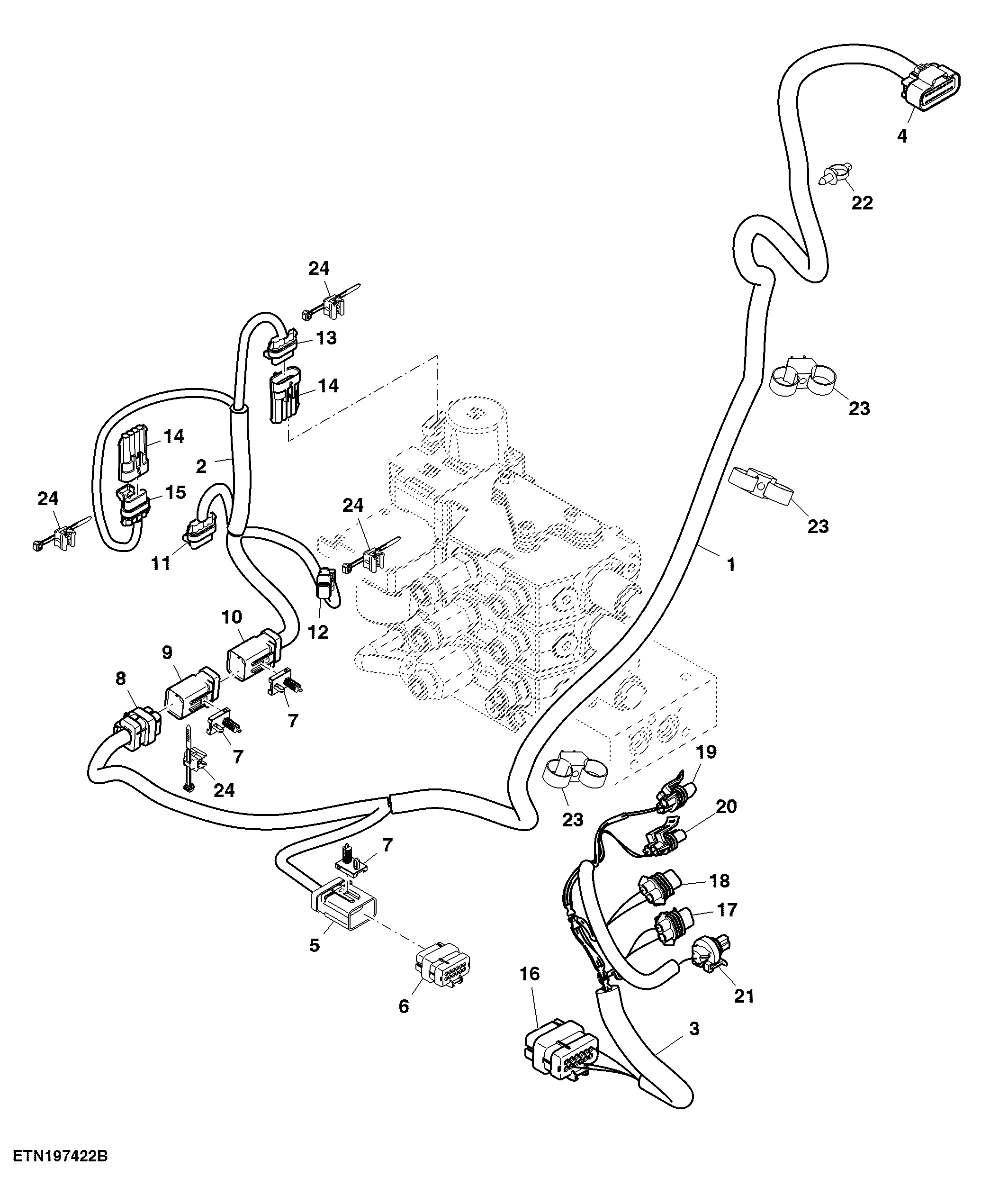

Wiring Harness, W/ Mid Stack SCV, TLS™
