Открытый узел

Wiring Harness, Front Hitch W/ Front PTO (For North America)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE305393	1	Wiring Harness	-
2	AR75695	1	Socket Outlet	Trailer Connector, X160/X162
2	R61775	1	Boot	-
3	57M10300	1	Elec. Connector Housing	Chassis Harness, X100/X102
3	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 6, 7, 8
4	19M7866	2	Screw	M8 X 20
5	RE564852	1	Wiring Harness	ORDER RE587053
5	RE587053	1	Wiring Harness	-
6	57M10300	1	Elec. Connector Housing	IBBC Extension Harness
6	RWA11136	1	Repair Wire Assembly	Cavity 5, 7, 6, 8, 4, 2, 1, 3
7	57M10299	1	Elec. Connector Housing	-
8	57M8907	1	Elec.Connect Locking Device	-
8	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
8	57M7262	1	Elec. Connector Housing	Hitch Following, X117
9	57M7687	1	Elec. Connector Housing	Front Remote PTO Switch, S560
9	RWA11083	1	Repair Wire Assembly	Cavity B, C, A
10	57M11344	1	Elec. Connector Housing	-
10	57M7290	1	Elec. Connector Accessory	-
11	57M7260	1	Elec. Connector Housing	Front Hitch Raise/Lower Switch, S561
11	57M7291	1	Electrical Connector Assy	-
11	RWA11083	1	Repair Wire Assembly	Cavity E, B, F, A, D, C
12	RE12364	1	Electrical Connector Assy	Front Hitch Position Sensor, B535
12	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
13	57M9796	1	Elec. Connector Housing	Front PTO Extension
13	RWA11025	1	Repair Wire Assembly	Cavity 7, 6, 1, 5, 4, 3, 8, 2
14	57M9792	1	Elec. Connector Housing	-
15	57M7254	1	Elec. Connector Housing	TLS Damping Solenoid, Y516
15	RWA11083	1	Repair Wire Assembly	Cavity A, B
16	57M7256	1	Elec. Connector Housing	-
16	57M7289	1	Elec.Connect Locking Device	-
17	RE12364	1	Electrical Connector Assy	TLS Position Sensor, X301
17	RWA11147	1	Repair Wire Assembly	Cavity C, A, B
18	R78054	1	Electrical Connector Assy	-
19	57M10300	1	Elec. Connector Housing	Chassis Harness, Midstack Circuit
19	RWA11136	1	Repair Wire Assembly	Cavity 2, 6, 1, 5, 4, 3, 7, 9, 8
20	57M10298	1	Elec. Connector Housing	Chassis Harness, Front Hitch Circuit
20	RWA11136	1	Repair Wire Assembly	Cavity 10, 5, 14, 2, 1, 9, 6, 12, 11, 13, 4, 3, 8, 7
21	57M9772	1	Elec. Connector Housing	CAN Backbone from Chassis
21	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
22	57M10297	1	Elec. Connector Housing	Chassis Harness TLS™ Circuit
22	RWA11137	1	Repair Wire Assembly	Cavity 13, 12, 14, 11, 10, 9, 6, 5, 4, 3
23	57M10611	1	Elec. Connector Housing	Front Controller J1 Connector, A580-1
23	RWA11030	1	Repair Wire Assembly	Cavity A4, C4, E3, A1, F2, A3, F3, E4, F4, B3, B4, D4, B2, A2
23	RWA10888	1	Repair Wire Assembly	Cavity G4, G3, H1, G1
24	57M10614	1	Elec. Connector Housing	Front Controller J2 Connector, A580-2
24	RWA11030	1	Repair Wire Assembly	Cavity H2, F3, C4, B2, D3, D4, J4, G3, D2, F2, D1, C1, K2, B3, F1, G2, J2, E2, A2, K4, C2, E3, E4, B4, E1, B1, A1
24	RWA10888	1	Repair Wire Assembly	Cavity L4, L3, L1, M1, M3, L2, M2, M4
25	57M9776	1	Elec. Connector Housing	CAN Terminator, A912
25	RWA11022	1	Repair Wire Assembly	Cavity 1, 2
26	57M7255	1	Elec. Connector Housing	Diagnostic Pressure, X290
26	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
27	57M7257	1	Elec. Connector Housing	-
27	57M7290	1	Elec. Connector Accessory	-
28	57M7567	1	Elec. Connector Terminal	Chassis Ground
29	57M9940	1	Elec. Connector Accessory	-
30	R213663	3	Clamp	-
31	RE258807	7	Tie Band	-
32	19M7865	1	Screw	M8 X 16
33	RE564867	1	Wiring Harness	-
34	57M9792	1	Elec. Connector Housing	X775
34	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
35	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
35	57M9837	1	Elec. Connector Accessory	-
35	57M9775	1	Elec. Connector Housing	B537
36	57M9773	1	Elec. Connector Housing	B532
36	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
37	57M8924	1	Elec. Connector Housing	FY694
37	57M8633	1	Elec. Connector Accessory	-
37	RWA10703	1	Repair Wire Assembly	Cavity A, B
38	57M9780	1	Elec. Connector Housing	B531
38	57M10156	1	Elec. Connector Accessory	-
38	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
39	57M9432	2	Clamp	-
40	57M10299	1	Elec. Connector Housing	Front Trailer Extension Harness, X128B
40	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
41	57M9837	2	Elec. Connector Accessory	-
42	57M10156	1	Elec. Connector Accessory	-
43	L116274	1	Elec. Connector Accessory	-
44	57M8219	1	Elec. Connector Terminal	-
45	57M9556	1	Elec. Connector Accessory	-
46	57M10604	1	Elec. Connector Housing	-
47	57M10613	1	Elec. Connector Housing	-

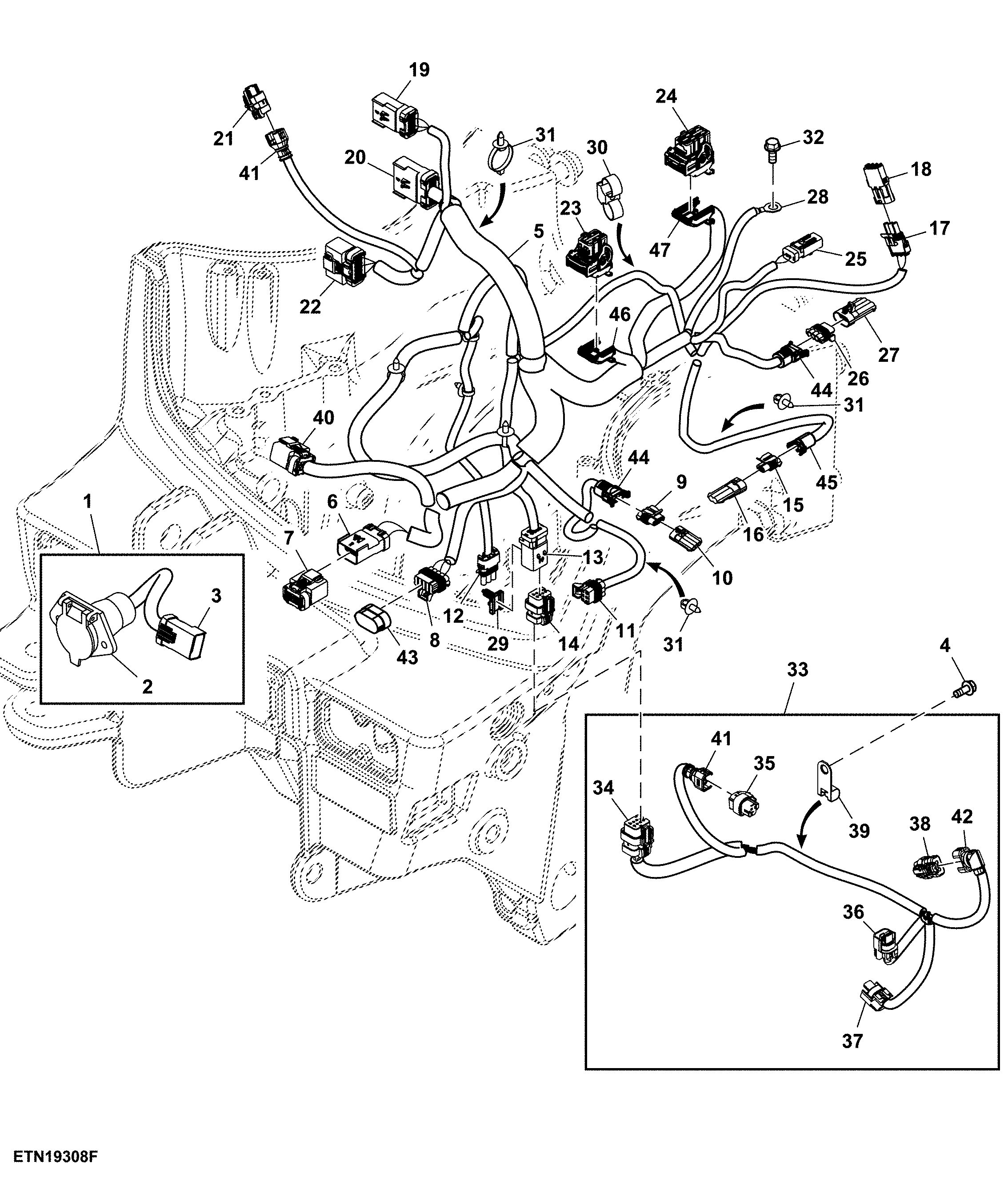

Wiring Harness, Front Hitch W/ Front PTO (For North America)
