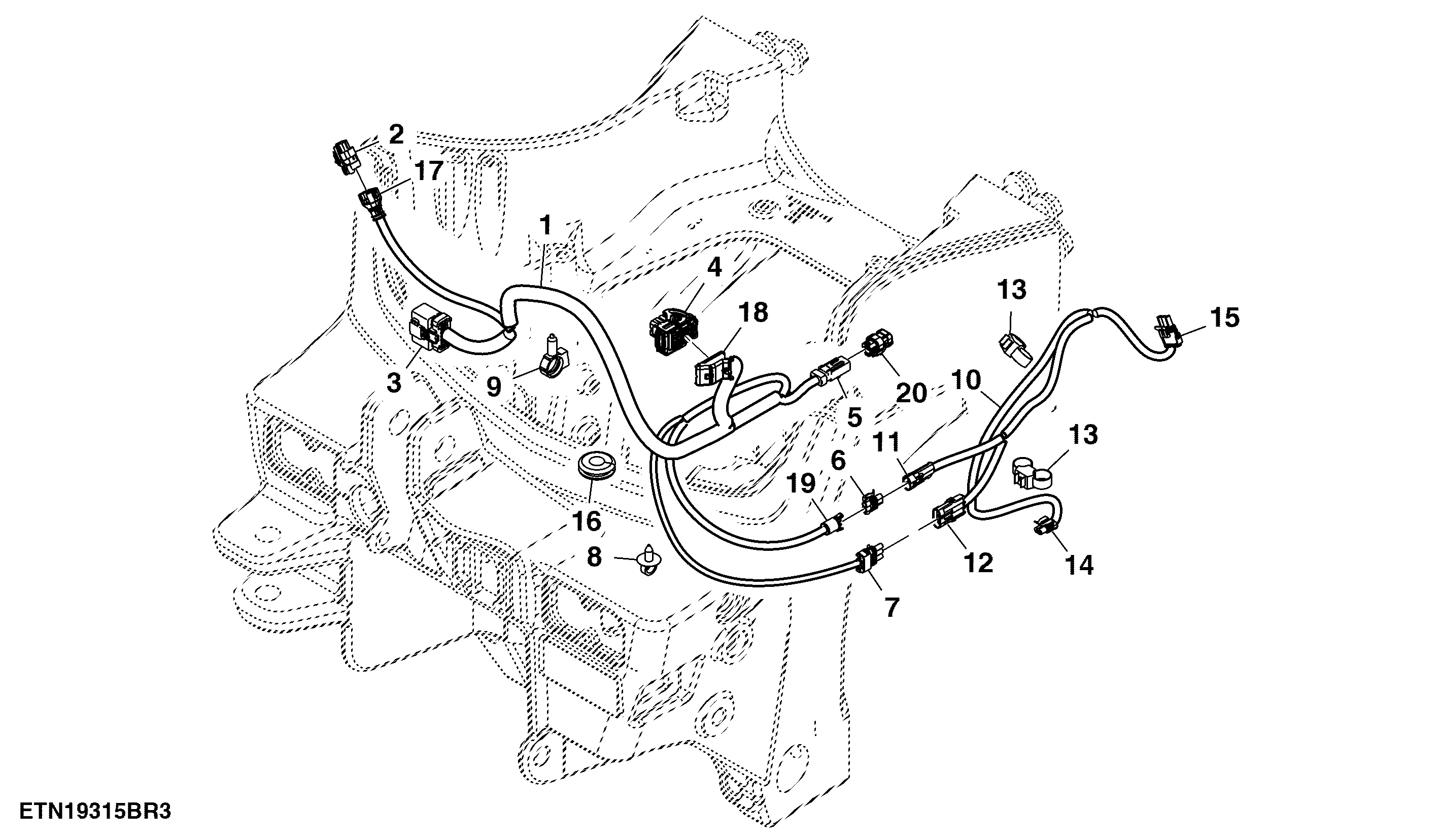

Wiring Harness, Front Controller, W/O Mid SCV, W/ Front Hitch, TLS™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE564950	1	Chassis Wiring Harness	-
2	57M9772	1	Elec. Connector Housing	CAN Backbone from Chassis
2	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
3	57M10297	1	Elec. Connector Housing	Chassis Harness TLS™ Circuit
3	RWA11137	1	Repair Wire Assembly	Cavity 1, 10, 11, 12, 13, 14, 2, 3, 4, 5, 6, 9
4	57M10614	1	Elec. Connector Housing	Front Controller J2 Connector, A580
4	RWA10888	1	Repair Wire Assembly	Cavity L1, M1, L2, M2, L4
4	RWA10726	1	Repair Wire Assembly	Cavity A1, B1, B2, C4, F2, H4, J2, J3, J4, K2, K3, K4
5	57M9776	1	Elec. Connector Housing	Can Terminator
5	RWA11022	1	Repair Wire Assembly	Cavity 1, 2
6	57M7254	1	Elec. Connector Housing	TLS™ Damping Solenoid, Y516
6	RWA11083	1	Repair Wire Assembly	Cavity A, B
7	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor, B301
7	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
8	57M8902	1	Clip	-
9	RE258807	5	Tie Band	-
10	RE587054	1	Wiring Harness	-
10	RE333964	1	Wiring Harness	ORDER RE587054
11	57M7256	1	Elec. Connector Housing	TLS™ Damping, Y516
11	57M7289	1	Elec.Connect Locking Device	-
11	RWA11082	1	Repair Wire Assembly	Cavity A, B
12	R78054	1	Electrical Connector Assy	TLS™ Position, B301
12	R82928	1	Elec. Connector Terminal	-
12	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
13	R213663	2	Clamp	-
14	57M7289	1	Elec.Connect Locking Device	-
14	RWA11083	1	Repair Wire Assembly	Cavity A, B
14	57M7254	1	Elec. Connector Housing	TLS™ Damping Valve, Y516
15	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor, B301
15	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
16	R45210	1	Grommet	-
17	57M9837	1	Elec. Connector Accessory	-
18	57M10613	1	Elec. Connector Housing	-
19	57M9556	1	Elec. Connector Accessory	-
20	57M11134	1	Elec. Connector Housing	-

Wiring Harness, Front Controller, W/O Mid SCV, W/ Front Hitch, TLS™

Нет текстового описания
