Wiring Harness, Front Controller, W/O Mid SCV and Front Hitch, TLS™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE564950	1	Chassis Wiring Harness	-
2	57M9772	1	Elec. Connector Housing	CAN Backbone from Chassis
2	RWA11027	1	Repair Wire Assembly	Cavity 2, 1
3	57M10297	1	Elec. Connector Housing	Chassis Harness TLS™ Circuit
3	RWA11137	1	Repair Wire Assembly	Cavity 1, 10, 11, 12, 13, 14, 2, 3, 4, 5, 6, 9
4	57M10614	1	Elec. Connector Housing	Front Controller J2 Connector, A580
4	RWA10888	1	Repair Wire Assembly	Cavity L1, M1, L2, M2, L4
4	RWA11030	1	Repair Wire Assembly	Cavity C4, J4, H4, K2, K4, J3, K3, F2, J2, B2, B1, A1
5	RWA11022	1	Repair Wire Assembly	Cavity 2, 1
5	57M9776	1	Elec. Connector Housing	Can Terminator
6	57M7254	1	Elec. Connector Housing	TLS™ Damping Solenoid, Y516
6	RWA11083	1	Repair Wire Assembly	Cavity B, A
7	RE12364	1	Electrical Connector Assy	TLS™ Position Sensor, B301
7	RWA11147	1	Repair Wire Assembly	Cavity A, B, C
8	RE258807	4	Tie Band	-
9	57M9837	1	Elec. Connector Accessory	-
10	57M10613	1	Elec. Connector Housing	-
11	57M11134	1	Elec. Connector Housing	-
12	57M9556	1	Elec. Connector Accessory	-

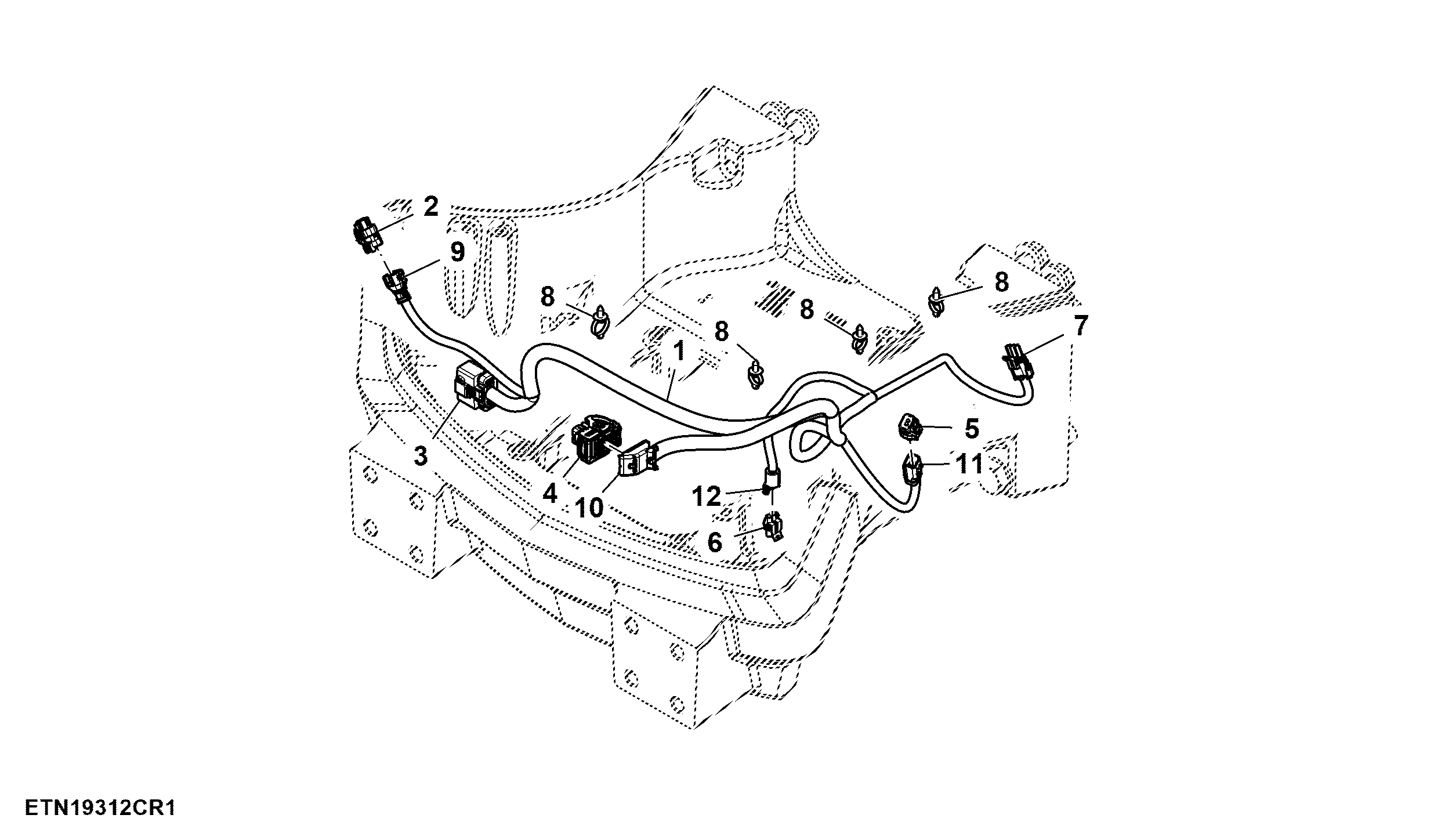

Wiring Harness, Front Controller, W/O Mid SCV and Front Hitch, TLS™
