Wiring Harness, Aftertreatment Device (126001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE598231	1	Wiring Harness	-
2	57M14711	1	Elec. Connector Housing	ATD / Engine Chassis Interconnect, XX003-2
2	57M7682	1	Elec.Connect Locking Device	-
2	RWA11056	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12
3	57M9818	1	Elec. Connector Housing	After Treatment Temperature Module, B5204
3	RWA11026	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
4	57M9776	1	Elec. Connector Housing	CAN termination Rasistor, A916
4	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
5	57M11134	1	Elec. Connector Housing	-
6	57M9940	1	Elec. Connector Accessory	-
7	57M9787	1	Elec. Connector Housing	NOx Sensor SCR Outlet, B5503
7	RWA11027	1	Repair Wire Assembly	Cavity 1, 4, 5, 6
8	57M10230	2	Elec. Connector Accessory	-
9	57M10315	1	Elec. Connector Housing	SCR Dosing Control Valve, Y5020
9	RWA11132	1	Repair Wire Assembly	Cavity 1, 2
10	57M9787	1	Elec. Connector Housing	NOx Sensor DPF Outlet, B5502
10	RWA11027	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6
11	57M9780	1	Elec. Connector Housing	DPF Delta Pressure-Face Seal, B5109
11	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
12	57M10156	1	Elec. Connector Accessory	-
13	57M13298	2	Clamp	-
14	GX22456	4	Screw	-
15	TR118908	2	Clamp	-
16	37M7536	4	Screw	-

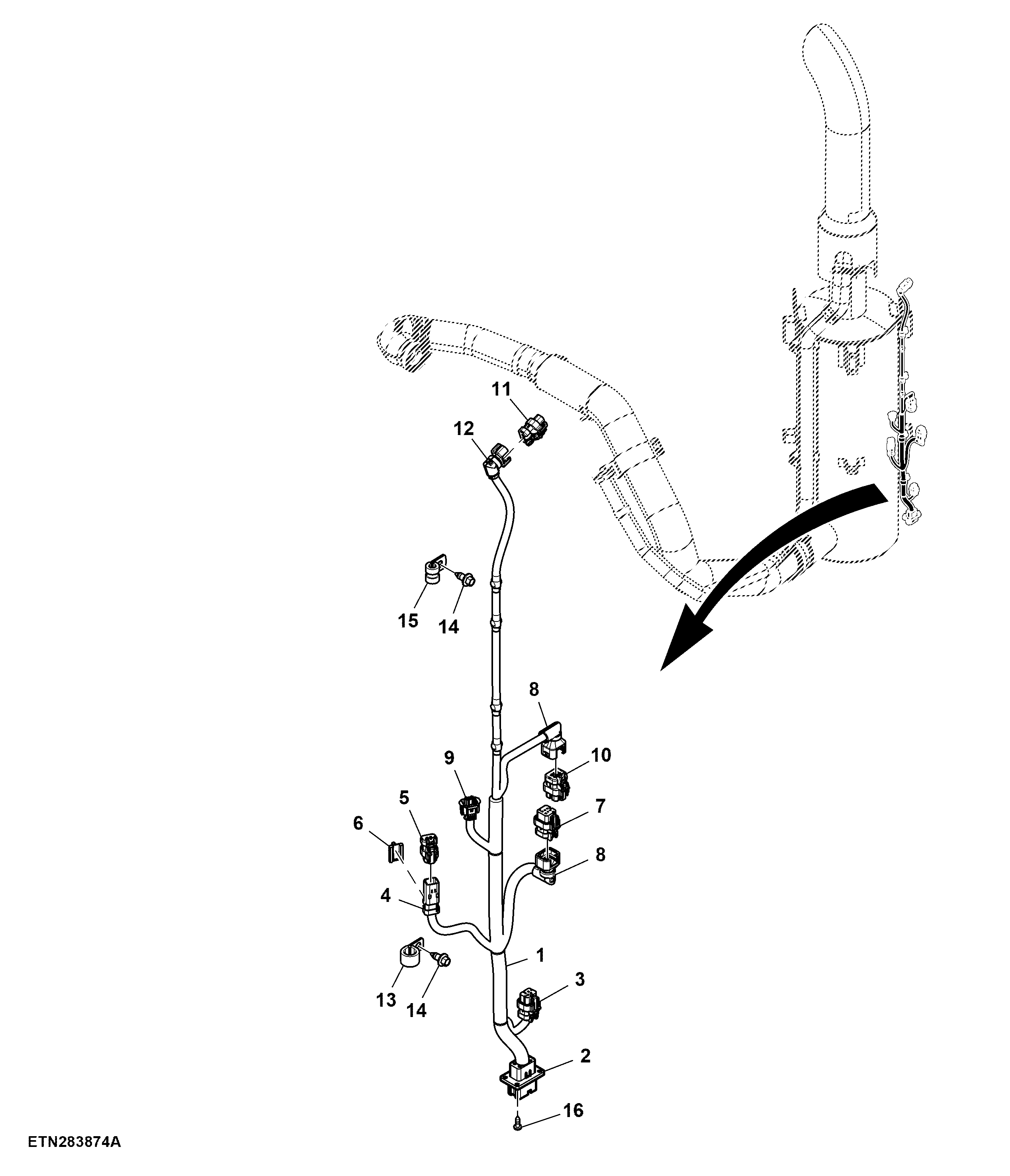

Wiring Harness, Aftertreatment Device (126001 - )

Нет текстового описания
