Rear Fender Work Lights, 2 Halogen, LH Illustrated

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9555	6	Clip	-
2	RE595524	2	Wiring Harness	Worklight Jumper, ORDER TA19466
2	TA19466	2	Wiring Harness	Worklight Jumper
3	57M8839	2	Elec. Connector Housing	E169/E170, Rear Fender Outer Worklight
3	57M8129	2	Elec. Connector Terminal	-
3	RWA11089	1	Repair Wire Assembly	Cavity A, B
4	57M8839	2	Elec. Connector Housing	E109/E110, Rear Fender Inner Worklight
4	57M8129	2	Elec. Connector Terminal	-
4	RWA11089	1	Repair Wire Assembly	Cavity A, B
5	RE258807	8	Tie Band	-
6	57M7263	2	Elec. Connector Housing	X131B/X133B, Worklight Jumper / Fender Interconnect
6	57M7291	2	Electrical Connector Assy	-
6	RWA11082	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
7	RWA11085	1	Repair Wire Assembly	Cavity A, B
7	57M7784	2	Electrical Connector Assy	XX175-1/XX176-1, Extremity Light Interconnect
7	57M7723	2	Electrical Connector Assy	-
8	57M7785	2	Elec. Connector Housing	-
9	57M7785	2	Elec. Connector Housing	XX177-1/XX178-1, Clearance Extremity Light Interconnect
9	57M7724	2	Electrical Connector Assy	-
9	RWA11086	1	Repair Wire Assembly	Cavity A, B
10	RE593796	2	Floodlamp	Halogen Pedestal Mount
11	14M7847	4	Lock Nut	M8
12	24M7271	2	Washer	10.500 X 20 X 2 mm
13	57M8958	2	Elec. Connector Housing	-
13	57M8129	2	Elec. Connector Terminal	-
14	R571005	2	Bulb	12V
15	03M7369	2	Bolt	M8 X 45
16	R571006	2	Mounting Parts	-
17	R571007	4	Mounting Parts	-
18	57M7784	2	Electrical Connector Assy	-
19	57M8910	2	Clip	-

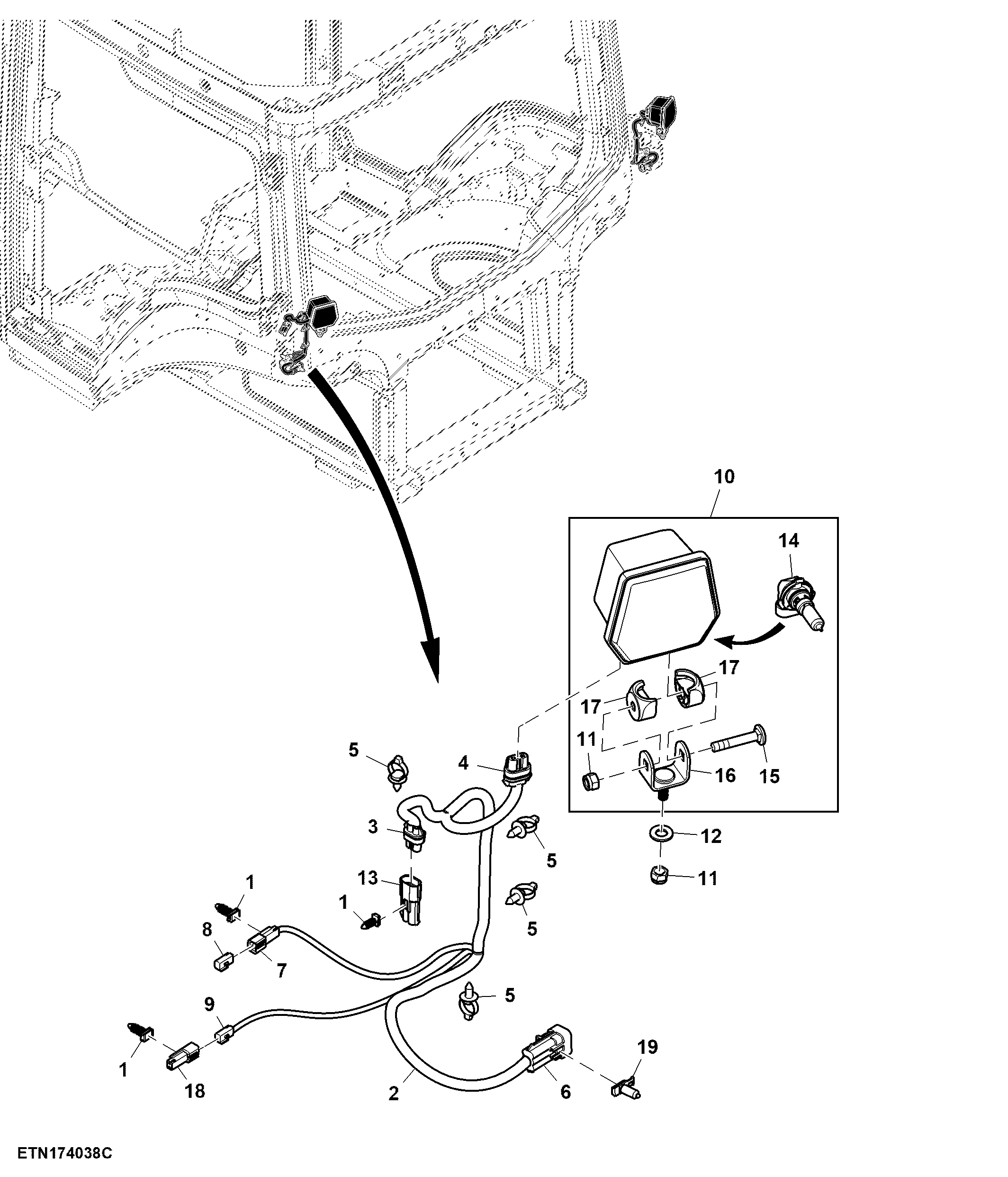

Rear Fender Work Lights, 2 Halogen, LH Illustrated

Нет текстового описания
