Mirror, Power Telescoping, W/ LH Power Telescopic Mirror Arm, FT4/ Stage 5 Engine, Kit

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10477	1	Mirror Kit	-
2	RE586097	1	Support	LH
3	RE586098	1	Rear View Mirror	LH
4	R568711	4	Stud	-
5	RE587204	1	Support	RH
6	RE586099	1	Rear View Mirror	RH
7	14M7733	4	Lock Nut	M10
8	R566268	1	Cover	LH
9	R566269	1	Cover	RH
10	RE593605	1	Wiring Harness	Power Mirror
11	57M8205	1	Elec. Connector Housing	Left Power Mirror Interconnect, XX951
12	57M8205	1	Elec. Connector Housing	Right Power Mirror Interconnect, XX950
13	57M7254	1	Elec. Connector Housing	Inner Roof Harness To Dual Power Mirror Harness Interconnect, XX174-2
13	57M9712	1	Elec. Connector Accessory	-
13	RWA11083	1	Repair Wire Assembly	Cavity A, B
14	RWA11110	1	Repair Wire Assembly	Cavity A2, A3, A4, B1, B2, B3, B4
14	57M9078	1	Elec. Connector Housing	Power Mirror Adjust Switch, S307
15	57M7896	1	Electrical Connector Assy	Heat Switch, S306
15	57M7429	3	Elec. Connector Terminal	Cavity U, Y, Z
16	57M9078	1	Elec. Connector Housing	Heat and Extend Option, S308
16	RWA11110	1	Repair Wire Assembly	Cavity A2, A3, A4, B1, B2
17	57M10362	7	Clamp	-
18	57M9229	6	Clip	-
19	RE236245	2	Switch	Power Mirror
20	AL181124	1	Toggle/Rocker Switch	Heatable Mirror
21	R565338	2	Bracket	-
22	R564042	4	Screw	-
23	R567862	1	Plate	-
24	RE590754	2	Rear View Mirror Glass	-
25	RE590756	1	Rear View Mirror Glass	-
26	R568892	4	Half Clamp	-
27	R569132	4	Screw	-
28	RE590757	1	Rear View Mirror Glass	-

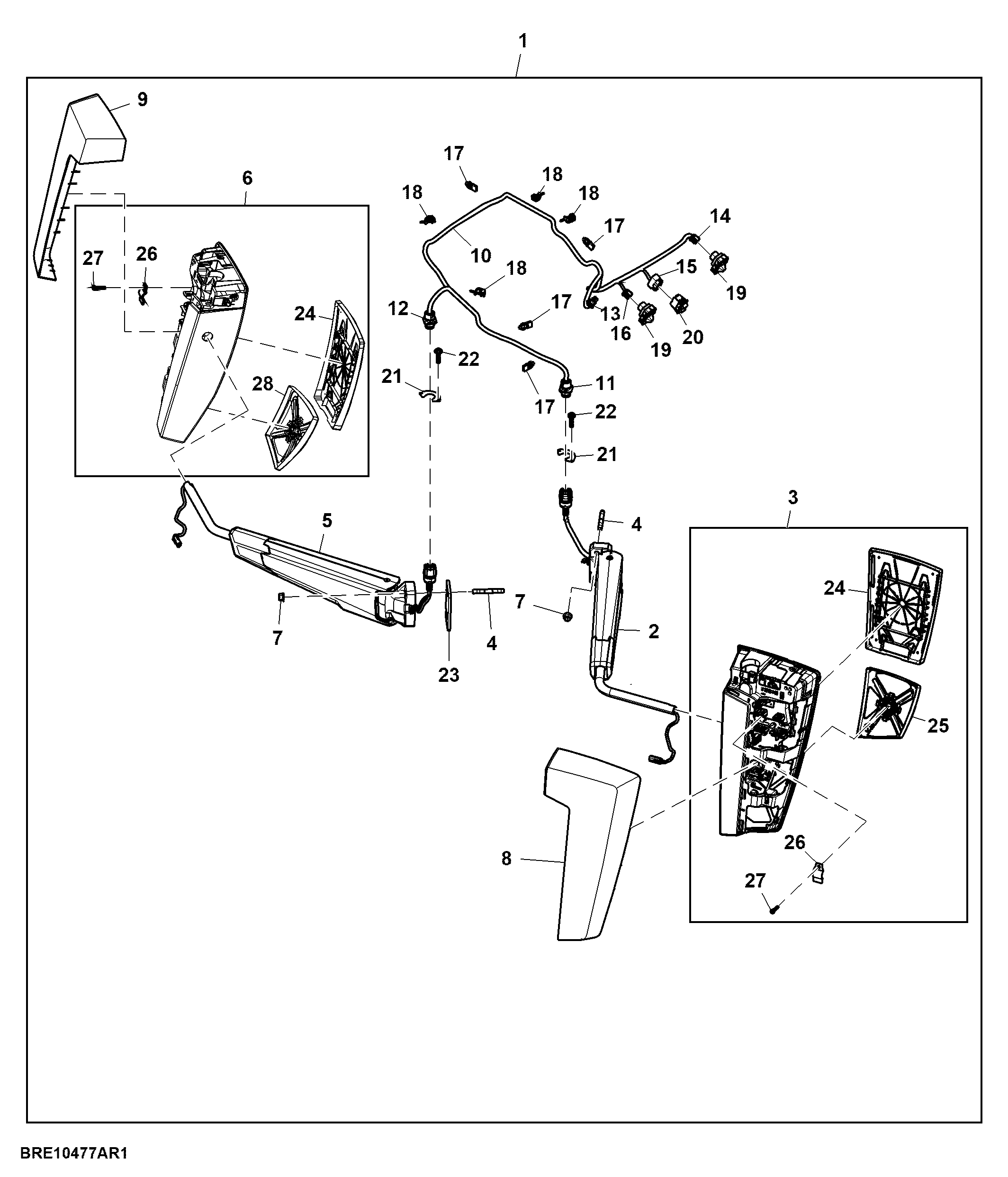

Mirror, Power Telescoping, W/ LH Power Telescopic Mirror Arm, FT4/ Stage 5 Engine, Kit
