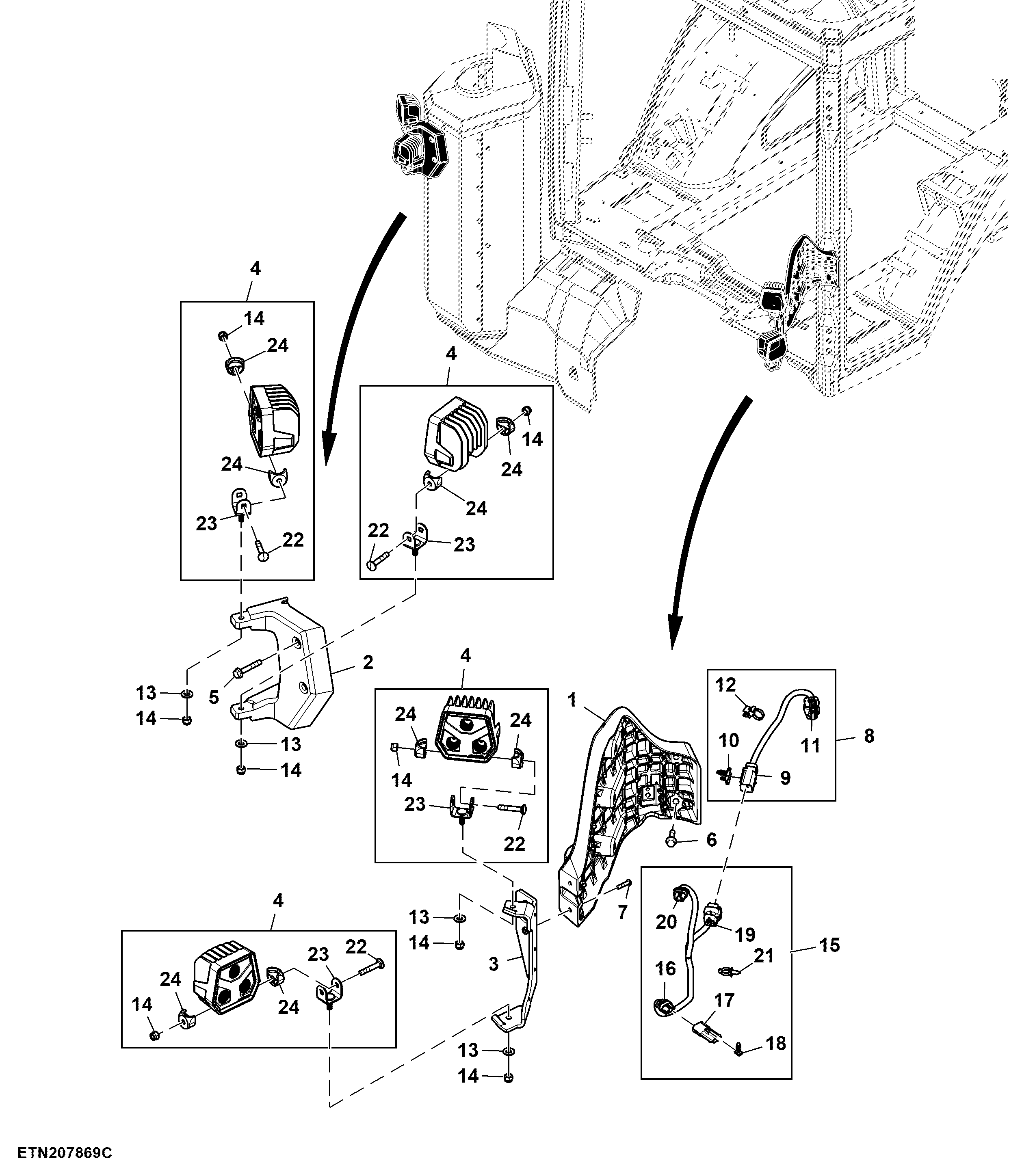

Front Midbody Flood Lights, 4 LED, W/ Midbody Marker Lights, 9.0 L FT4/Stage 5 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TR106207	1	Bracket	-
2	R566195	1	Bracket	Midbody light
3	TA11271	1	Bracket	Worklight, LH
4	RE593795	4	Floodlamp	LED Pedestal Mount
5	19M10964	2	Screw	M8 X 50
6	19M10655	2	Screw	M8 X 30
7	19M10645	2	Screw	M6 X 25
8	TA13424	1	Wiring Harness	Left Midbody Lights, Jumper to Bracket
9	57M9789	1	Elec. Connector Housing	Jumper To Midbody Lights Interconnect, XX172-4
9	RWA11025	1	Repair Wire Assembly	Cavity 1,2,3,4,5
10	57M9940	1	Elec. Connector Accessory	-
11	57M9786	1	Elec. Connector Housing	Jumper To Roof Harness Interconnect, XX172-3
11	RWA11029	1	Repair Wire Assembly	Cavity 1,2,3,4,5
12	AH225364	1	Clip	-
13	24M7271	4	Washer	10.500 X 20 X 2 mm
14	14M7847	8	Lock Nut	M8
15	TA13313	1	Wiring Harness	Left Midbody Lights, W/ Position Lights
16	57M8839	1	Elec. Connector Housing	Worklight Beltline Outer Left, E226
16	57M8129	1	Elec. Connector Terminal	-
16	RWA11089	1	Repair Wire Assembly	Cavity A, B
17	57M8958	1	Elec. Connector Housing	-
18	57M9555	1	Clip	-
19	57M9786	1	Elec. Connector Housing	Left Midbody Lights to Roof Interconnect, XX172-2
19	RWA11029	1	Repair Wire Assembly	Cavity 1,4,5
20	57M8839	1	Elec. Connector Housing	Worklight Beltline Inner Left, E129
20	57M8129	1	Elec. Connector Terminal	-
20	RWA11089	1	Repair Wire Assembly	Cavity A, B
21	RE258807	3	Tie Band	-
22	03M7369	4	Bolt	M8 X 45
23	R571006	4	Mounting Parts	-
24	R571007	8	Mounting Parts	-

Front Midbody Flood Lights, 4 LED, W/ Midbody Marker Lights, 9.0 L FT4/Stage 5 Engine
