Front Hitch Lines, W/ TLS™, W/ Single Front Auxiliary Coupler, W/ Fuel Water Separator and Pickup Hitch, W/ Front PTO

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F122159	2	Clamp	-
2	14M7298	4	Flange Nut	M8
3	RE582840	2	Hose	Front Hitch Cylinder
4	RE582838	1	Line	Front Hitch SCV1 Extend
5	RE582835	1	Line	Front Hitch SCV1 Retract, INCLUDES (2) T77857
6	RE582843	2	Hose	Front Hitch Cylinder
7	RE582839	1	Line	Front Hitch Cylinder Return, INCLUDES (2) T77857
8	RE582836	1	Line	Front Hitch Cylinder Supply
9	R559037	1	Plate	-
10	R309230	1	Bracket	-
11	R120797	4	Snap Ring	-
12	19M7783	4	Screw	M10 X 16
13	R557995	1	Bracket	-
14	RE567296	1	Cover	Retract Coupler, Black
15	RE307714	2	Hyd. Quick-Connect Coupler	-
16	RE581389	1	Hydraulic Hose	Front Hitch Cylinder Return
17	R49921	1	Clamp	-
18	R309231	1	Bracket	-
19	RE581387	1	Hydraulic Hose	Front Hitch Cylinder Upper
20	T167759	2	Stud	-
21	RE567295	1	Cover	Extend Coupler, Black
22	19M7866	2	Screw	M8 X 20
23	RE316445	1	Hose	Front Hitch SCV1 Extend
24	RE316444	1	Hose	Front Hitch SCV1 Retract
25	RE581390	1	Hydraulic Hose	Front Hitch Cylinder Supply
26	RE581388	1	Hydraulic Hose	Front Hitch Cylinder Lower
27	38H5092	4	Nut	13/16"
28	19M7865	3	Screw	M8 X 16
29	38H5026	4	Elbow Fitting	-
30	51M7043	4	O-Ring	15.300 X 2.200 mm
31	T77613	6	O-Ring	-
32	T77857	8	O-Ring	-

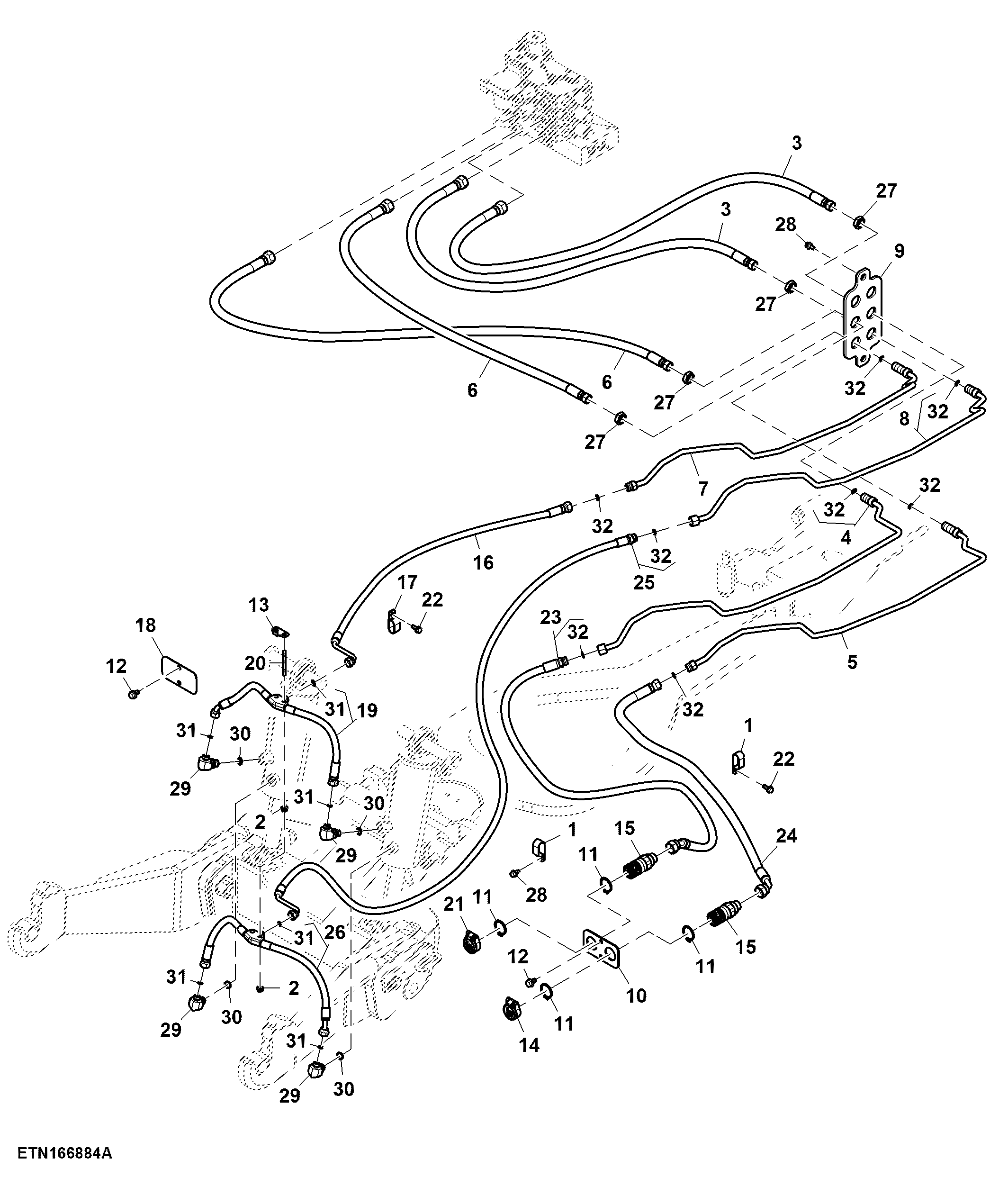

Front Hitch Lines, W/ TLS™, W/ Single Front Auxiliary Coupler, W/ Fuel Water Separator and Pickup Hitch, W/ Front PTO
