Front Bundle, Oil Lines, FT4/ Stage 5, 9.0L Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R343329	2	Clamp	-
2	TA15160	1	Line	Receiver Drier to Cab, ORDER TA18877
2	TA18877	1	Line	Receiver Drier to Cab
3	TA15163	1	Line	Cab To Compressor
4	RE573310	1	Line	Coolant Return
5	TA15159	1	Line	Cooler To Transmission
6	TA15162	1	Line	Transmission To Cooler
7	TR113131	1	Fuel Line	Fuel Return To Tank
8	TA15459	1	Bracket	-
9	TA15180	1	Bracket	-
10	R540944	2	Cap Screw	-
11	TA11134	1	Bracket	-
12	H115379	4	Clamp	-
13	H128515	12	Clamp	-
14	19M7800	2	Screw	M8 X 50
15	19M7868	6	Screw	M8 X 30
16	R540375	1	Fuel Hose	Fuel Cooler Return
17	R202160	2	Clamp	-
18	T24959	1	Clamp	-
19	19M7866	3	Screw	M8 X 20
20	L39905	2	Clamp	-
21	19M7863	1	Screw	M6 X 25
22	14M7272	1	Nut	M6
23	TA15461	1	Battery Cable	INCLUDES (5) R213663 AND RE258807
24	R213663	5	Clamp	-
25	RE258807	1	Tie Band	-
26	R557939	1	Clamp	-
27	19M8006	1	Screw	M8 X 120
28	19M7803	1	Screw	M8 X 70
29	14M7298	2	Flange Nut	M8
30	RE590661	1	Line	AC from Condenser
31	T77613	1	O-Ring	-
32	RE588761	1	Line	AC to Condenser
33	RE573747	1	Line	Fuel To Tank
34	R540224	1	Line	Fuel To Cooler
35	RE588759	1	Bracket	-
36	RE588760	1	Bracket	-
37	R540439	1	Clamp	-
38	R540438	1	Clamp	-
39	TR116225	1	Clamp	SUB FOR R545748
40	19M8040	1	Screw	M6 X 60
41	14M7303	1	Flange Nut	M6
42	57M12141	1	Clamp	-
43	19M7864	1	Screw	M8 X 12
44	19M7784	4	Screw	M10 X 20
45	19M7865	4	Screw	M8 X 16
46	57M10842	1	Clamp	-
47	R183409	1	O-Ring	-
48	R183410	1	O-Ring	-
49	R114103	2	Clamp	-
50	R517485	1	Stud	-
51	R567091	1	Sealing Washer	-
52	R567094	1	Sealing Washer	-
53	57M13309	1	Clamp	-

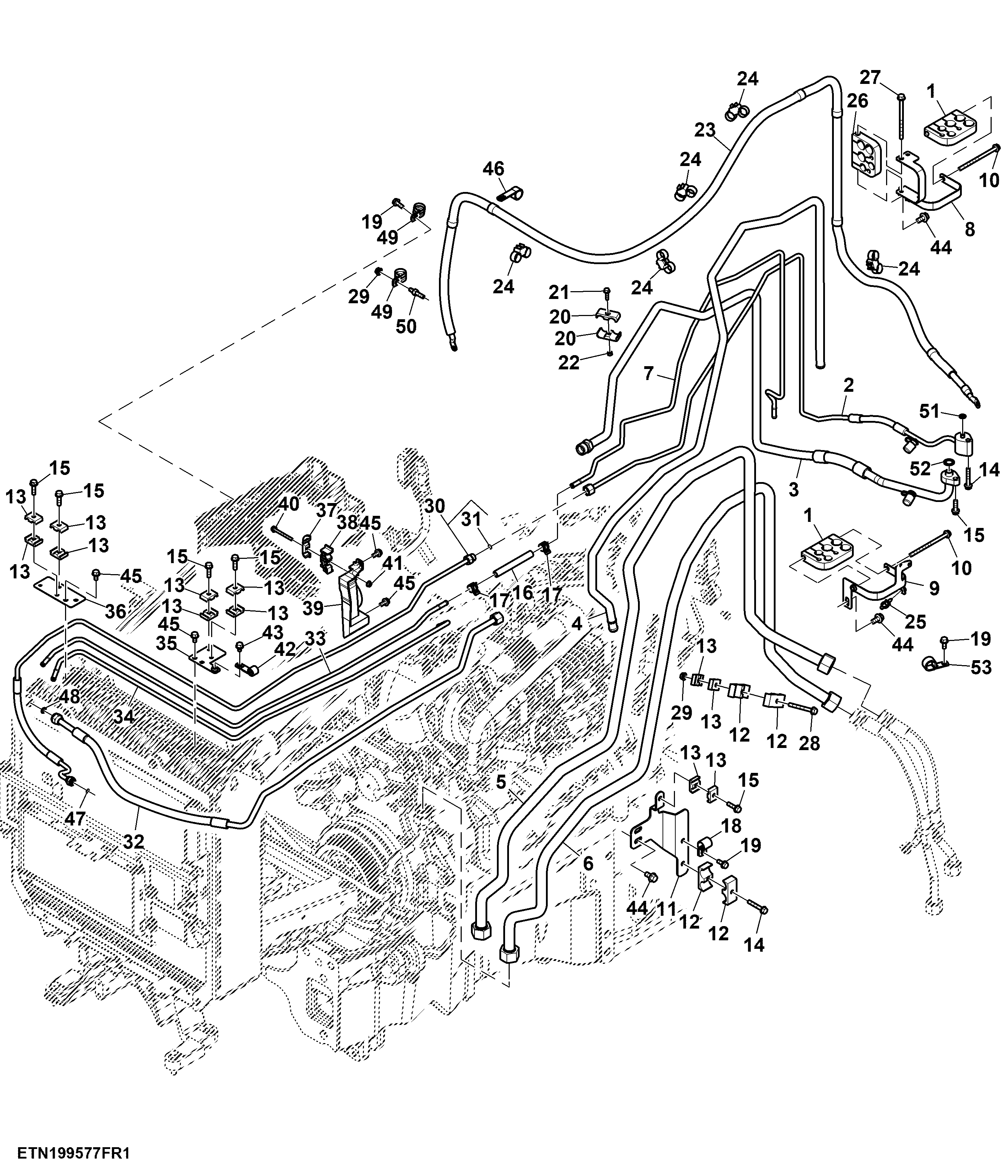

Front Bundle, Oil Lines, FT4/ Stage 5, 9.0L Engine
