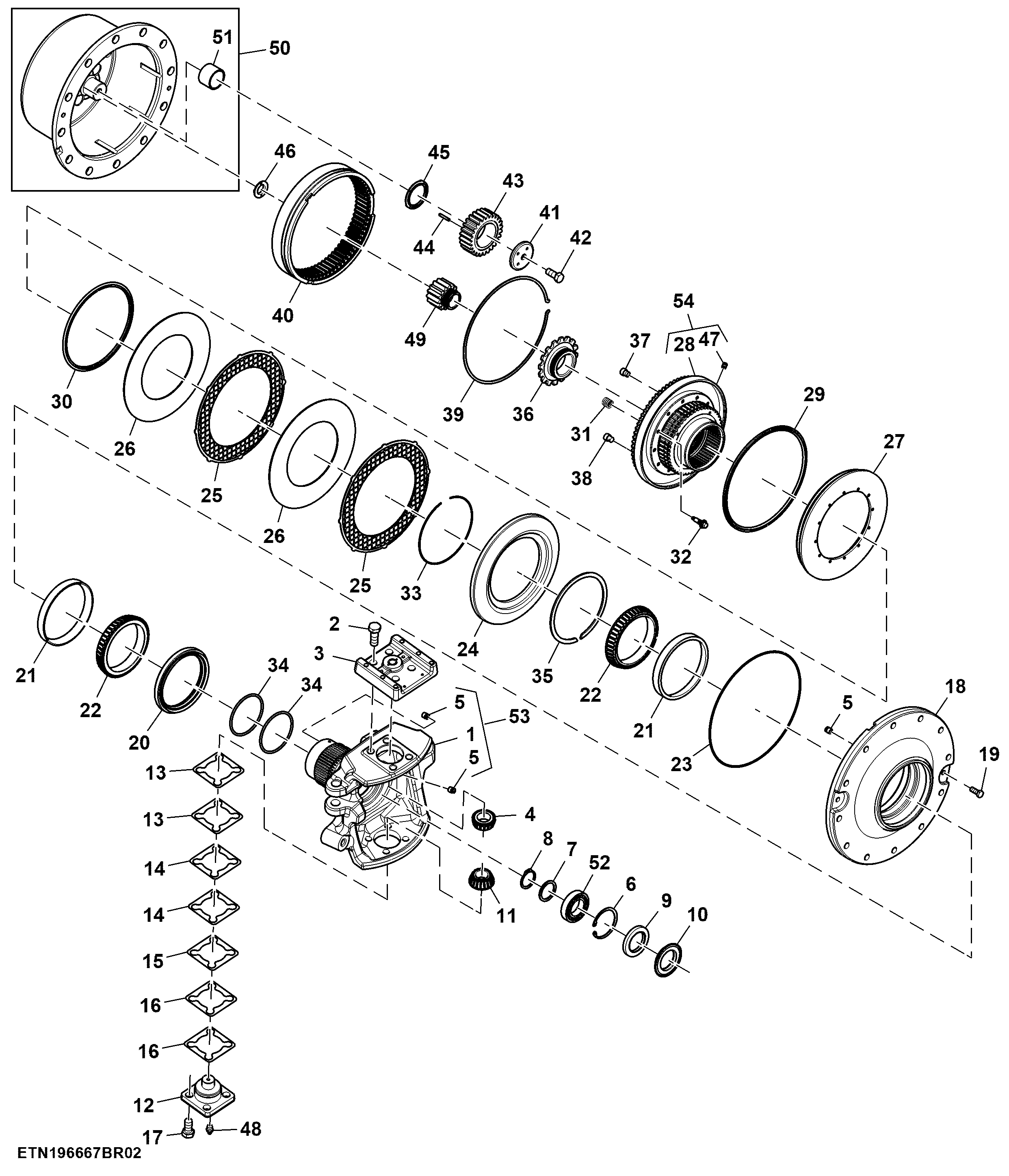

Final Drive Assembly, Front Axle, Heavy Duty, W/ Brake (LH Illustrated)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R301661	1	Knuckle	RH, ORDER RE592905
1	R301657	1	Knuckle	LH, ORDER RE592904
2	19M8002	8	Cap Screw	M20 X 55
3	R558837	2	Kingpin	-
4	JD8968	2	Bearing Cone	-
5	AT107509	4	Plug	-
6	40M1873	2	Snap Ring	-
7	R250848	2	Washer	-
8	40M7302	2	Snap Ring	-
9	RE65591	2	Seal	-
10	RE193099	2	Seal	-
11	JD8930	2	Bearing Cone	-
12	R135861	2	Kingpin	-
13	R131673	1	Shim	TK = 0.13 mm
14	R131675	1	Shim	TK = 0.25 mm
15	R131676	1	Shim	TK = 1.00 mm
16	R131985	1	Shim	TK = 0.08 mm
17	19M7946	8	Cap Screw	M20 X 40
18	R135866	2	Hub	-
19	19M8011	4	Cap Screw	M12 X 30
20	RE154869	2	Seal	-
21	JD9115	4	Bearing Cup	-
22	JD9050	4	Bearing Cone	-
23	R87047	2	Ring	-
24	R187527	2	Plate	-
25	RE292444	4	Brake Disk	-
26	R187530	4	Plate	-
27	R187517	2	Piston	-
28	R310521	2	Hub	ORDER RE592906
29	RE575038	2	Seal	-
30	RE575037	2	Seal	-
31	R187538	24	Compression Spring	-
32	RE576472	24	Screw With Washer	-
33	R209626	2	Snap Ring	-
34	R187513	4	O-Ring	-
35	R187533	2	Snap Ring	-
36	R560689	2	Nut	-
37	R91842	2	Screw	-
38	R218924	2	Drain Plug	-
39	R195492	2	Snap Ring	-
40	R554714	2	Ring Gear	Z = 70
41	R92871	8	Retainer	-
42	R112888	8	Cap Screw	-
43	R228144	8	Planet Pinion	Z = 26
44	R121283	264	Needle Roller	-
45	R332855	8	Thrust Washer	-
46	R539188	2	Thrust Washer	-
47	AT107510	2	Plug	-
48	JD7759	2	Lubrication Fitting	-
49	R542093	2	Pinion	Z = 14
50	TA10005	2	Planet Pinion Carrier	INCLUDES (4) R121362
51	R121362	8	Bearing Race	-
52	JD9346	2	Ball Bearing	-
53	RE592904	1	Knuckle	LH, INCLUDES (2) AT107509
53	RE592905	1	Knuckle	RH, INCLUDES (2) AT107509
54	RE592906	1	Hub	INCLUDES AT107510

Final Drive Assembly, Front Axle, Heavy Duty, W/ Brake (LH Illustrated)
