Открытый узел

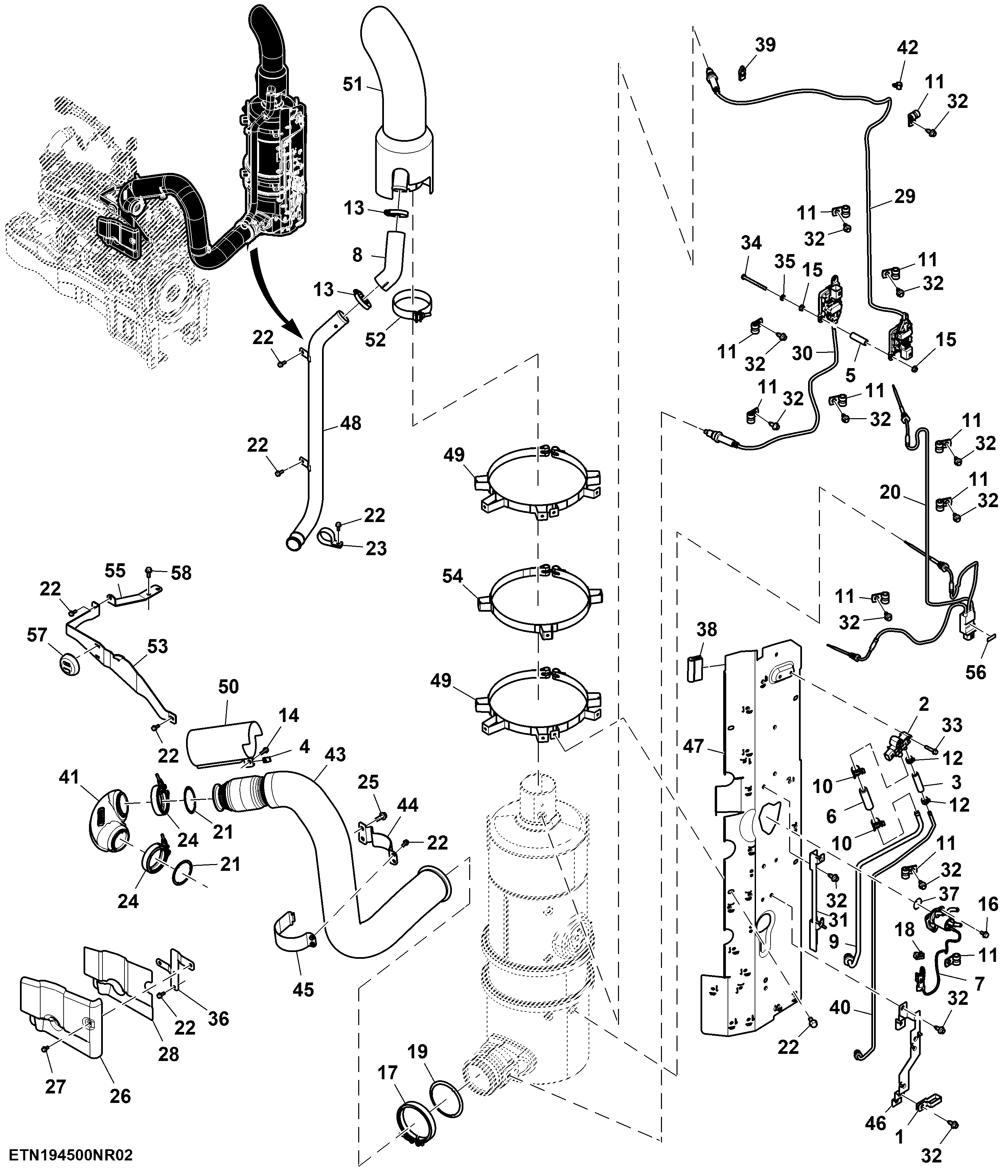

Exhaust System, 9.0 L, FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R313267	1	Clamp	-
2	RE546719	1	Pressure Sensor	Delta Pressure
3	R344090	1	Hose	Delta Pressure, DOC/ DPF
4	M157364	1	Nut	-
5	28H3419	2	Spacer	0.364" X 0.540" X 1-3/4"
6	R344091	1	Hose	Delta Pressure
7	DZ104791	1	DEF Dosing Injector	INCLUDES DZ112819
8	R561026	1	Hose	Aspirator Rubber Jump to Outlet
9	RE587612	1	Line	Pressure Line Post DPF, ORDER RE597005
9	RE597005	1	Line	Pressure Line Post DPF
10	R202160	2	Clamp	-
11	T269643	25	Clamp	ORDER TR118908
11	TR118908	23	Clamp	-
12	R56101	2	Clip	-
13	AL170672	2	Clamp	-
14	19M7800	1	Screw	M8 X 50
15	14M7636	4	Flange Nut	M6
16	19M10881	3	Screw	M6 X 12
17	RE540348	1	Clamp	-
18	DZ113102	1	Clip	-
19	R529640	1	Gasket	-
20	DZ113087	1	Temperature Sensor	LGTH = 300 mm, Diesel Oxidation Catalyst
20	DZ113087	1	Temperature Sensor	LGTH = 300 mm, Diesel Particulate Filter
20	DZ113087	1	Temperature Sensor	LGTH = 730 mm, Selective Catalytic Reduction
20	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Oxidation Catalyst
20	DZ123016	1	Temperature Sensor	LGTH = 300 mm, Diesel Particulate Filter
20	DZ123016	1	Temperature Sensor	LGTH = 730 mm, Selective Catalytic Reduction
21	R538777	2	Gasket	-
22	19M7866	13	Screw	M8 X 20
23	T162937	1	Clamp	-
24	RE289839	2	Clamp	-
25	19M7789	2	Screw	M12 X 30
26	R560239	1	Heat Shield	LH Rear
27	19M7865	2	Screw	M8 X 16
28	R555859	1	Heat Shield	LH Rear Heat Shield Foil
29	DZ110621	1	Chemical Sensor	LGTH = 915 mm, NOX
30	DZ112080	1	Chemical Sensor	LGTH = 615 mm, NOX
31	R567559	1	Bracket	Lower Sensor Standoff
32	GX22456	27	Screw	-
33	37M7104	2	Screw	M6 X 30
34	19M8849	2	Cap Screw	M6 X 70
35	R136003	2	Washer	-
36	TA11388	1	Bracket	ORDER TA20000
36	TA20000	1	Bracket	-
37	DZ112819	1	Gasket	-
38	R571893	1	Seal	-
39	57M10362	1	Clamp	-
40	RE593694	1	Line	Pressure Line Pre DPF, ORDER RE597003
40	RE597003	1	Line	Pressure Line Pre DPF
41	RE593826	1	Exhaust Pipe	Turbo Outlet
42	L156248	1	Clamp	-
43	TA13150	1	Exhaust Pipe	-
44	TR109697	1	Clamp	-
45	TA13151	1	Clamp	-
46	R569037	1	Bracket	ORDER R572642
46	R572642	1	Bracket	-
47	RE596674	1	Heat Shield	Sensor Mount Plate
48	R569659	1	Tube	Aspirator Tube, ORDER R572593
48	R572593	1	Tube	Aspirator Tube
49	RE595985	2	Clamp	-
50	RE594445	1	Heat Shield	Outlet Bellows
51	RE594855	1	Exhaust Pipe	Exhaust Pipe, Engine, INCLUDES RE567361
52	RE567361	1	Clamp	-
53	TR113432	1	Bracket	-
54	RE595986	1	Clamp	-
55	RE562354	1	Bracket	-
56	R313276	1	Insulator	-
57	R555082	1	Guide	-
58	19M7785	2	Screw	M10 X 25

Exhaust System, 9.0 L, FT4/ Stage 5 Engine
