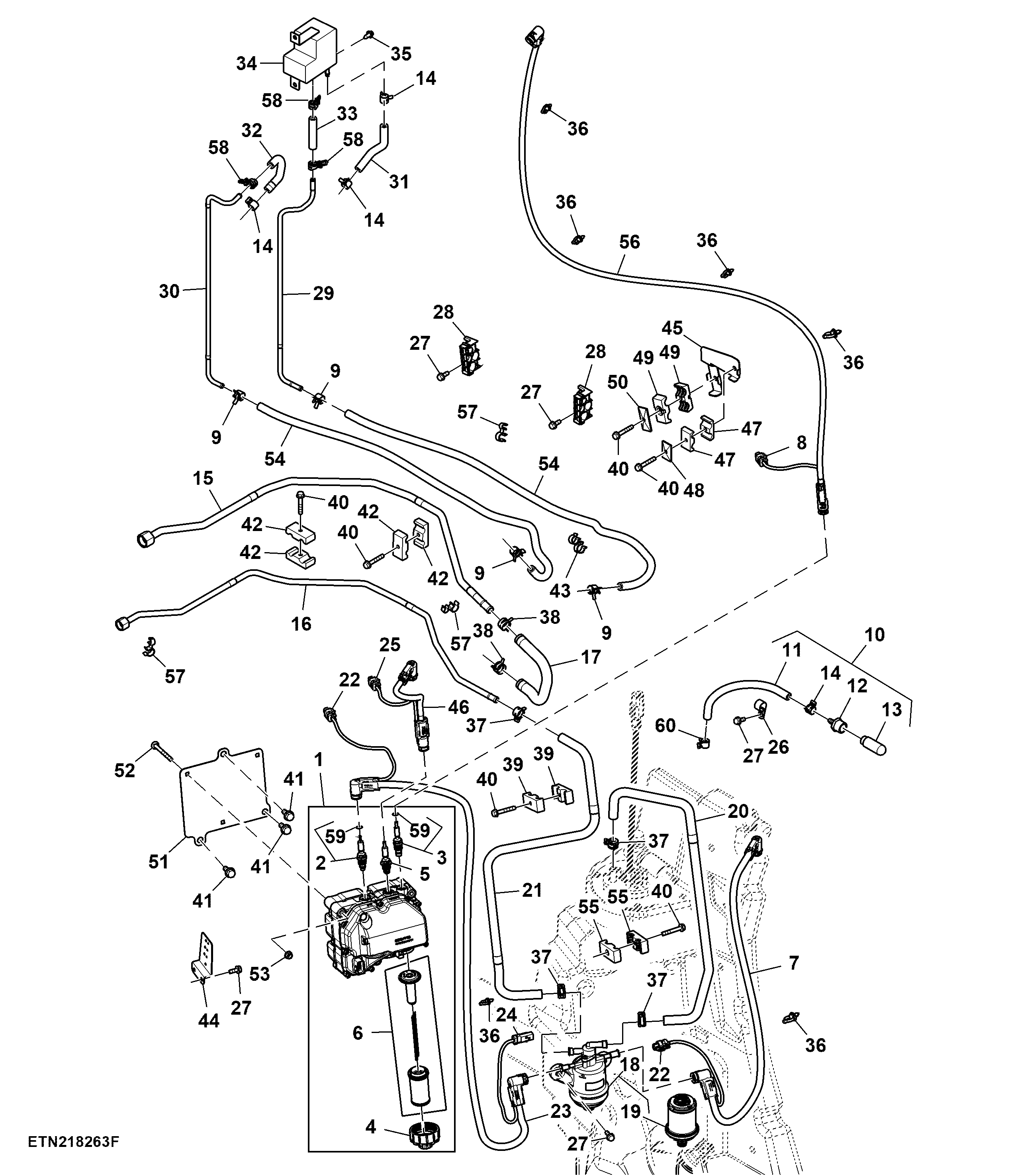

DEF Lines and Pump, 9 L, FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ121774	1	DEF Dosing Unit Pump	SUB FOR DZ104778
2	RE549603	1	Adapter Fitting	-
3	RE549604	1	Adapter Fitting	-
4	RE555351	1	Cap	-
5	DZ113071	1	Adapter Fitting	-
6	DZ114640	1	Filter Kit	DEF Supply Module Filter
7	DZ117576	1	DEF Line	Suction, INCLUDES 57M9772
8	57M9773	1	Elec. Connector Housing	-
9	R251581	4	Clamp	-
10	TA12595	1	Hose	DEF Vent and Filter
11	TR108920	1	Hose	DEF Vent
12	H216170	1	Fitting	-
13	H216169	1	Breather	-
14	R202160	8	Clamp	USE WITH DZ104778
14	R202160	3	Clamp	USE WITH DZ121774
15	TA13158	1	Line	Coolant Supply
16	TA13159	1	Line	Coolant Return
17	TR109706	1	Hose	Coolant Supply To DEF Header
18	DZ118548	1	Filter	DEF Inline Filter Assembly
18	DZ124402	1	Filter	SUB FOR DZ118548
19	DZ110513	1	Filter Kit	DEF Inline Filter
19	DZ124403	1	Filter Kit	SUB FOR DZ110513
20	TR109704	1	Hose	Inline Filter To Header
21	TR109705	1	Hose	DEF Tank Coolant From Inline Filter
22	57M9772	2	Elec. Connector Housing	-
23	DZ117577	1	DEF Line	Suction Jumper, INCLUDES 57M9772 AND 57M9776
24	57M9776	1	Elec. Connector Housing	-
25	57M9774	1	Elec. Connector Housing	-
26	57M9856	1	Clamp	-
27	19M7866	9	Screw	M8 X 20
28	R569234	2	Clamp	-
29	R569128	1	Line	Doser Coolant Supply
30	R569127	1	Line	Doser Coolant Return
31	R568619	1	Hose	Doser To Coolant Bottle
32	R568618	1	Hose	DEF Doser Coolant Supply
33	R564906	1	Hose	DEF Doser Coolant Return
34	RE594586	1	Reservoir	-
35	19M10365	2	Screw	M8 X 20
36	RE258807	9	Tie Band	-
37	R184863	4	Hose Clamp	-
38	T184924	2	Hose Clamp	-
39	H150983	2	Clamp	-
40	19M8319	6	Screw	M8 X 50
41	19M8331	3	Screw	M8 X 20
42	H141706	4	Clamp	-
43	R215302	1	Clip	-
44	TR109913	1	Bracket	-
45	TA14235	1	Bracket	-
46	DZ117575	1	DEF Line	Back Flow, INCLUDES 57M9774
47	H120847	2	Clamp	-
48	H121168	1	Plate	-
49	H135155	2	Clamp	-
50	H112567	1	Plate	-
51	TR106966	1	Plate	-
52	03M7295	3	Bolt	M8 X 90
53	14M7298	3	Flange Nut	M8
54	TR105431	2	Hose	DEF Doser
55	Z81375	2	Block Clamp	-
56	DZ117573	1	DEF Line	DEF Line, Pressure, INCLUDES 57M9773
57	R232182	4	Clip	-
58	KK15513	3	Clamp	USE WITH DZ121774
59	51M7040	2	O-Ring	9.300 X 2.200 mm
60	M164585	1	Hose Clamp	-

DEF Lines and Pump, 9 L, FT4/ Stage 5 Engine

Нет текстового описания
